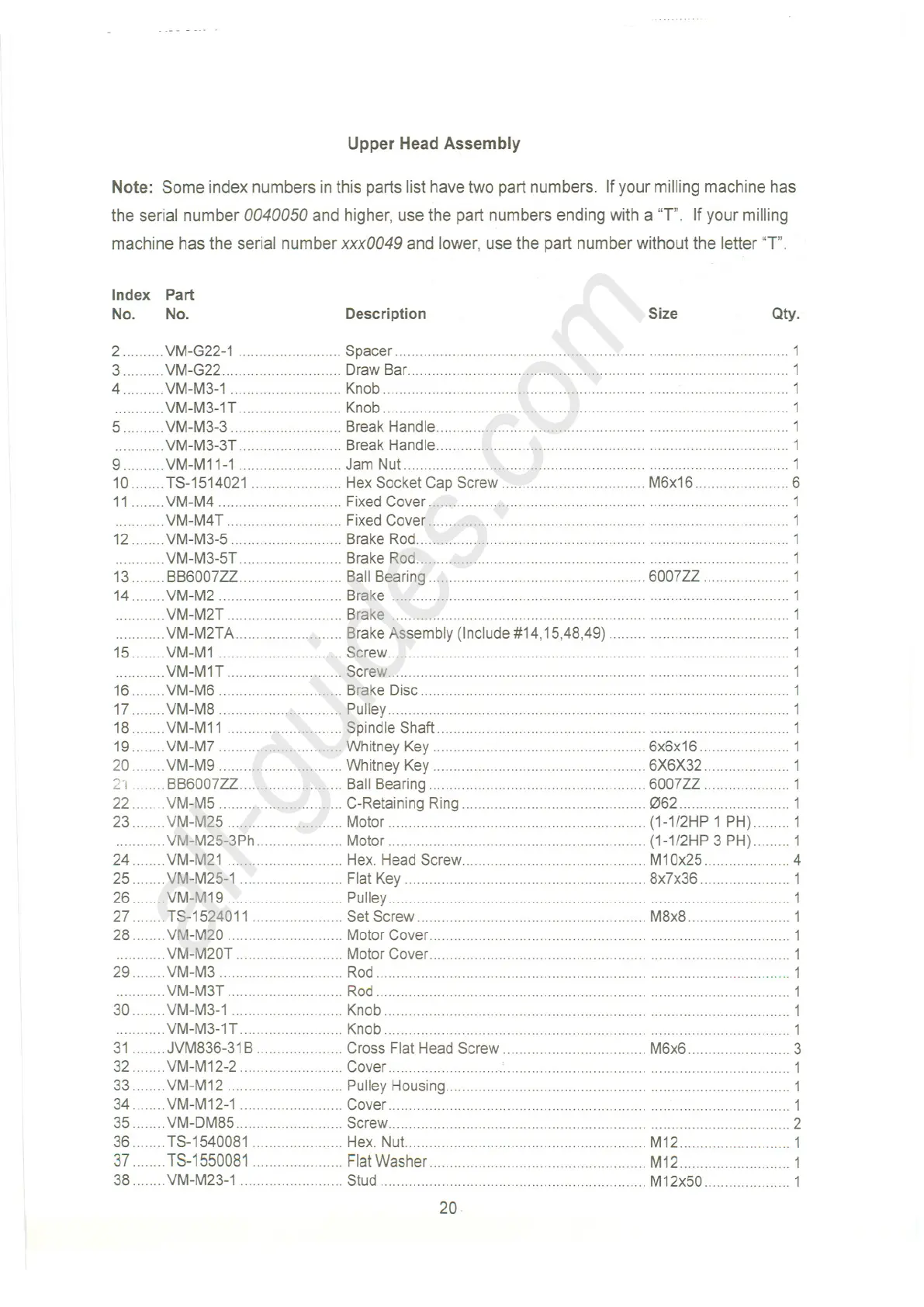

Upper Head Assembly
Note: Some index numbers in this parts list have two part numbers. If your milling machine has
the serial number 0040050 and higher, use the part numbers ending with a'T'. If your milling
machine has the serial number xxx0049 and lower, use the part number without the letter "1".
Index Part
No. No.
Description
Size
Qty.
2 VM-G22-1 Spacer 1
3 VM-G22 Draw Bar 1
4 VM-M3-1 Knob 1
VM-M3-1T Knob 1
5 VM-M3-3 Break Handle 1
VM-M3-3T Break Handle 1
9 VM-M11-1 Jam Nut 1
10 TS-1514021 Hex Socket Cap Screw M6x16 6
11 VM-M4 """"""""""'''''''''' Fixed Cover .., 1
VM-M4T Fixed Cover 1
12 VM-M3-5 Brake Rod 1
...VM-M3-5T... Brake Rod...... ... ... ............ ... ......... 1
13 BB6007ZZ Ball Bearing 6007ZZ 1
14 VM-M2 Brake 1
VM-M2T Brake 1
VM-M2TA Brake Assembly (Include#14,15,48,49) 1
15 VM-M1 . Screw 1
VM-M1T .., Screw 1
16 VM-M6 Brake Disc 1
17 VM-M8 Pulley............. ... ...... ... ... .... ...... ... 1
18 VM-M11 Spindle Shaft 1
19 VM-M7 Whitney Key 6x6x16 1
20 VM-M9 Whitney Key 6X6X32 1
21 BB6007ZZ Ball Bearing 6007ZZ 1
22 .VM-M5 C-Retaining Ring 062 1
23 VM-M25 Motor (1-1/2HP 1 PH) 1
VM-M25-3Ph Motor (1-1/2HP 3 PH) 1
24 VM-M21 """"'''''''''''''''''''' Hex. Head Screw M10x25 4
25 VM-M25-1 Flat Key 8x7x36 1
26 VM-M19 Pulley 1
27 TS-1524011 Set Screw M8x8 1
28 VM-M20 Motor Cover 1
VM-M20T MotorCover 1
29 VM-M3 Rod 1
VM-M3T Rod 1
30 VM-M3-1 Knob 1
VM-M3-1T Knob 1
31 JVM836-31B Cross Flat Head Screw M6x6 3
32 VM-M12-2 Cover ' 1
33 VM-M12 Pulley Housing 1
34 VM-M12-1 Cover 1
35 VM-DM85 Screw 2
36 TS-1540081 Hex. Nut M12 1
37 T8-1550081 FlatWasher M12 1
38 VM-M23-1 Stud M12x50 1
20
