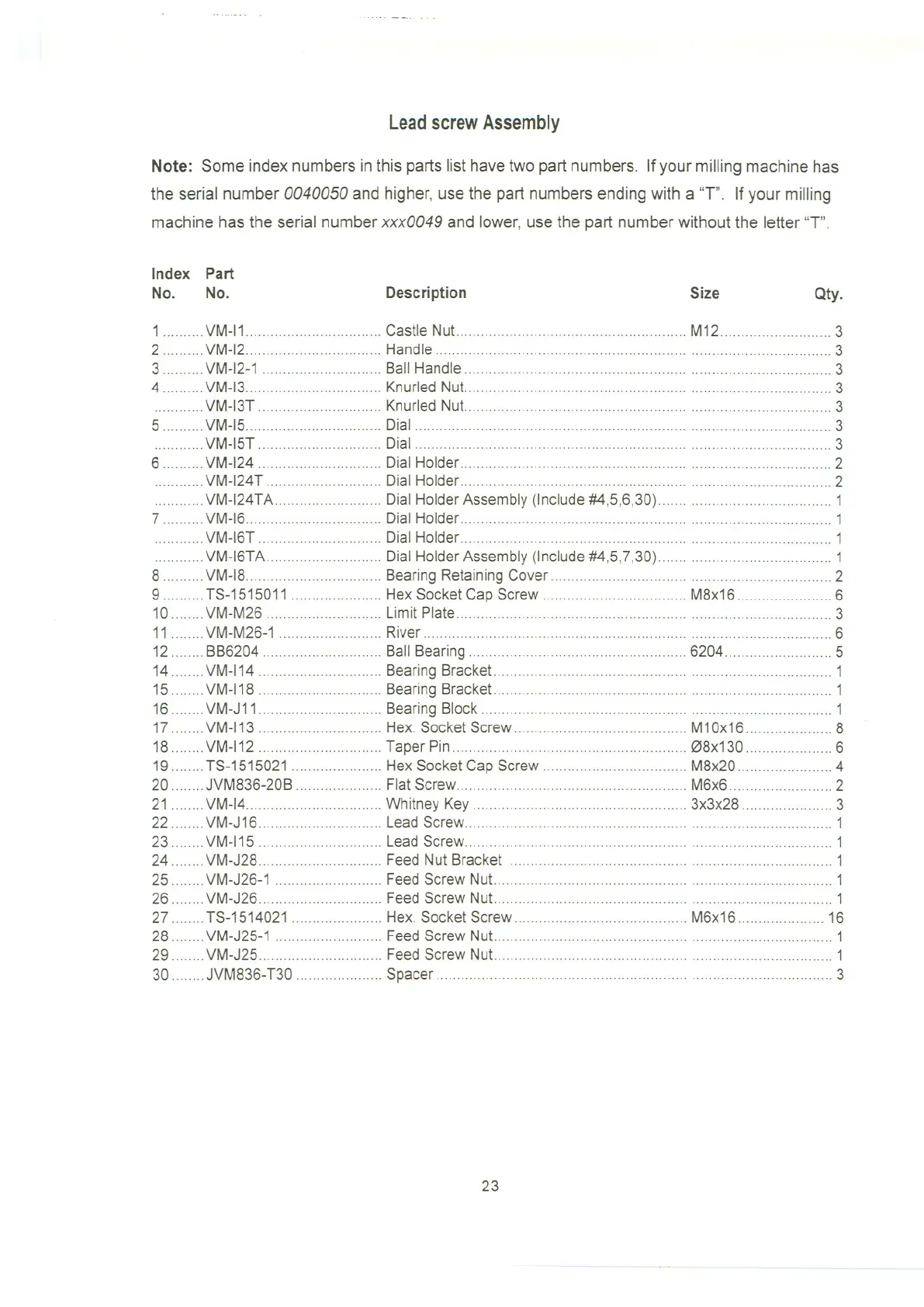

LeadscrewAssembly
Note: Some index numbers in this parts list have two part numbers. If your milling machine has
the serial number 0040050 and higher, use the part numbers ending with a'T'. If your milling
machine has the serial number xxx0049 and lower, use the part number without the letter "T".
Index Part
No. No.
Description
Size
Qty.
1 VM-11 ... Castle Nut.. M12... 3
2 VM-12 Handle 3
3 VM-12-1 Ball Handle"'''''''''''''''''''''''''''''''''''''''''''''''''''' 3
4 VM-13 Knurled Nut 3
VM-13T Knurled Nut 3
5. VM-15 ......... Dial... 3
VM-15T Dial 3
6 VM-124 Dial Holder 2
VM-124T Dial Holder 2
VM-124TA Dial HolderAssembly (Include#4,5,6,30) 1
7 VM-16. ... ... Dial Holder. ... ... ......... . ... ... 1
VM-16T Dial Holder 1
VM-16TA Dial HolderAssembly (Include#4,5,7,30) 1
8 VM-18 Bearing Retaining Cover 2
9 TS-1515011 Hex Socket Cap Screw M8x16 6
10 VM-M26 Limit Plate 3
11 VM-M26-1 River 6
12 BB6204 Ball Bearing 6204 5
14 VM-114 Bearing Bracket 1
15 VM-118 ......... Bearing Bracket ...... 1
16 VM-J11 Bearing Block 1
17 VM-113 Hex. Socket Screw M10x16 8
18 VM-112 Taper Pin 08x130 6
19 TS-1515021 Hex Socket Cap Screw M8x20 4
20 JVM836-20B Flat Screw M6x6 2
21 VM-14 Whitney Key 3x3x28 3
22 VM-J16 Lead Screw 1
23 VM-115 Lead Screw 1
24 VM-J28 Feed Nut Bracket 1
25 VM-J26-1 Feed Screw NuL 1
26 VM-J26 Feed Screw Nut 1
27 TS-1514021 Hex. Socket Screw M6x16 16
28 VM-J25-1 ........ Feed Screw Nut ... 1
29 VM-J25 Feed Screw Nut 1
30 JVM836-T30 Spacer "'''''''''''''''''''''''''''''''' 3
23
