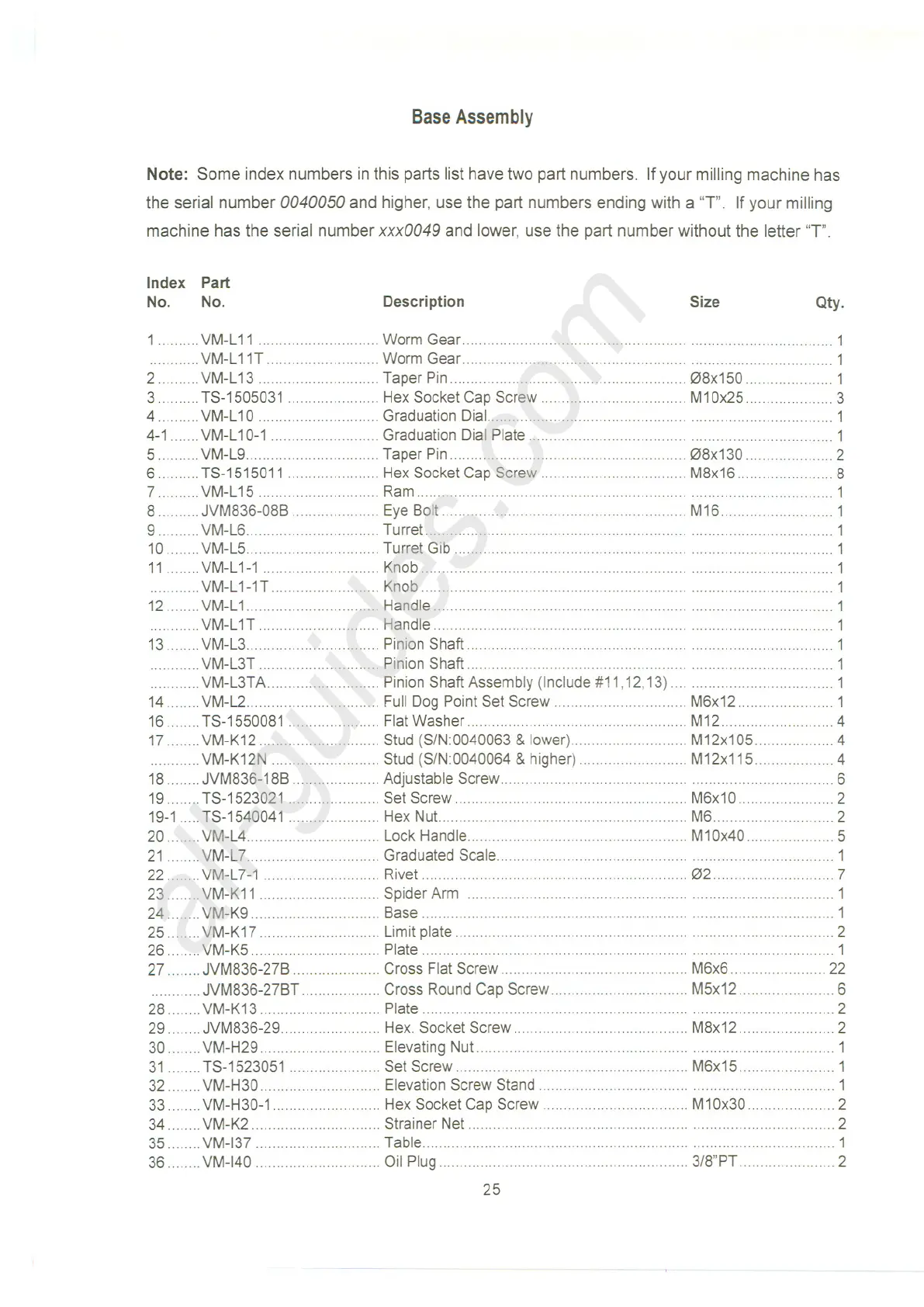

BaseAssembly
Note: Some index numbers in this parts list have two part numbers. If your milling machine has
the serial number 0040050 and higher, use the part numbers ending with a IT'. If your milling
machine has the serial number xxx0049 and lower, use the part number without the letter "T".
Index Part
No. No.
Description
Size
Qty.
1 VM-L11 Worm Gear 1
VM-L11T Worm Gear 1
2 VM-L13 Taper Pin 08x150 1
3 TS-1505031 Hex Socket Cap Screw M1Ox25 3
4 VM-L10 Graduation DiaL 1
4-1 VM-L10-1 Graduation Dial Plate 1
5 VM-L9 Taper Pin 08x130 2
6 TS-1515011 Hex Socket Cap Screw M8x16 8
7 VM-L15 Ram 1
8 JVM836-08B Eye Bolt M16 1
9 VM-L6 Turret 1
10 VM-L5 Turret Gib 1
11 VM-L1-1 Knob 1
VM-L 1-1T ... Knob. ... ... ... ......... ... ... . 1
12 VM-L1 Handle 1
VM-L1T Handle 1
13 VM-L3 PinionShaft 1
VM-L3T .. ... Pinion Shaft... ... ... 1
VM-L3TA PinionShaft Assembly (Include#11,12,13) 1
14 VM-L2 Full Dog Point Set Screw M6x12 1
16 TS-1550081 FlatWasher ... M12 4
17 VM-K12 Stud (S/N:0040063& lower) M12x105 4
VM-K12N Stud (S/N:0040064 & higher) M12x115 4
18 JVM836-18B Adjustable Screw 6
19 TS-1523021 Set Screw M6x10 2
19-1. TS-1540041 . Hex Nut.. ... ... M6 2
20 VM-L4 Lock Handle M1Ox40 5
21 VM-L7 GraduatedScale 1
22 VM-L7-1 Rivet 02 7
23 VM-K11 Spider Arm 1
24 VM-K9 Base 1
25 VM-K17 Limit plate 2
26 VM-K5 Plate 1
27 JVM836-27B Cross Flat Screw M6x6 22
JVM836-27BT Cross Round Cap Screw M5x12 6
28 VM-K13 Plate 2
29 JVM836-29 Hex. Socket Screw M8x12 2
30 VM-H29 Elevating Nut 1
31 TS-1523051 Set Screw M6x15 1
32 VM-H30 Elevation Screw Stand 1
33 VM-H30-1 HexSocket Cap Screw M10x30 2
34 VM-K2 Strainer Net 2
35 VM-137 Table...... ... 1
36 VM-140 Oil Plug 3/8"PT 2
25
