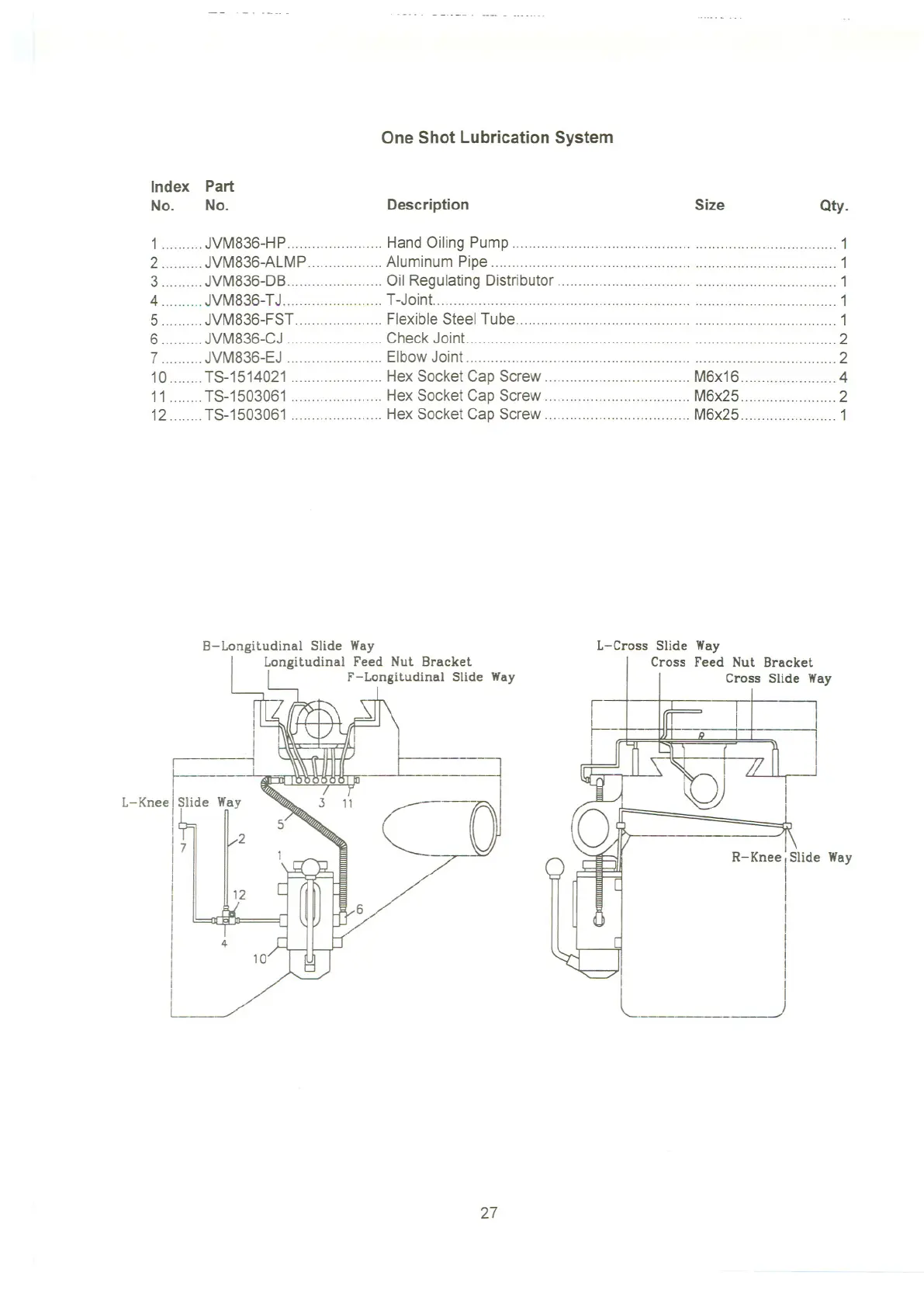

One Shot Lubrication System
Index Part
No. No.
Description
Size
Qty.
1 JVM836-HP Hand Oiling Pump 1
2 JVM836-ALMP Aluminum Pipe 1
3 JVM836-DB Oil Regulating Distributor 1
4 JVM836-TJ T-Joint 1
5 JVM836-FST FlexibleSteel Tube 1
6 JVM836-CJ Check Joint 2
7 ..., JVM836-EJ ElbowJoint 2
10 TS-1514021 HexSocket Cap Screw M6x16 4
11 TS-1503061 Hex Socket Cap Screw M6x25 2
12 TS-1503061 Hex Socket Cap Screw M6x25 1
B-Longitudinal Slide Way
Longitudinal Feed Nut Bracket
F-Longitudinal Slide Way
I
1
I
, ,
L-Knee' Slide ~ay
I'
I
1
17
I
I
I
I
I
I
1
I
I
I
I
I
I
I
L-
27
L-Cross Slide Way
Cross Feed Nut Bracket
Cross Slide Way
L
I .
R-Knee ,Shde Way
1
I
I
i
I
I
I
I
I
)
To Next Page
