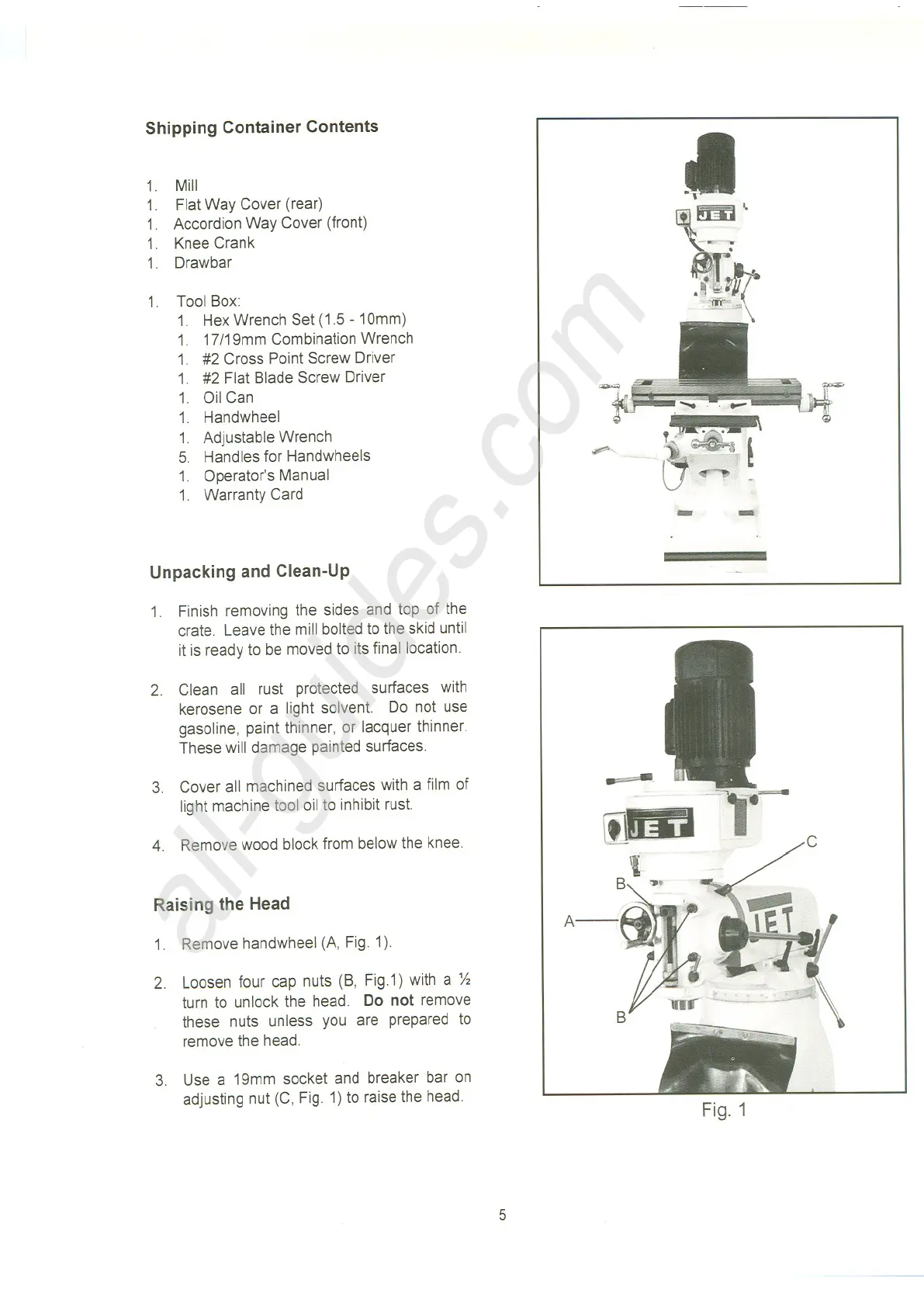

Shipping Container Contents
1. Mill
1. FlatWay Cover (rear)
1. Accordion Way Cover (front)
1. Knee Crank
1. Drawbar
1. Tool Box:
1. Hex Wrench Set (1.5 -10mm)
1. 17/19mm Combination Wrench
1. #2 Cross Point Screw Driver
1. #2 Flat Blade Screw Driver
1. Oil Can
1. Handwheel
1. Adjustable Wrench
5. Handles for Handwheels
1. Operator's Manual
1. Warranty Card
Unpacking and Clean-Up
1. Finish removing the sides and top of the
crate. Leave the mill bolted to the skid until
it is ready to be moved to its final location.
2. Clean all rust protected surfaces with
kerosene or a light solvent. Do not use
gasoline, paint thinner, or lacquer thinner.
These will damage paintedsurfaces.
3. Cover all machined surfaces with a film of
light machinetool oil to inhibit rust.
4. Removewood block from belowthe knee.
Raising the Head
1. Remove handwheel (A, Fig. 1).
2. Loosen four cap nuts (B, Fig.1) with a Y2
turn to unlock the head. Do not remove
these nuts unless you are prepared to
remove the head.
3. Use a 19mm socket and breaker bar on
adjusting nut (C, Fig. 1) to raise the head.
I
~..
~"
- -
A L
Fig.1
