MAIN BOARD INPUTS - CONTINUED
The Space Ballz input/output board utilizes 5 input IC's to control all inputs used within the game. In Space
Ballz, only three of the five IC's are used U08, U09, U10. The remaining two IC's U11 and U12 are not used
to control any input function. These two IC's can be used to replace the other IC's should they become
corrupt.

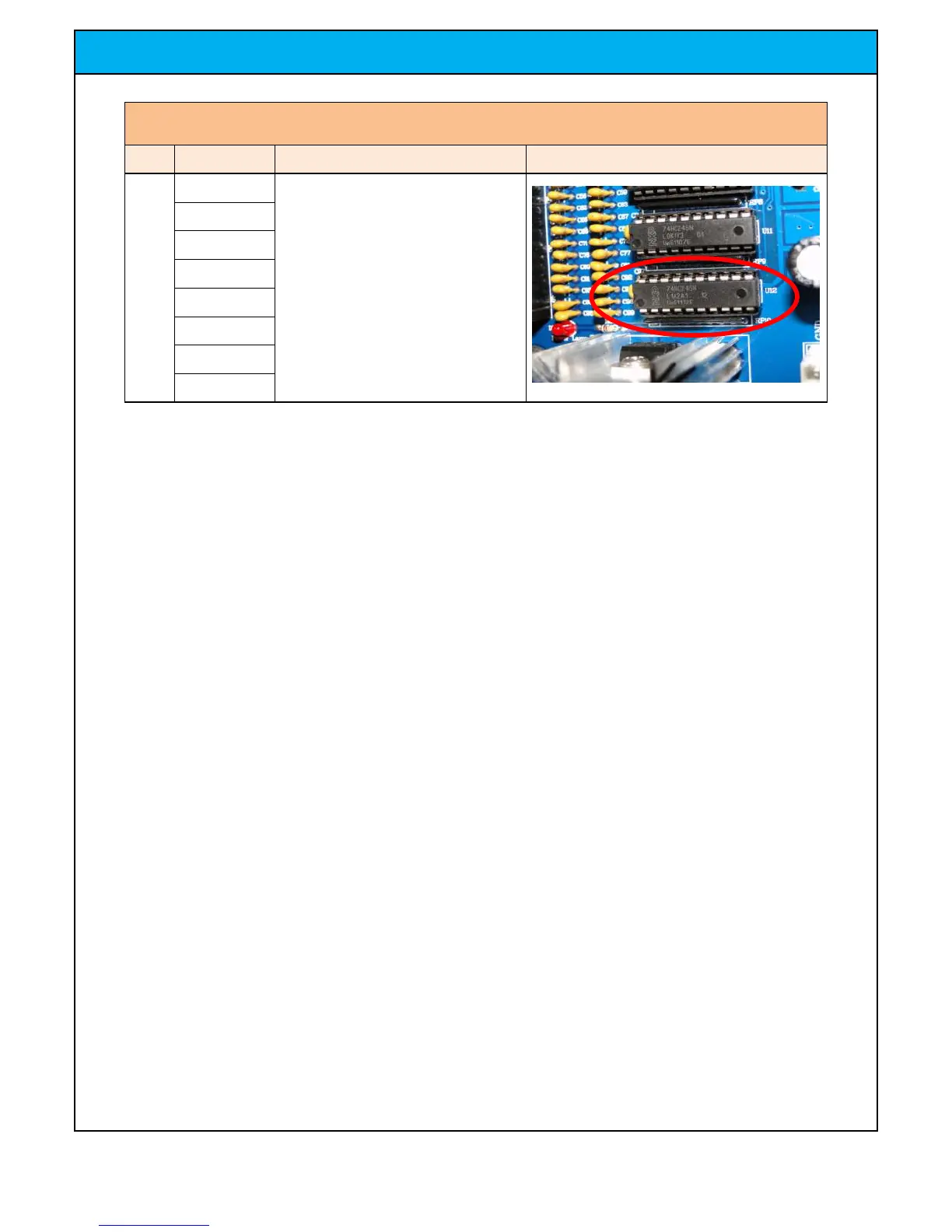

SPACE BALLZ - MAIN BOARD INPUT CHART CONTINUED
IC
INPUT #
CONTENT
U12
33
34
35
36
37
38
39
40
U12 IS NOT UTLIZED IN SPACE BALLS. THIS
SPARE IC CAN BE USED IN U08,U09, & U10
TO RECITFY POTENTIAL ISSUES WITH
THOSE IC'S. IF YOU SWAP IC'S, BE SURE TO
PUT THE DEFECTIVE IC BACK INTO U12
BEFORE POWERING THE UNIT ON. IF THIS
FIXES YOUR PROBLEM, BE SURE TO
RECORD THAT THE IC IN U12 IS NOW
DEFECTIVE AND CANNOT BE USED AGAIN
IN ANOTHER SOCKET
