Jet SPACE BALLZ - Attaching the Control Center

Push the control center (Section # 1) into the metal brackets on the
main cabinet (Section # 2). Be sure that the unit is properly aligned
and all wire connections are stored in the access panel and NOT
wedged between the cabinet.
CAUTION
BE SURE THAT ALL WIRES ARE STORED PROPERLY
BEFORE PUSHING THE CABINETS TOGETHER
Check Box When This Step is Complete
Step # 9-C

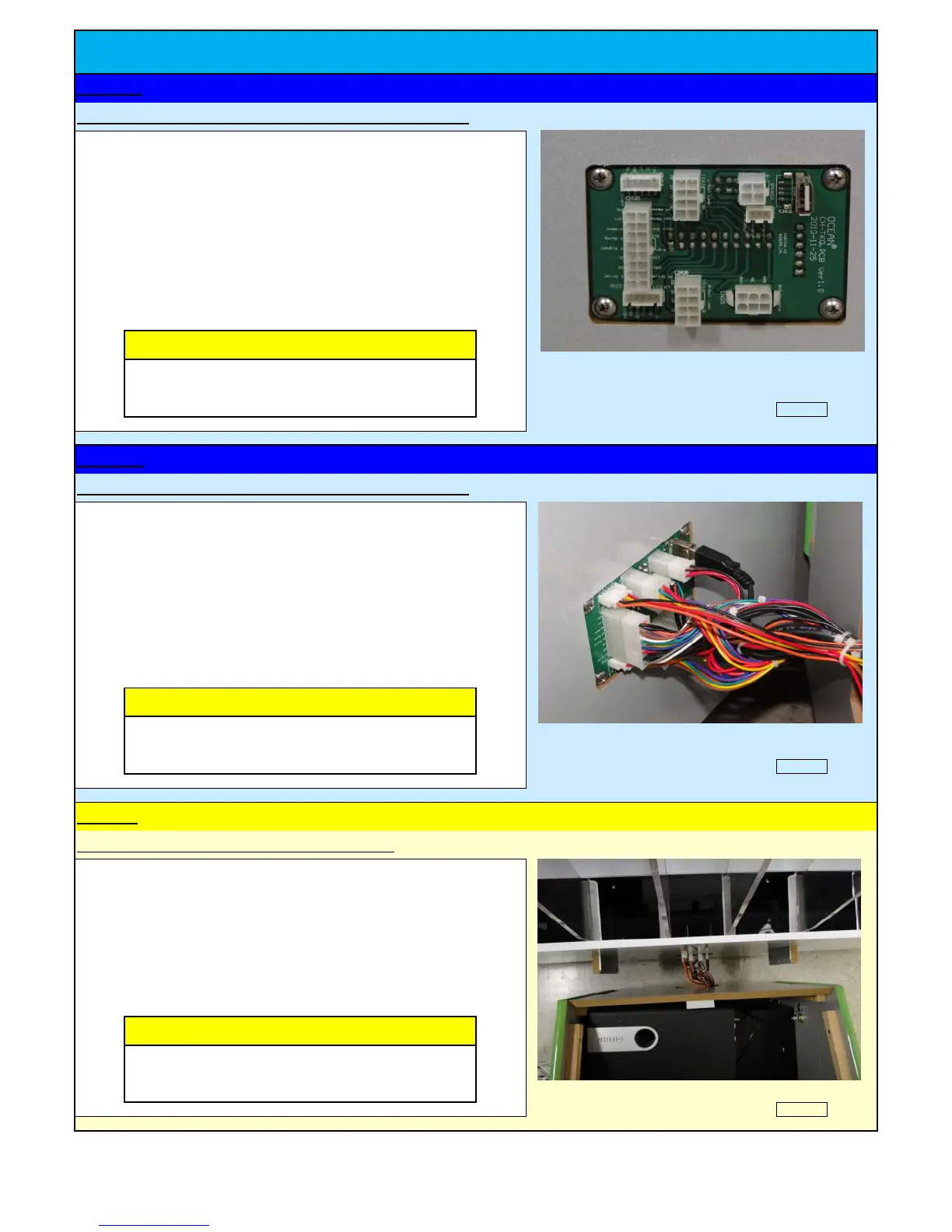

Attach the wires from the control panel to the main cabinet
In some units - a PCB is used to connect the wires from the control
center (Section # 1) to the main cabinet (Section # 2). In this case,
connect each Molex connector to the appropriate space on the PCB.
Be sure that the connectors are properly seated.
CAUTION
ENSURE THAT EACH CONNECTOR IS PROPERLY
SEATED
Check Box When This Step is Complete
Step # 9-D
Attach the wires from the control panel to the main cabinet
In some units - a PCB is used to connect the wires from the control
center (Section # 1) to the main cabinet (Section # 2). In this case,
connect each Molex connector to the appropriate space on the PCB.
Be sure that the connectors are properly seated. Please note that the
speaker connection may vary from what you see in the photo.
CAUTION
ENSURE THAT EACH CONNECTOR IS PROPERLY
SEATED
Check Box When This Step is Complete
Step # 10
Attaching the control center to the main cabinet
INSTALLATION INSTRUCTIONS
Jennison Entertainment Technologies Space Ballz Service Manual Page 30
