7.0 Replacement Parts
Replacement parts are listed on the following pages. To order parts or reach our service department, call 1-
800-274-6848 Monday through Friday (see our website for business hours, www.jettools.com). Having the
Model Number and Serial Number of your machine available when you call will allow us to serve you quickly
and accurately.

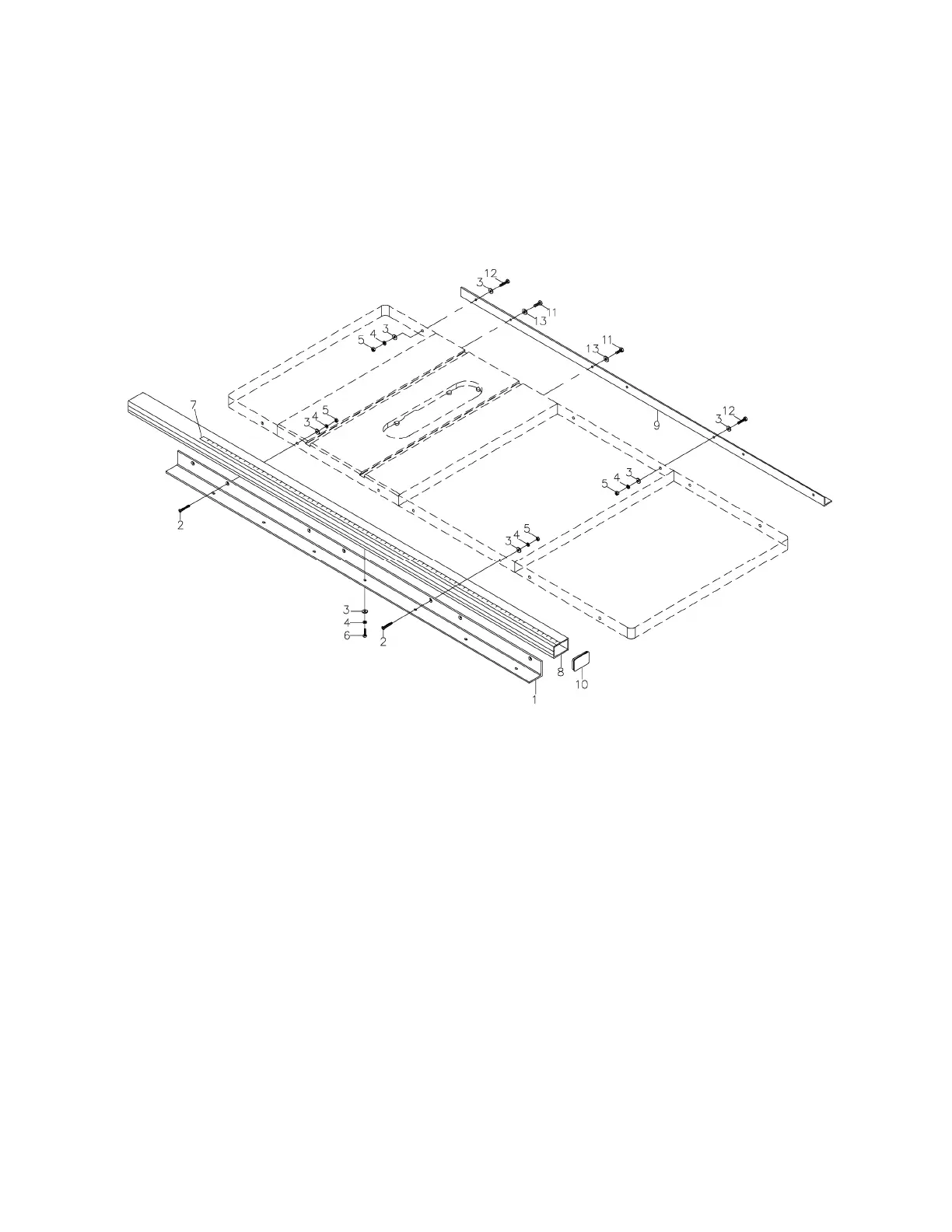

7.1.1 XACTA Fence Rail Assembly – Exploded View
7.1.2 XACTA Fence Rail Assembly – Parts List
Index No Part No Description Size Qty
.................. 708956Z .................... XACTA Rail Assembly 50” (index # 1-13)................ ...................................... 1
1 ................ XF12DX-201 ............. Front Rail ................................................................. ...................................... 1
2 ................ TS-081F081 .............. Flat Head Screw ...................................................... 1/4”-20 × 1-1/2” ............. 7
3 ................ TS-0680021 .............. Flat Washer ............................................................. 1/4” .............................. 24
4 ................ TS-0720071 .............. Lock Washer ............................................................ 1/4” .............................. 19
5 ................ TS-0561011 .............. Hex Nut .................................................................... 1/4”-20 ........................ 12
6 ................ TS-0050031 .............. Hex Cap Screw ........................................................ 1/4”-20 × 3/4” ................ 7
7 ................ XF2-207 .................... Scale ........................................................................ 50” ................................. 1
8 ................ XF2-208 .................... Guide Rail ................................................................ 50” ................................. 1
9 ................ XF12DX-209 ............. Rear Rail .................................................................. 50” ................................. 1
10 .............. XF2-210 .................... Guide Cover ............................................................ ...................................... 2
11 .............. TS-0081031 .............. Hex Cap Screw ........................................................ 5/16”-18 × 3/4” .............. 2
12 .............. TS-0050071 .............. Hex Cap Screw ........................................................ 1/4”-20 × 1-1/2” ............. 5
13 .............. TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 2
.................. XF12DX-HP .............. Hardware Package (index # 2-6 and 11-13) ............ ........................................
