JETBOX Blade - OPEN HAND DRYER FRONT COVER; REPLACE MAIN COMPONENTS; Replace Main Circuit Board; Replace Sensor Receiver Circuit Board

2 front cover screw
4 front
cover screw
Plastic locks

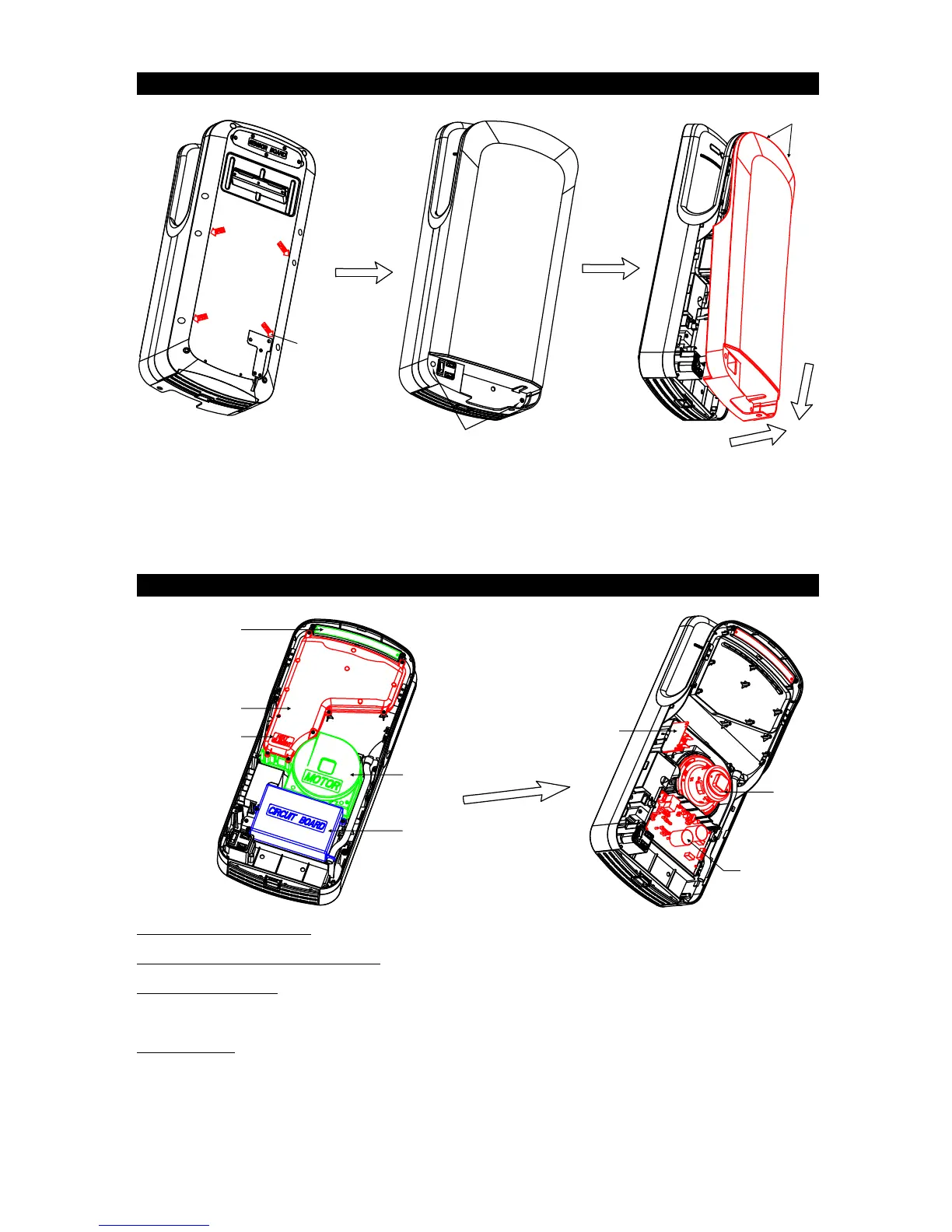

Open hand dryer front cover
Replace Main Circuit Board, Sensor Receiver Board, Motor, Heat Element
Sensor Receiver
Circuit Board
Heat element
Main Circuit
Board
1. Loosen the 4 front cover screws on hand dryer back base as per the arrows marked.
2. Loosen the 2 front cover screws on the hand dryer front & underside.
3. Pull the front cover up then back a little to remove it.
4. Pull the cover slowly and gently taking care of the plastic locks on the top side.
Air Chamber cover
Heat element
housing
Motor housing
Motor
Main circuit
board
housing
Replace Main Circuit Board: Remove circuit board cover and replace the circuit board.
Replace Sensor Receiver circuit board: .Undo the screw, remove the circuit board and replace.
Re
Remove the Air Chamber cover and Motor housing.
place Motor:
1.
. Remove the motor and replace it.
2. Replace motor housing. Ensure the motor protection rubber and air seal rubber fits correctly.
3. Replace Air Chamber cover. Ensure the air seal rubber is seated correctly to avoid air leakage.
Replace Heat Element:
1. Move marked Air Chamber cover. Remove the heat element and fit the replacement.
2. Replace Air Chamber cover. Ensure the air seal rubber is seated correctly to avoid air leakage.
JETBOX Blade 7
