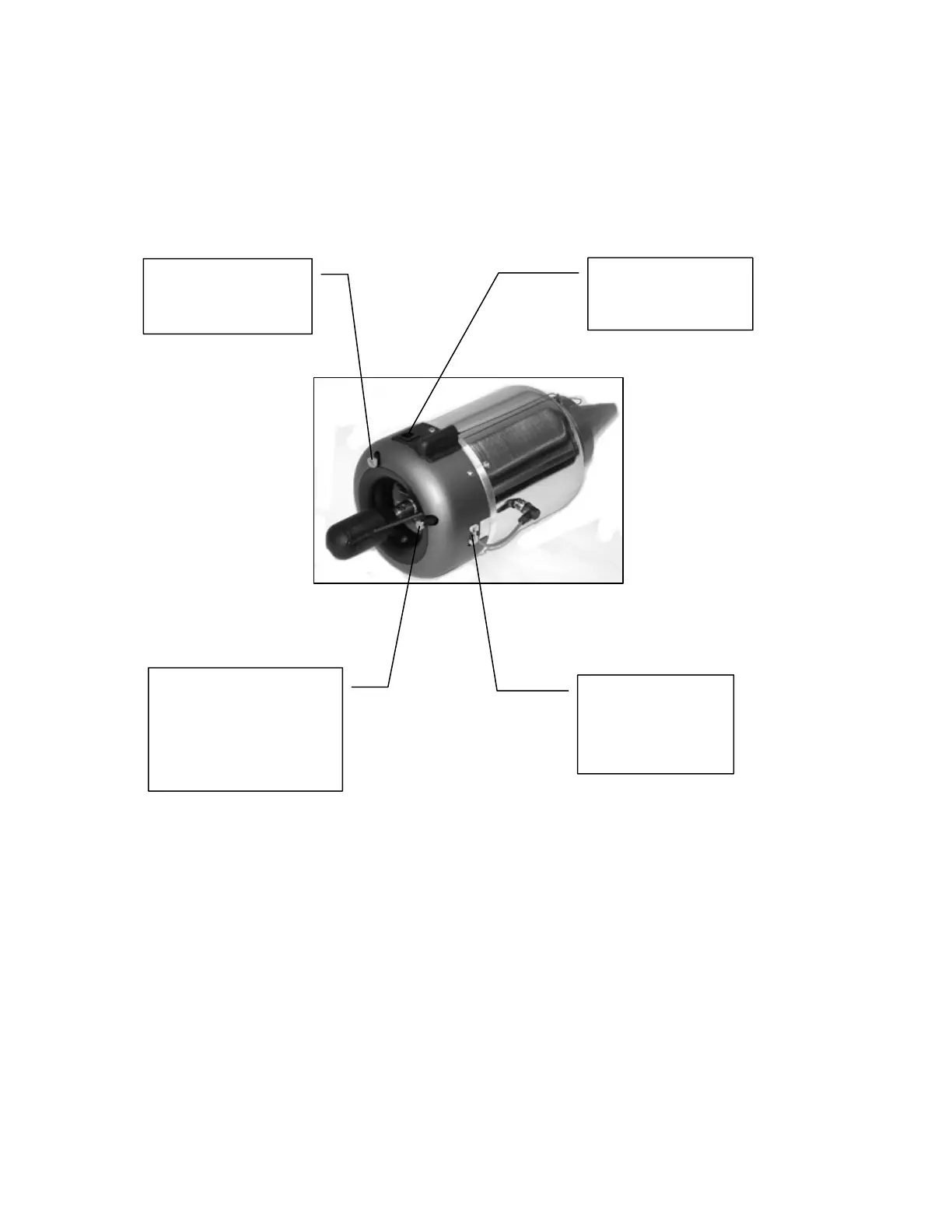

Connections at the Turbine

From ECU

(Glow-plug /

Starter device)

3-lead cable

Starting Gas

Connector,

(Propane/ Butane)

3mm tubing from the

starting gas tank

From ECU,

EGT & RPM

sensor cable

Fuel Connector,

4mm tubing from

the fuel pump

Page 19/74
