JetCat RXi Series User Manual

PAGE 14 of 54

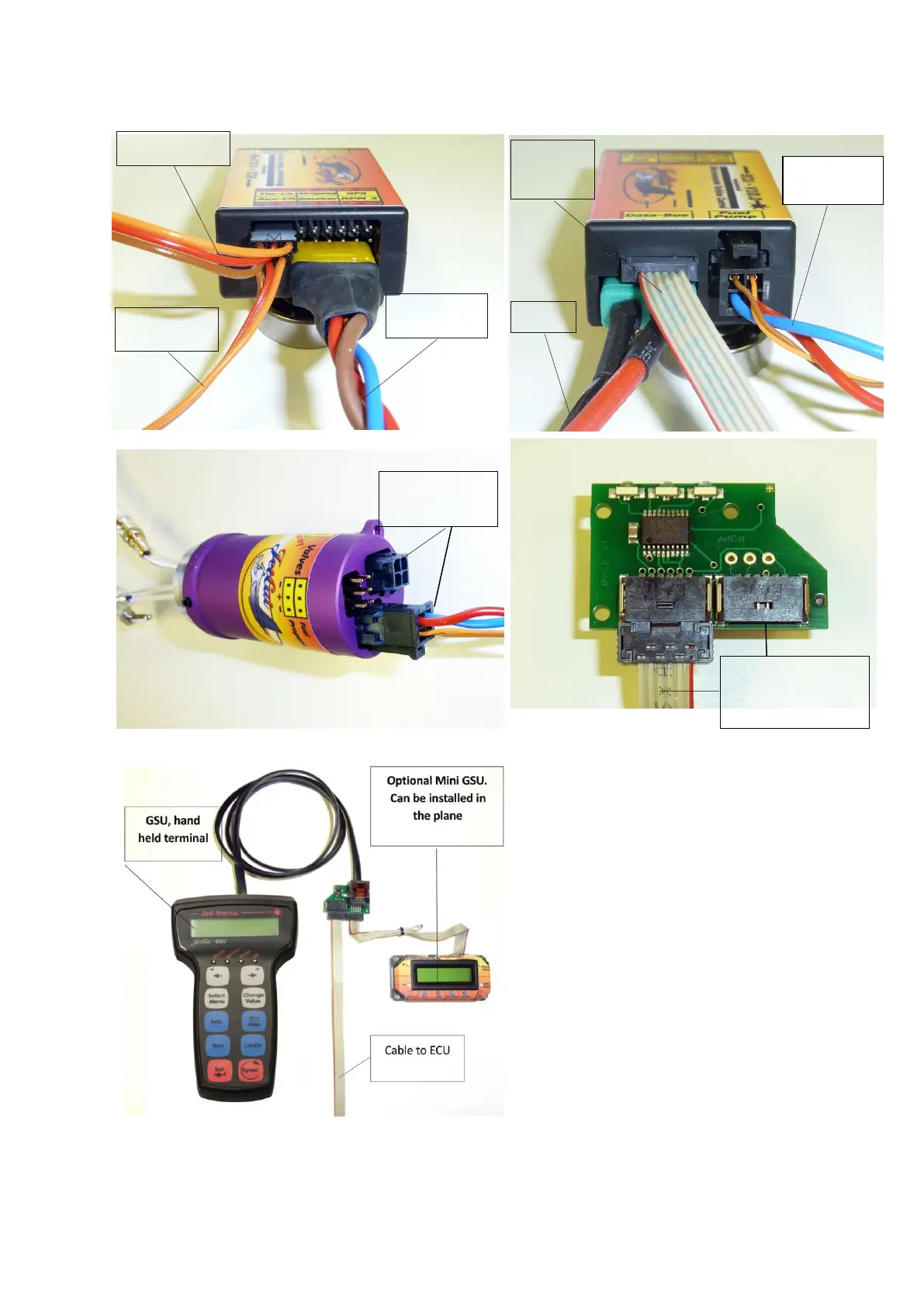

Electrical connection
Interconnections
 Connect the fuel pump cable to either
connector on the fuel pump and the ECU.
 Connect the Power/Data cable to the
turbine and ECU.
 Connect the Flat cable to the LED I/O
board and ECU.
 Connect a fully charged battery to the
ECU. To charge the battery, refer to the Power
section of this manual.
Throttle input
Optional AUX
input
Power data
cable
I/O board
flat cable
Battery
Pump
cable
Fuel pump
connection, use
either plug(RX)
ECU / Mini GSU – I/O
board connections.
Plugs are
interchangeable
Pump
Cabel (RX)
