computer radio control system

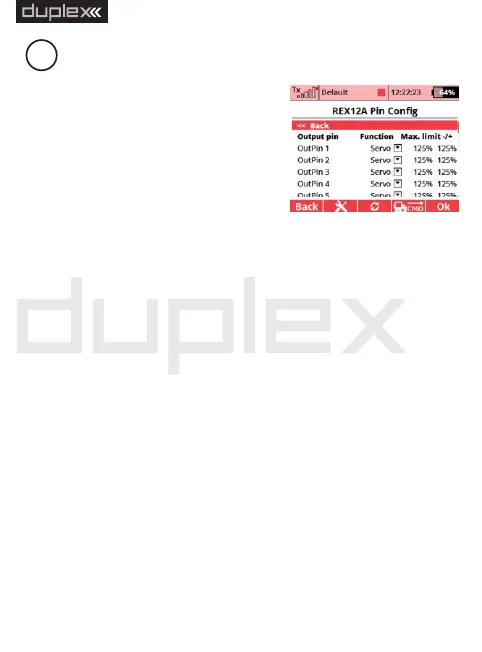

7 Alternative pins configuration
Here you can change the modes of the
receiver pins. Servo outputs can be
configured, for example, in digital
input or digital output mode.
Servo - standard impulse output for
servo control (-100% ~ 1ms, 0% ~
1.5ms, + 100% ~ 2ms).
If the output pin is set to "Servo" mode, you can specify maximum
possible throws that will never be exceeded. These limits should be
adjusted to protect individual servos against overshots and model
damage.
Digital input - the logic value of a given signal pin (0 or 1) is
transferred to the transmitter in the form of EX telemetry (so it can
be further displayed and stored). Receiver pins are equipped with
internal pull-up resistors, so you can easily connect the signal wire
to the ground for logic level detection. It is not allowed to connect
external voltage to this pin.
Digital output - the receiver will discretize the channel value of the
given pin. If this value is greater than 1.5ms (>0%), the output pin
value will be logic “1”. Otherwise, the output value will be logic “0”.
Using this approach, you can control e.g. simple model lighting
made up of LEDs. In this mode, the Fail-Safe settings for the pin are
also applied.
51
EN
JETI model s.r.o.
Lomená 1530, 742 58 Příbor
Czech Republic - EU
www.jetimodel.com
www.jetimodel.de
info@jetimodel.cz
Duplex-System EX:
• Transmitter modules
• Receivers
• Telemetric sensors
• Compatible accessories
• Display units
Serial number:
Carefully save this serial number!
