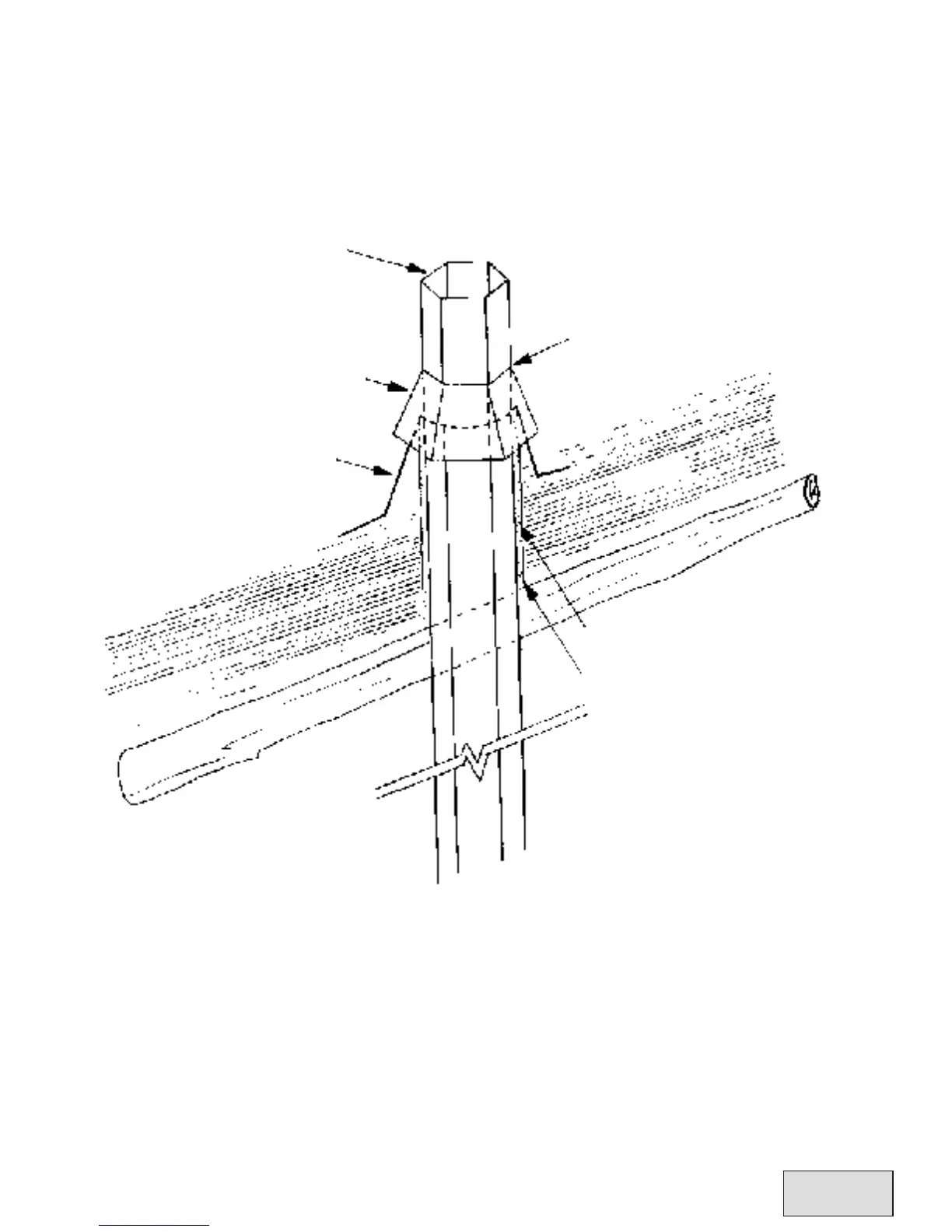

Fig. 6 - Thatched or Timber Roofs and Rotating Hex
With thatched or timber roof, omit
cowl (supplied) or fit rotating
Jetmaster cowl.
Galvanised/lead flashing
by plumber to suit size
andpitch (with rotating
Hex, top of flashing must
be circular)
Seal with black silicone sealer
(supplied)
Weathering collar (supplied)
Fibreglass insulation between
galvanised/lead sleeve and
chimney flue
T
h
at
c
h
Ra
r
fte
Galvanised/lead sleeve
50 mm larger than steel flue
Please read written instructions in conjunction with these diagrams.
