Please read written instructions in conjunction with these diagrams.

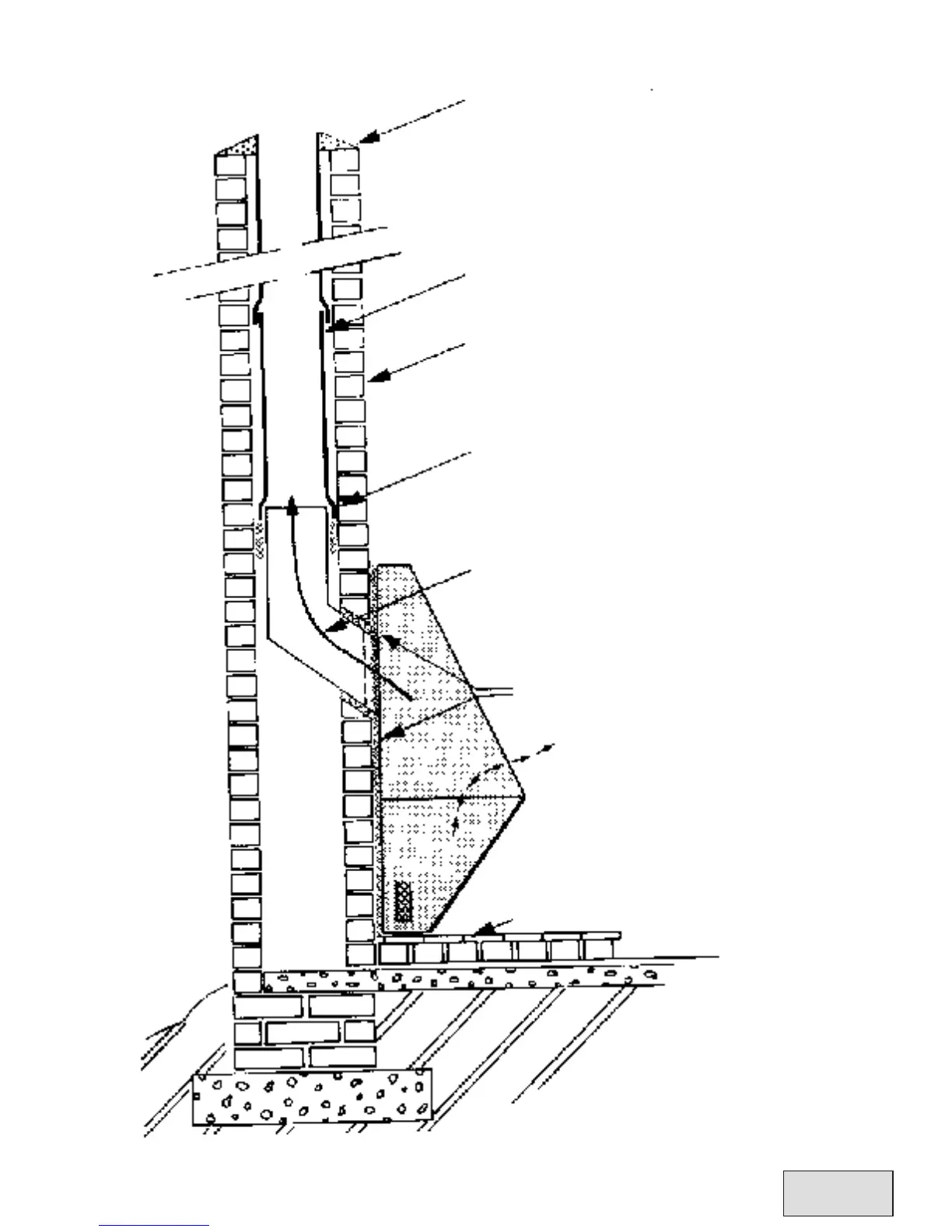

Installation of Falcon and Heron models
Fig. 7
Weather top of chimney as
shown or fit Jetmaster cowl.
(refer Fig. 8).
110 mm brickwork is adequate
if liners are used.
Moulded flue liner
Seal joint with fibreglass
insulation (supplied)
Correct side of elbow selected
to suit wall thickness
Fibreglass insulation
(supplied)
Hot air
o
k
e
S
m
Hearth by builder
Note: With Heron model air
inlet duct must be accommo-
dated in brickwork hearth.
13
