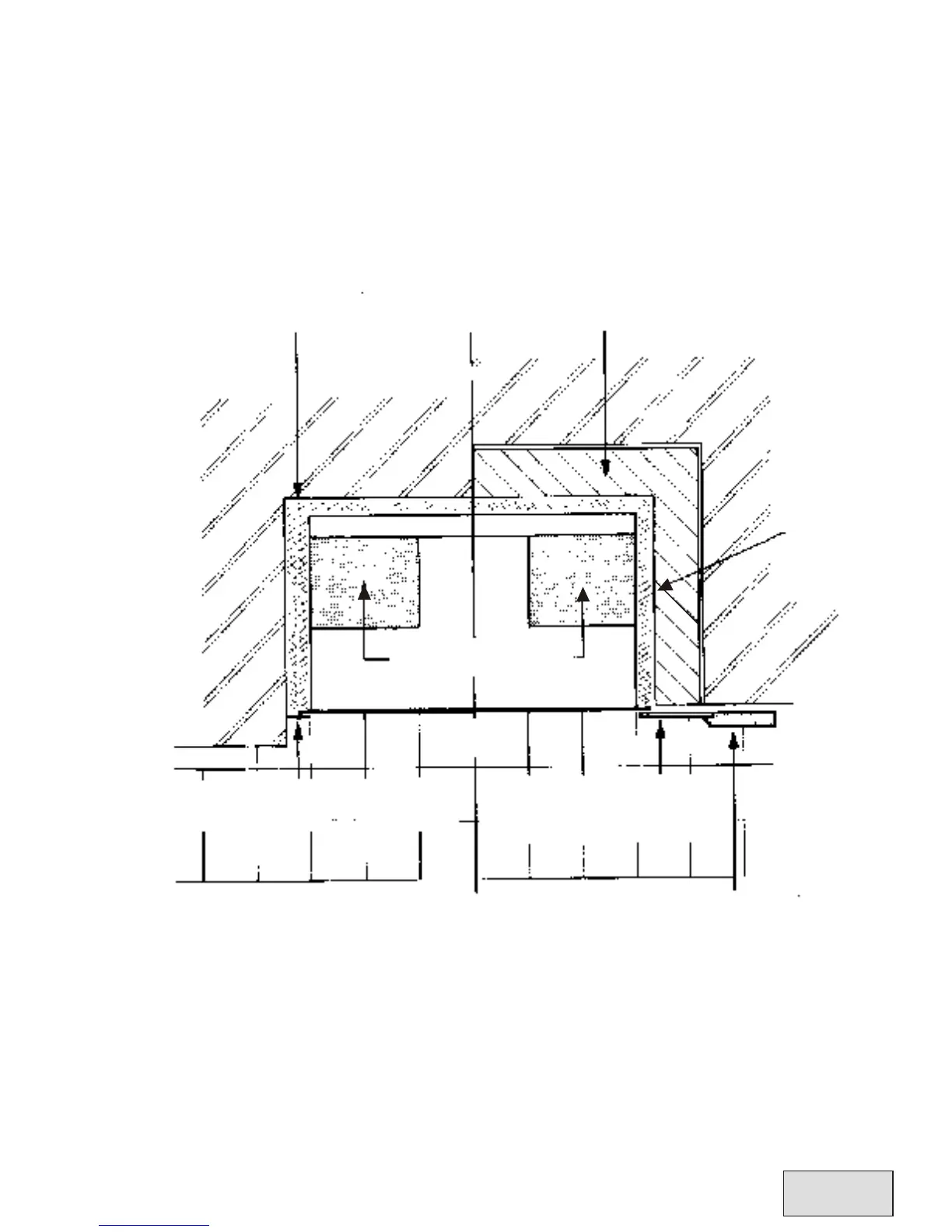

Fig. 4 - Plan view
A
Fireplace recess slightly too
large (less than 75 mm) - pack
with extra layers of fibreglass
insulation
B
Fireplace recess too large
(more than 75 mm) - use
bricks to build up and reduce
size
Fibreglass
insulation
(supplied)
Infill strips of marble/stone/
tiles 10 mm overlap in front
or behind frame
Close gap with non-combustible
strip screwed to frame
Fireplace surround
Smoke outlets
Hearth
Please read written instructions in conjunction with these diagrams.
