Jetmaster 700 - Existing Chimneys; Single Skin Flue; Twin Skin Flues; Cowl

Page 10
5. Flue & chimney requirements cont...
Ceiling penetration
clearances
Existing chimneys should be inspected and cleaned by a qualied
professional prior to installation. The chimney must not have cracks,
loose mortar or other signs of deterioration and blockage. Jetmaster
recommends a certied professional or a technician, under the
direction of a certied professional.
Single skin ue (stainless steel) must be completely enclosed with
single skin brickwork, concrete, or autoclaved aerated concrete
block. A chimney plate will be used to weather seal the chimney.
Twin skin ues (stainless steel inner, and galvanised outer) can
either be left exposed or enclosed with stud walls and sheet plaster
or timber. A minimum of 50mm clearance must be maintained
between the outer ue and any combustibles within the chase or
ceiling cavity. (Fig 5.1)
Position an active starter ue with two female ends to gather to
allow second length to have crimp facing down. (Fig 5.2)
Glass tape may be required to ensure a snug t.
The outer ue is then installed outside active ue with crimp facing
up to ensure water penetration on ue above roof runs out.
Rivet active ues together at crimped joins.
Fix outer non-active ues to active inner ues use 3 x 25mm self-
tapping screws through outer ue at bottom at each join and on top
at each join. As an alternative, rivet 4 x 25mm conduit saddles at
each join top and bottom.
Cowl
For solid fuel applications only
, a rotating bird cowl will assist in
preventing the eects of downdraft as it turns with the direction
of wind. (Fig 5.3)
Other solid fuel cowls may be desired to achieve a visual design
and such cowls can be used but must not restrict airow from
the ue pipe casings.
For gas applications
an AGA approved cowl must be used.

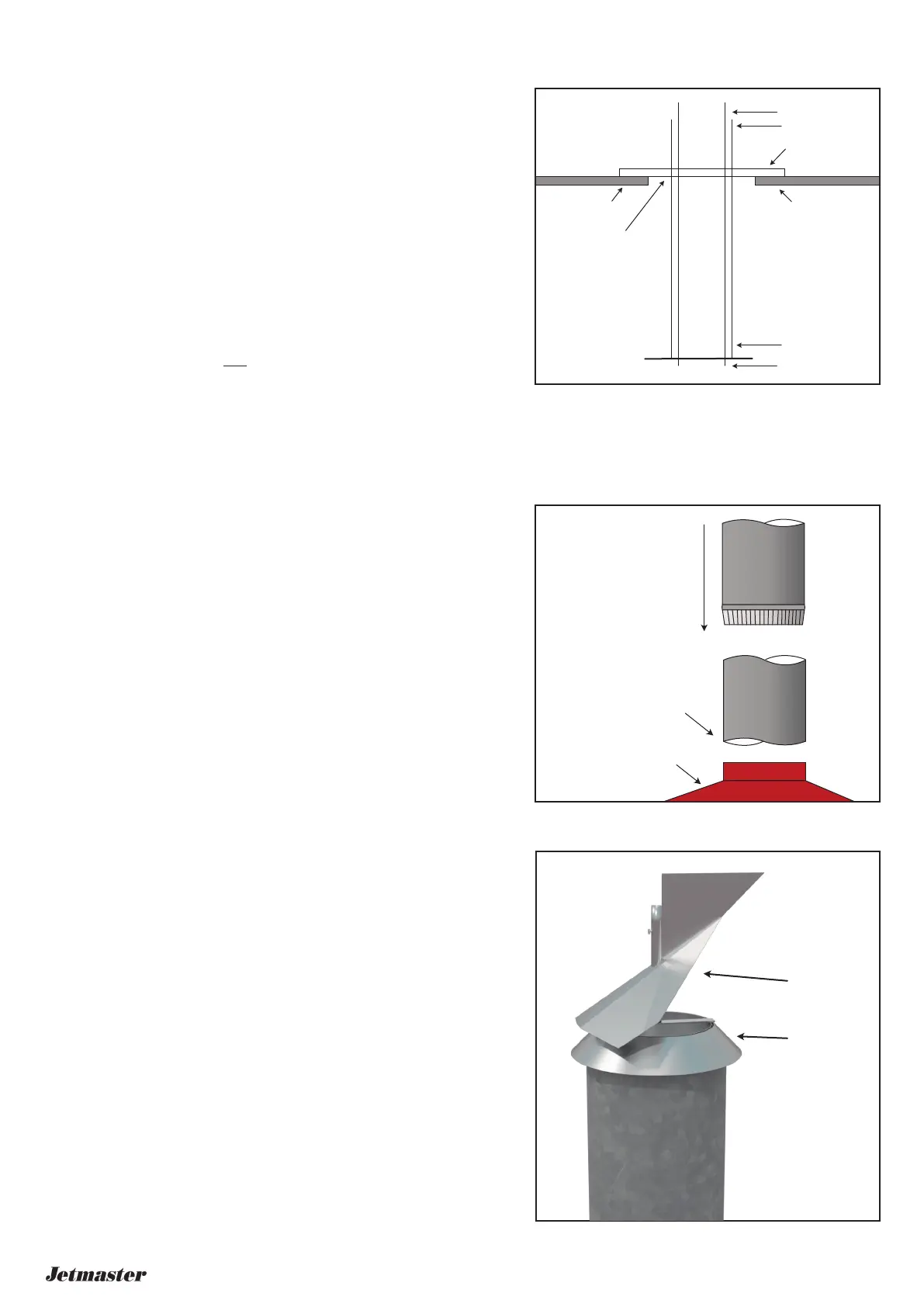

Fig 5.2
Fig 5.3
Fig 5.1
Combustible ceiling
Combustible ceiling
Support angles
50mm gap from
Combustible materials
Outer Gal casing
Active stainless steel
Active stainless steel
Outer Gal casing
Crimped end down
From second length
Gather
Trim the crimp off first
length stainless pipe
Stainless Bird
Cowl
Cover cone
