Page 4
Gather
Unit

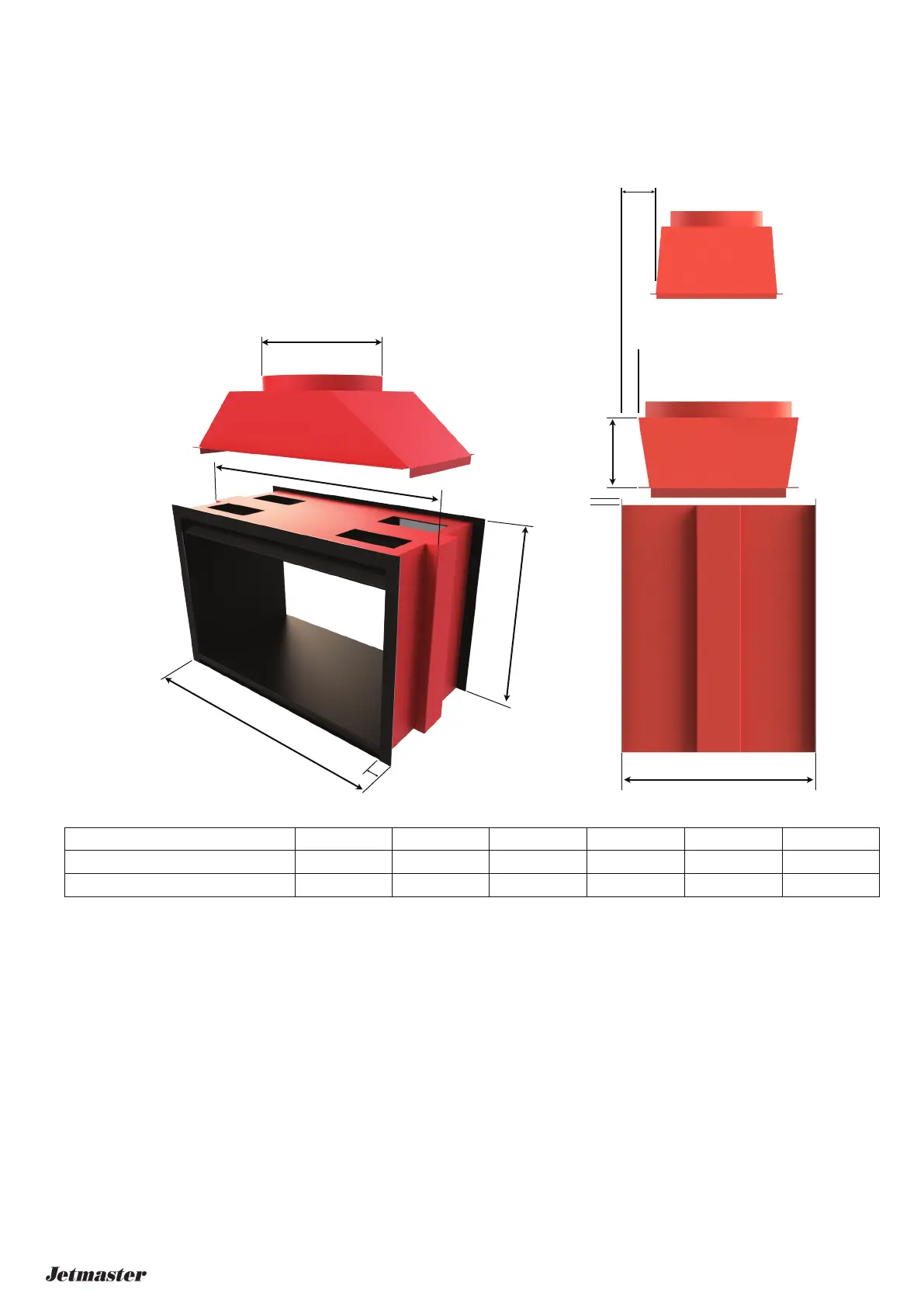

2. Components and specifications - double sided
50mm
20mm
MODEL A B C D E F
700 double sided 850 800 610 700 300 220
1050 double sided 1205 1150 600 770 450 220
A
B
C
D
E
F
• Measurements are in mm and provided as a reference only.
• Due to the nature of thick welded steel, it is normal and expected for some imperfections and slightly out of square components. It is recommended to not
begin construction of cavity or ue penetration points until after the unit is in place on site.
50mm - 1050DSU
105mm - 700DSU
Gather must be securely bolted to the unit
Optional 3 and 4 sided 70mm surrounds are available to ll in between unit and outer Hebel box.
Add 40mm to B measurement for coverage
Fitting instructions on following page.
