UNIT A - HEIGHT B - WIDTH C - DEPTH
700 DSU 1325 1050 610
1050 DSU 1395 1405 700

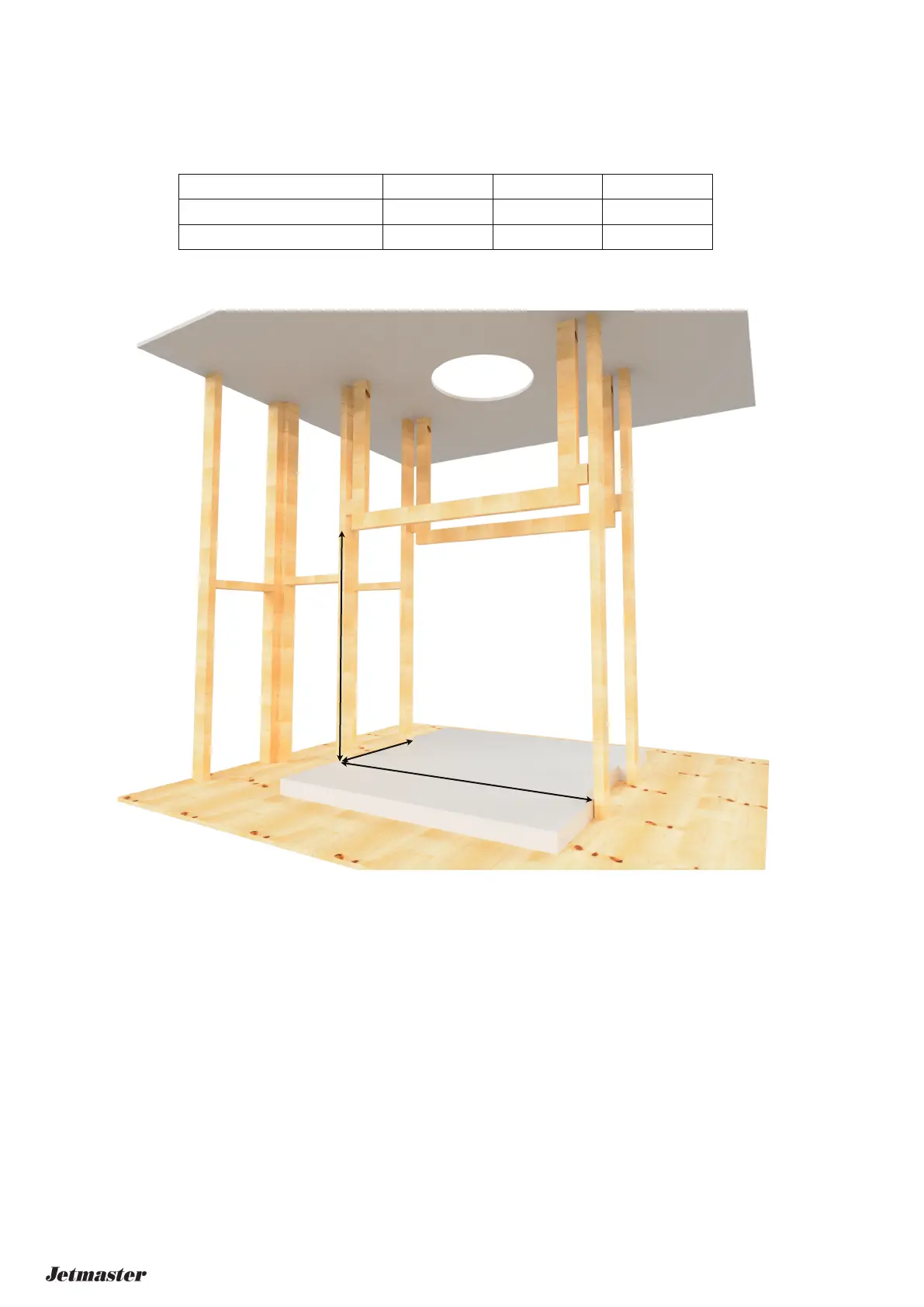

3. Timber framing specification
Note:
Timber framing should be constructed using normal framing methods. Image above is an example only.
Do not install finishing materials around the cavity until after the fireplace has been installed.
Frame height is from top of the 100mm hebel hearth base.
Refer to the following page for hearth requirements
