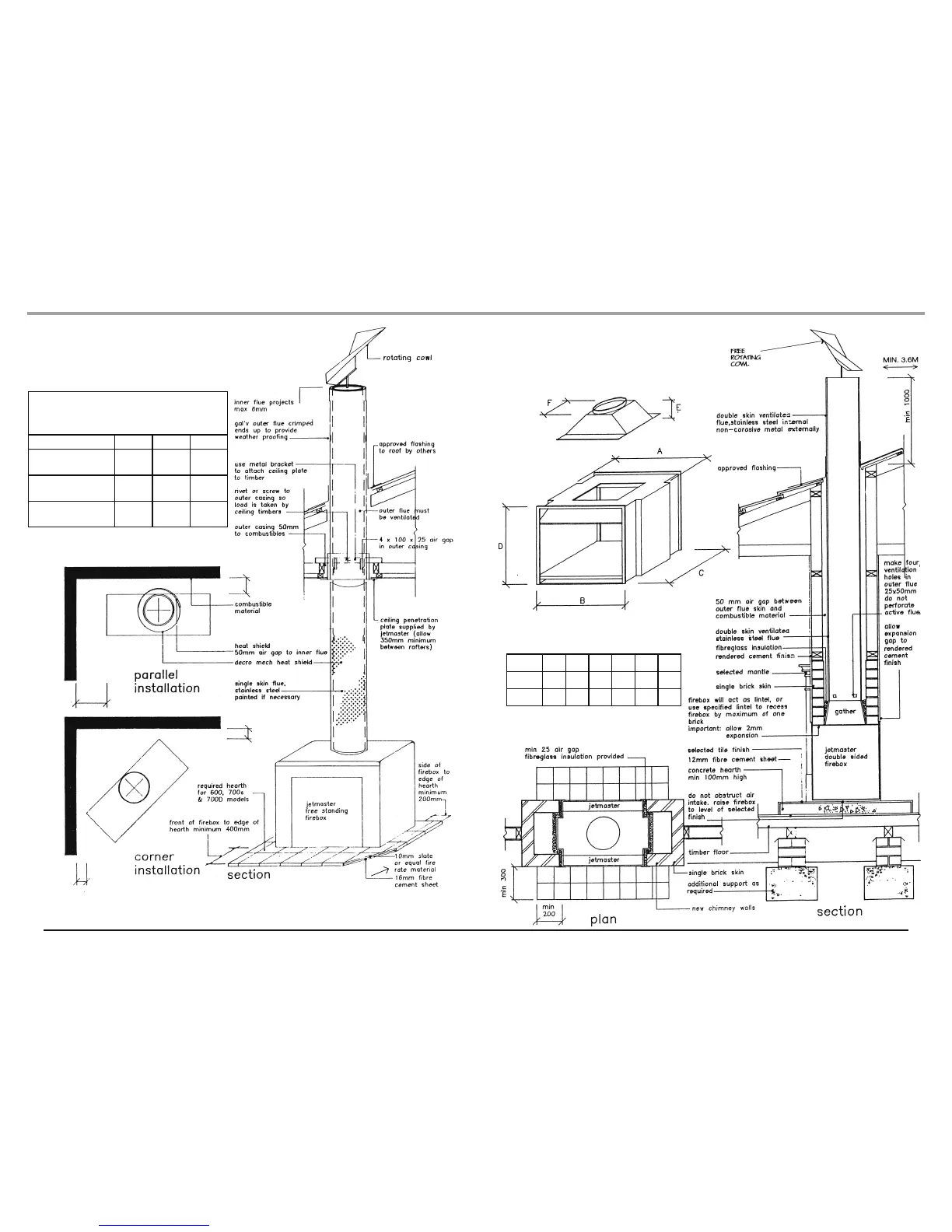

Construction Specifications - Jetmaster Free Standing Metal Casing “B” Construction Specifications - Jetmaster Double Sided “A”
Hearth Thickness
Hearth Thickness
Models 400 to 850 26mm
Models 400 to 850 26mm
Model 1050 100mm
Model 1050 100mm
* Hearth extends 100mm behind firebox
* Hearth extends 100mm behind firebox
Typical installation with decro
mesh heat shield to ceiling.
FIREBOX AND FLUE CLEARANCES
TO COMBUSTABLES
Jetmaster 600, 700S,700D & 850 Freestanding
ABC
Flue Pipe 250 175 50
Flue Pipe with 900
Heat Shield
100 175 50
Flue Pipe with Decro
Mesh
100 175 50
NOTE: min. 400mm from front of firebox to edge of hearth
B
A
C
C
MODEL A B C D E F
700 850 800 610 700 270 345
1050 1090 1150 600 770 233 415

Jetmaster UNIVERSAL Specifications
