Jetson Helio X - Assembly Instructions

12
1.2 Assembly

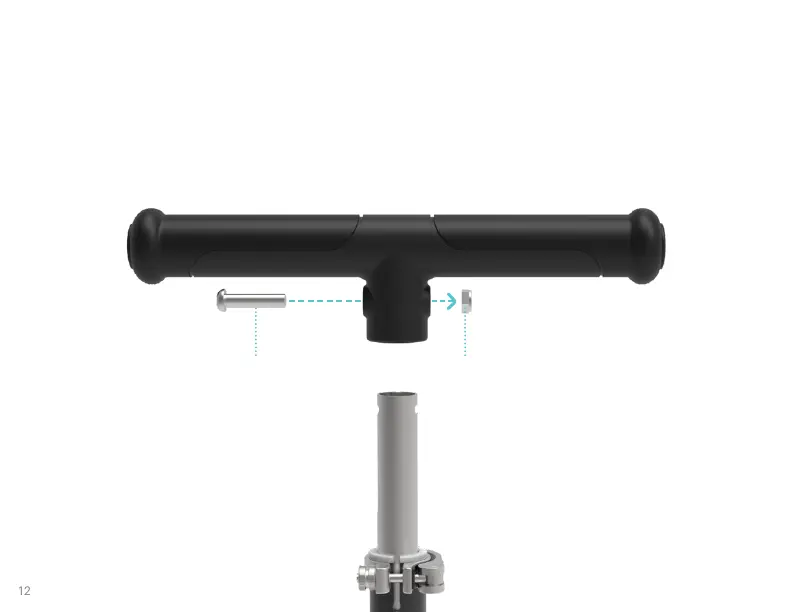

• LOOSEN AND REMOVE THE BOLT AND NUT THAT ARE PREATTACHED IN THE BASE OF THE HANDLEBAR WITH THE
SCREWDRIVER BIT OF THE 2BIT TOOL. SET ASIDE.
• PUSH THE HANDLEBAR DOWN FIRMLY ONTO THE STEM UNTIL THE PREDRILLED HOLES IN THE HANDLEBAR ALIGN WITH
THE PREDRILLED HOLES IN THE STEM.
• INSERT THE BOLT THROUGH ALL FOUR HOLES AND TWIST THE NUT ONTO THE END. TIGHTEN WITH THE 2BIT TOOL.
IMPORTANT: PLACE THE NUT ON THE RIGHT SIDE WHEN FACING THE FRONT OF THE HELIO X.
BOLT NUT
