1.2 Assembling the Stem

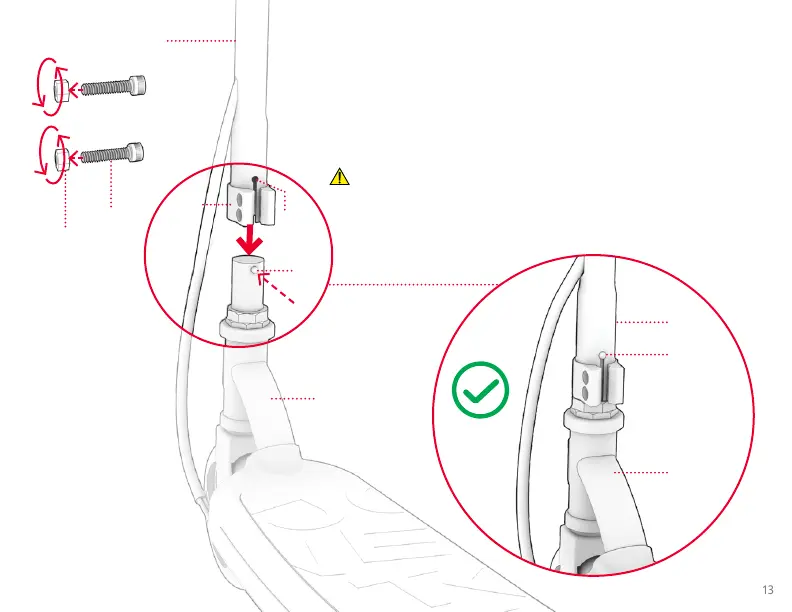

1. FROM THE LOOSE HARDWARE, REMOVE THE NUTS FROM THE 2 LARGE
BOLTS (B1) BY TWISTING THEM OFF COUNTERCLOCKWISE. SET THE
HARDWARE ASIDE. (3RD SET IS SPARE.)
2. GENTLY GUIDING THE SEMI-ATTACHED HANDLEBAR, POSITION THE
STEM VERTICALLY ABOVE THE STEM CLAMP SUCH THAT THE PIN
HOLE IN THE STEM IS ABOVE THE PIN ON THE SCOOTER BASE.
IMPORTANT: TAKE CARE WHEN HANDLING THE STEM WITH
SEMI-ATTACHED HANDLEBAR.
3. PUSH IN THE PIN ON THE SCOOTER BASE AND SLIDE THE STEM ONTO THE
SCOOTER BASE UNTIL THE PIN POPS INTO THE PIN HOLE IN THE STEM.
STEM
SCOOTER BASE
LARGE BOLT
(B1)
NUT
PIN
PIN
HOLE
STEM
CLAMP
PIN IN
PIN HOLE
SCOOTER
BASE
STEM
