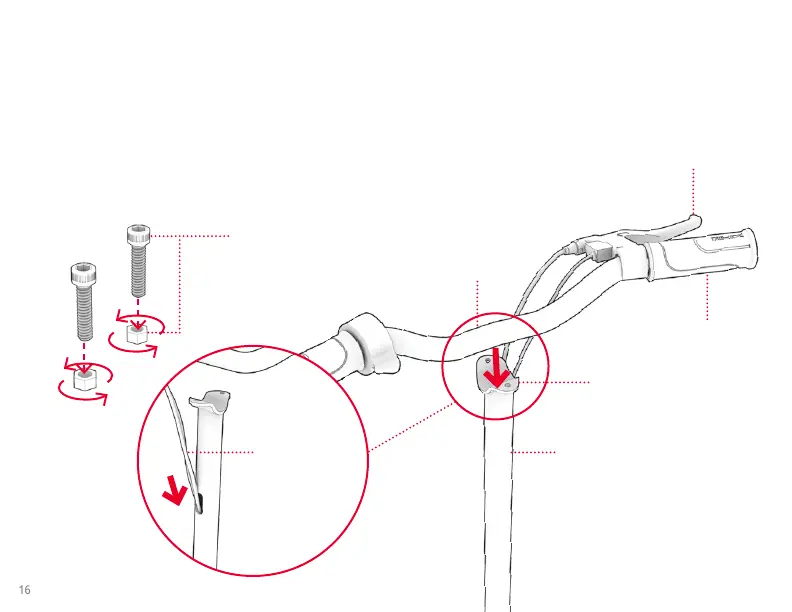

1.3 Assembling the Handlebar
1. FROM THE LOOSE HARDWARE IN THE BOX, REMOVE THE MEDIUM NUTS FROM THE 2 MEDIUM BOLTS (B2) BY TWISTING THEM
OFF COUNTERCLOCKWISE. SET THE HARDWARE ASIDE. (3RD SET IS SPARE.)
2. POSITION THE HANDLEBAR ATOP THE STEM SUCH THAT THE FOLLOWING CONDITIONS ARE MET:
• THE HANDLEBAR IS NESTLED IN THE HANDLEBAR CLAMP BASE.
• THE HANDBRAKE IS ON THE RIGHT SIDE OF THE SCOOTER AS VIEWED FROM THE RIDING POSITION.
• THE HANDLEBAR IS CENTERED ON THE STEM.
• THE HANDLEBAR GRIPS ARE HIGHER THAN THE CENTER OF THE HANDLEBAR.
3. CAREFULLY TUCK THE THROTTLE CONNECTION WIRE INTO THE HOLE IN THE STEM UNTIL THE WIRE IS TAUT.
*AS VIEWED FROM THE RIDING POSITION
*AS VIEWED FROM
IN FRONT OF
THE SCOOTER
THROTTLE
CONNECTION
WIRE
STEM
HANDLEBAR CLAMP BASE
HANDBRAKE
HANDLEBAR
HANDLEBAR GRIP
MEDIUM BOLTS
WITH NUTS (B2)
