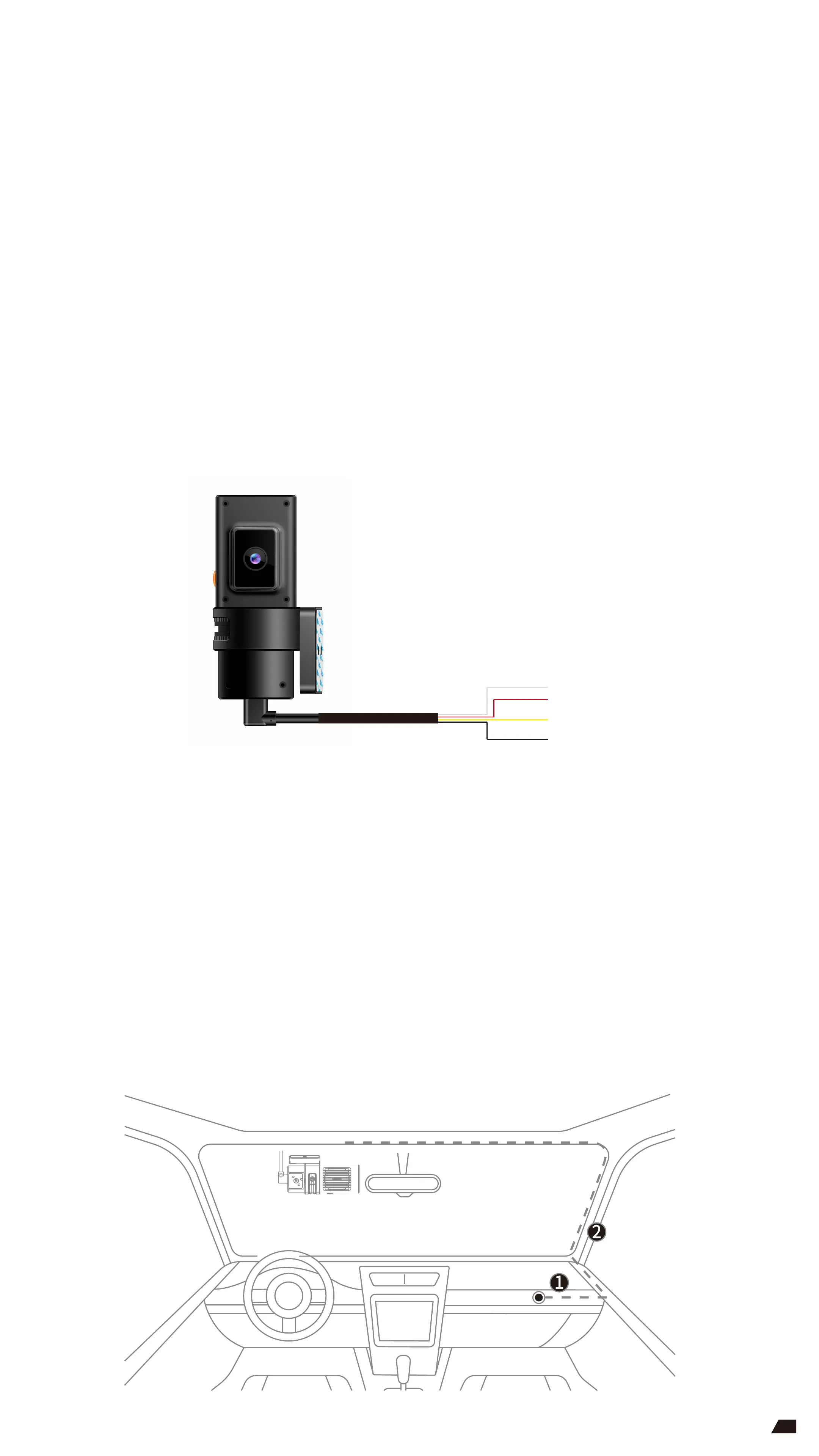

4.4. Product wiring diagram
1. Check if all accessories are included and intact and purchase optional accessories according
to your specific needs;
2. If you plan to install a peripheral camera, it is recommended that you purchase a camera
specified by the manufacturer;
3. If you plan to install a relay, a compatible relay kit should be purchased separately;
4. When the power cable is connected, tighten the fastener screw to prevent the cable from
coming loose.
Installation description
4.5. Installation
It is recommended that you install the main unit on a position on the front windshield
that is to the left side behind the rearview mirror. The entire installation consists of the
installation of the body and the routing of the power cable.
4.3 Product pre-installation
Before installation, it is recommended that you install all necessary accessories on the device,
including:
● Insert an eligible memory card correctly into the device;
● Place an eligible SIM card in the card tray and insert it into the device;
● Select a proper install position and clean the position.
●
●
●
●
4.2 Installation preparation
Check the package you received against the packing list and make sure everything is
in good condition before installing.
Prepare the installation tools (insulation tape, assembly and disassembly tool, etc.)
Check if all original functions of the vehicle in which the device is to be installed are
normal. If any exception is found, do not proceed with the installation;
Take necessary cleaning and protection measures to the vehicle in advance.
WHITE: RELAY
RED: B+
YELLOW: ACC
BLACK: GND
