SYSTEM CONNECTION DIAGRAM 2:
Multiple Fathom v2s to
Home Theater Receiver or
Home Theater Preamp/Processor
To greatly simplify using multiple
subwoofers in a single home theater
system, Fathom v2s incorporate a
“Master/Slave” signal distribution system.
is allows control of all the Fathom v2s
in a system from a single “Master” unit.
First, you will select a Fathom v2
subwoofer as the “Master” via its upper
“Input Mode” switch. Generally, you will
designate the Fathom v2 closest to the
receiver/preamp as the master. In some
cases; for example, when the control panel
of certain units is dicult to access, you
may prefer to designate the one which is
easiest to access as the master.
Two connection types are available for
connecting the master Fathom v2 to your
home theater system: balanced (XLR or
1/4-inch TRS connector) and unbalanced
(RCA-type connector). Balanced
connections provide superior noise
rejection and ensure proper grounding
between components. If your receiver or
processor has balanced outputs, we highly
recommend that you use them to connect
to the Fathom v2 designated as the master.

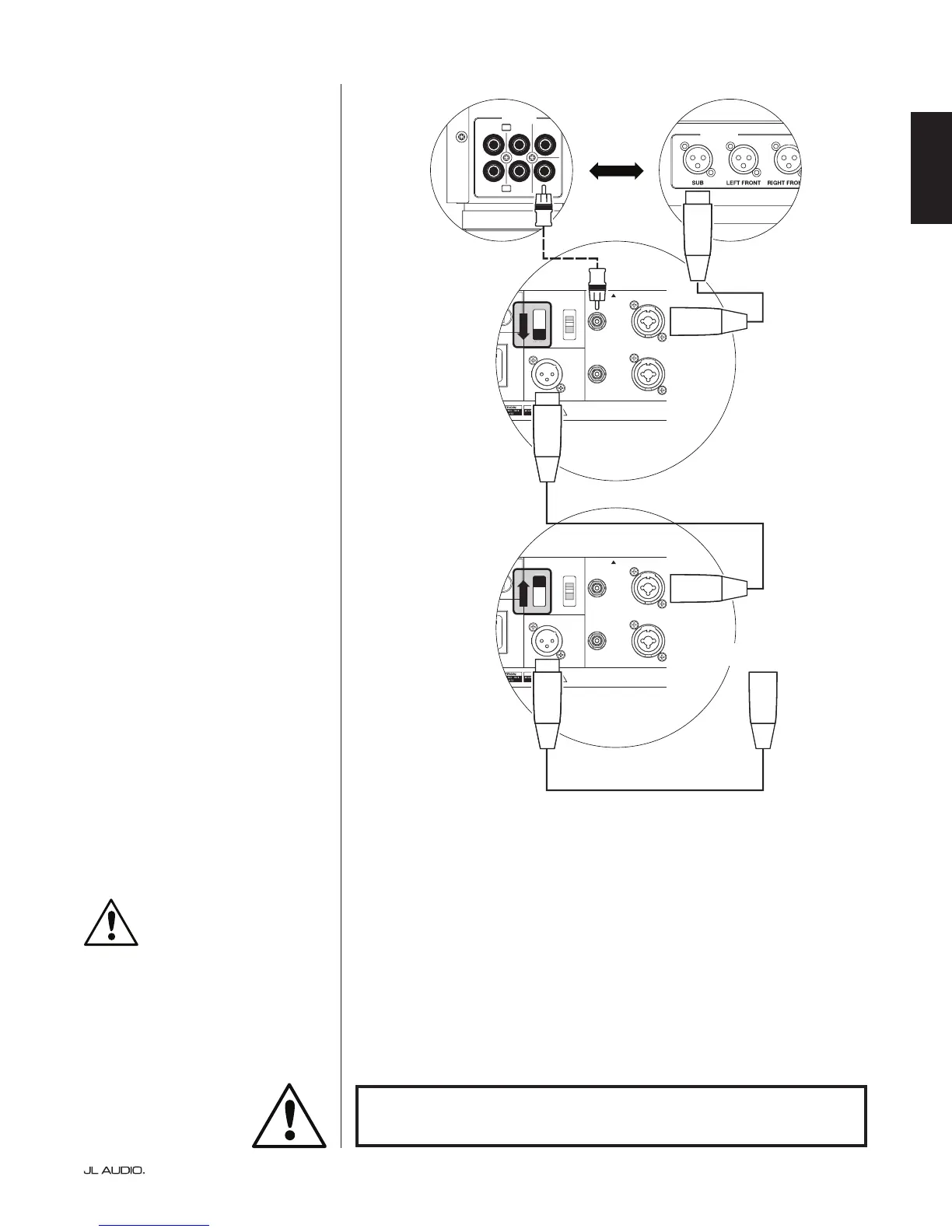

In the connection diagram at le,
balanced connections are shown as solid
lines, unbalanced connections are shown
dotted. You will only use one of these
input connection methods for the Fathom
v2 designated as the master (not both).
e remaining Fathom v2s in the
system will be congured as “Slave” units
via their upper “Input Mode” switches.
Using balanced XLR cables, you will
connect the master Fathom v2’s “Output
to Slave” to the “Le or Mono” balanced
input of the rst slave Fathom v2. at
slave unit’s “Output to Slave” connector
will feed the “Le or Mono” input of
the next slave unit via another balanced
XLR cable. Subsequent slave units will
be connected in the same manner.
Connections between the “Master” and
“Slave” Fathoms and between “Slave”
Fathoms are via balanced XLR cables ONLY.
1200VA
ilt in USA with Imported and domestic components
LEFT
or
MONO
RIGHT
ONLY
INPUTS
Output to Slave
(Balanced)
Balanced
Unbalanced
Input Modes
Slave
Master
Grounded
Isolated
SERIAL NUMBER:
Warranty void if serial number is removed, altered or defaced.
F 12A H
250V
0 V ~ 60 Hz
F
U
S
E
F
U
S
E
1200VA
ilt in USA with Imported and domestic components
LEFT
or
MONO
RIGHT
ONLY
INPUTS
Output to Slave
(Balanced)
Balanced
Unbalanced
Input Modes
Slave
Master
Grounded
Isolated
SERIAL NUMBER:
Warranty void if serial number is removed, altered or defaced.
F 12A H
250V
0 V ~ 60 Hz
F
U
S
E
F
U
S
E
ave
Master
ave
Master
OUTPUTS
SUB
REAR
REAR CENTER
FRONT
FRONT
R
L
PRE OUT
PROCESSOR (BALANCED OUTPUTS)
FATHOM REAR CONTROLS (MASTER)
FATHOM REAR CONTROLS (SLAVE)
OR
RECEIVER / PROCESSOR (UNBALANCED OUTPUTS)
TO ADDITIONAL FATHOMS
(IF APPLICABLE)
IMPORTANT
WARNING
WARNING! TURN OFF THE FATHOM V2(s) AND ALL OTHER EQUIPMENT IN
THE SYSTEM BEFORE MAKING OR CHANGING ANY CONNECTIONS!
