Page 25 | Fathom v2
ENGLISH

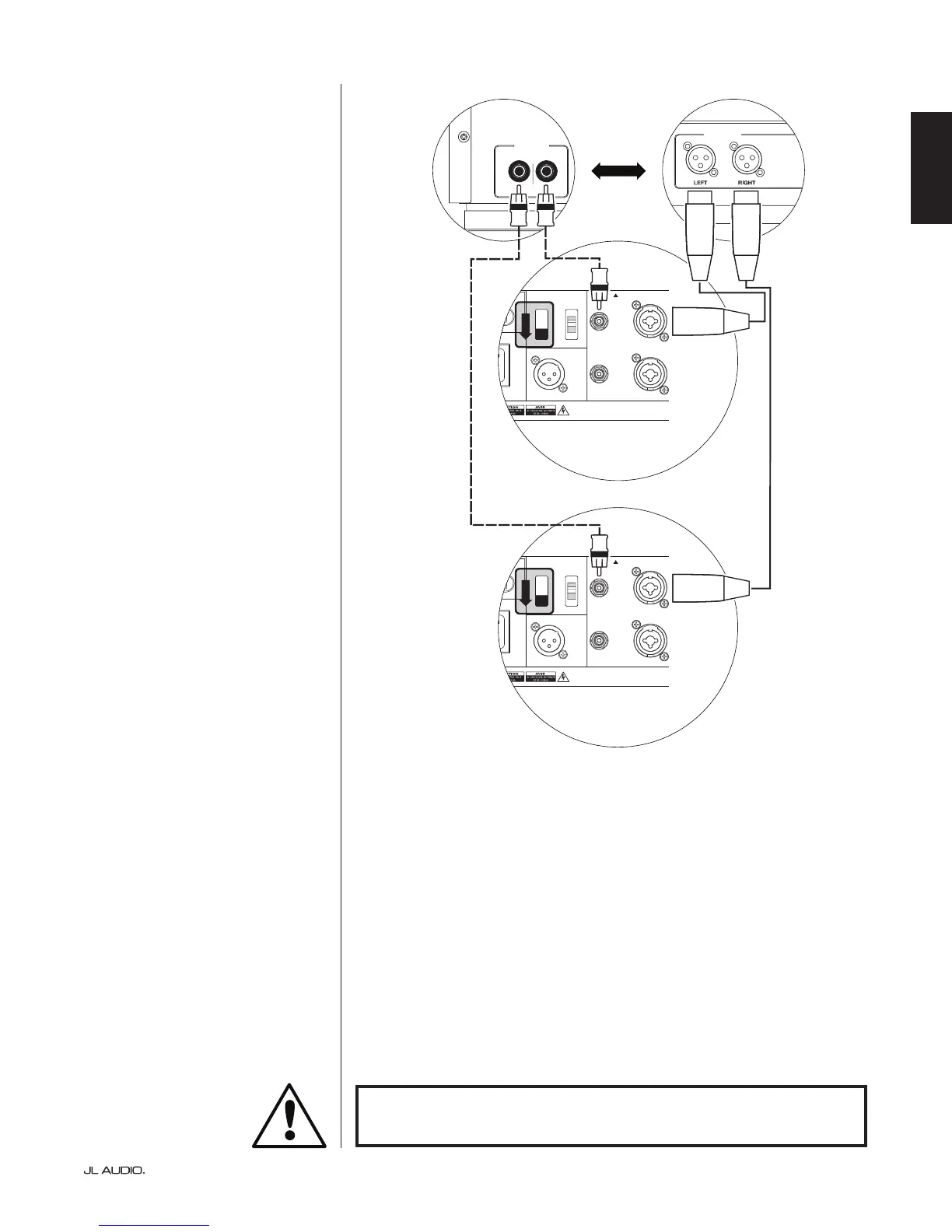

SYSTEM CONNECTION DIAGRAM 4:
Two Fathom v2s in Stereo to
Two-Channel Audio System
When connecting two Fathom v2s in
stereo to a two-channel audio system you
will only use the “Le or Mono” inputs of
each Fathom v2. e upper “Input Mode”
switch on each Fathom v2 will be set in
the “Master” position.
We strongly recommend that you use
a high-quality active crossover, like the
JL Audio CR-1, to divide your
preamplier’s signals prior to connection
to the Fathom v2 and to the amplier
driving your main speakers. is will
allow you to lter low frequencies out of
the signals driving the main speakers,
resulting in better performance.
If you are not using an active crossover
and are comfortable running your main
speakers full-range, you can split your
preamplier’s output signals using
appropriate Y-connectors in place of the
active crossover shown in the diagram.
Two connection types are available
for connecting the Fathom v2s to your
two-channel audio system: balanced
(XLR or 1/4-inch TRS connector) and
unbalanced (RCA-type connector).
Balanced connections provide superior
noise rejection and ensure proper
grounding between components. If your
preamplier or active crossover oers
balanced outputs, we highly recommend
that you use them.
In the connection diagram at right,
balanced connections are shown as solid
lines, unbalanced connections are shown
dotted. You will only use one of these
input connection methods (not both).
NOTE: If desired, additional Fathom v2s
can be connected in “Slave” mode to each
Fathom v2 connected as shown on this
diagram. See “Connection Diagram 2” on
page 23 for slave connection explanation.
LOW OUT
(SUB OUT)
RIGHTLEFT
LOW OUT
(SUB OUT)
1200VA
ilt in USA with Imported and domestic components
LEFT
or
MONO
RIGHT
ONLY
INPUTS
Output to Slave
(Balanced)
Balanced
Unbalanced
Input Modes
Slave
Master
Grounded
Isolated
SERIAL NUMBER:
Warranty void if serial number is removed, altered or defaced.
F 12A H
250V
0 V ~ 60 Hz
F
U
S
E
F
U
S
E
S
l
ave
Master
z
1200VA
ilt in USA with Imported and domestic components
LEFT
or
MONO
RIGHT
ONLY
INPUTS
Output to Slave
(Balanced)
Balanced
Unbalanced
Input Modes
Slave
Master
Grounded
Isolated
SERIAL NUMBER:
Warranty void if serial number is removed, altered or defaced.
F 12A H
250V
0 V ~ 60 Hz
F
U
S
E
F
U
S
E
S
l
ave
Master
z
PROCESSOR (BALANCED OUTPUTS)
FATHOM REAR CONTROLS (MASTER)
OR
RECEIVER / PROCESSOR (UNBALANCED OUTPUTS)
FATHOM REAR CONTROLS (MASTER)
WARNING
WARNING! TURN OFF THE FATHOM V2(s) AND ALL OTHER EQUIPMENT IN
THE SYSTEM BEFORE MAKING OR CHANGING ANY CONNECTIONS!
