JL Audio fathom v2 User Manual

| Fathom v2Page 34

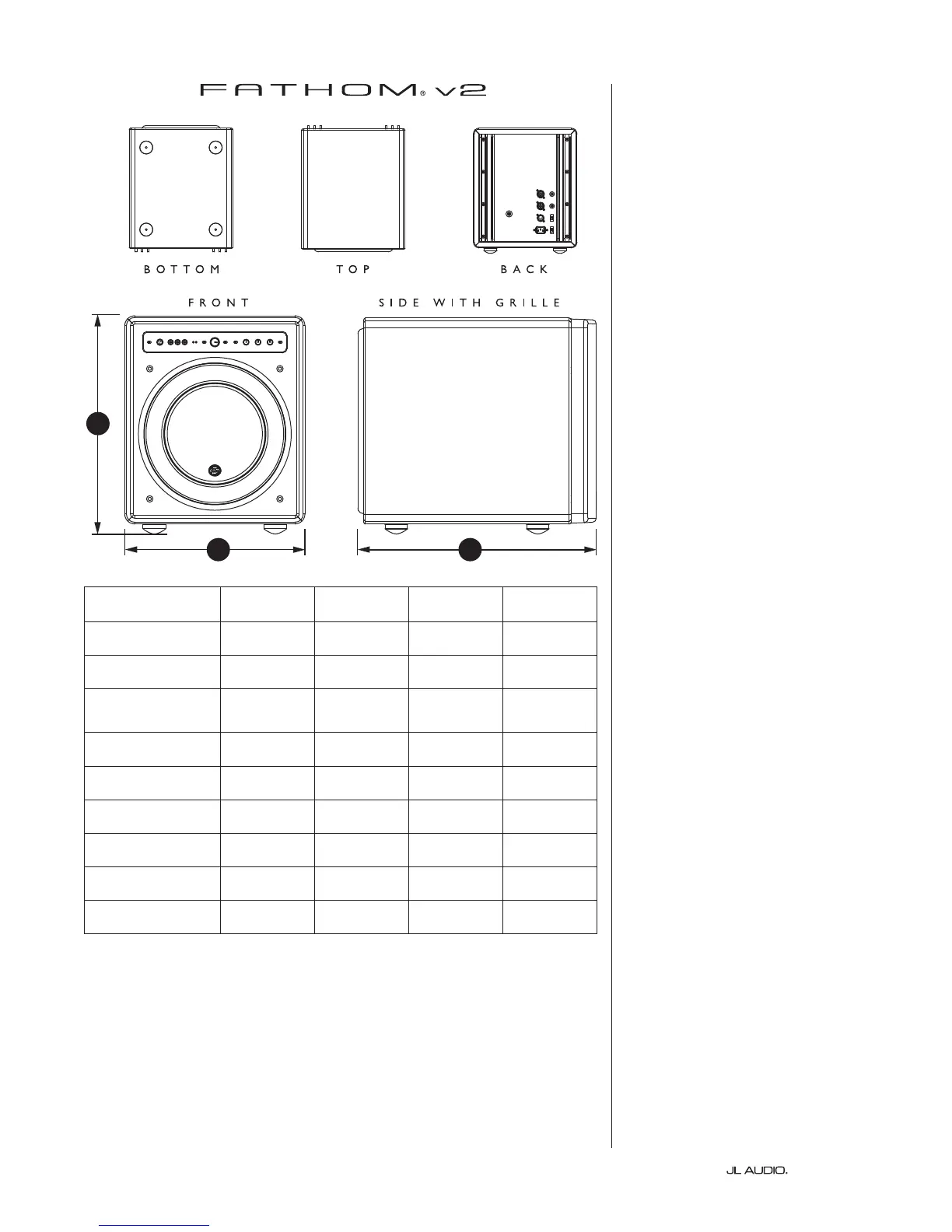

H
W
D
Specifications: f110v2 f112v2 f113v2 f212v2
Enclosure Type: Sealed Sealed Sealed Sealed
Driver:
Single 10-inch
(nominal diameter)
Single 12-inch
(nominal diameter)
Single 13.5-inch
(nominal diameter)
Dual 12-inch
(nominal diameter)
Frequency Response (anechoic):
27 – 111 Hz (±1.5dB)
–3 dB at 25 Hz / 120 Hz
–10 dB at 19 Hz / 155 Hz
21-119 Hz (+1.5dB)
–3 dB at 19 Hz / 150 Hz
–10 dB at 17 Hz / 167 Hz
20-86 Hz (+1.5dB)
–3 dB at 18 Hz / 127 Hz
–10 dB at 16 Hz / 154 Hz
20 - 97 Hz (+/- 1.5 dB)
-3 dB at 19 / 110 Hz
-10 dB at 15 / 157 Hz
Effective Piston Area:
60 in
2
0.0387 m
2
84 in
2
0.0542 m
2
107. 35 in
2
0.0693 m
2
168 in
2
0.1084 m
2
Effective Displacement:
160 in
3
2.6 liters
287 in
3
4.7 liters
386 in
3
6.3 liters
574 in
3
9.4 liters
Amplifier Power:
1100 wa t ts
RMS short-term
1800 watts
RMS short-term
3000 watts
RMS short-term
3600 watts
RMS short-term
Dimensions: (H) x (W) x (D)
Height Dimensions include feet
15.64 x 12.92 x 17.27 in
397 x 328 x 439 mm
18.5 x 15 x 17.625 in
470 x 381 x 448 mm
19.625 x 16.5 x 19.25 in
498 x 419 x 489 mm
31.96 x 14.92 x 20.39 in
812 x 379 x 518 mm
Net Weight:
69 lbs
31 kg
117 lbs
53 kg
133 lbs
60 kg
224 lbs
102 kg
Cabinet Finish:
High-Gloss Black High-Gloss Black High-Gloss Black High-Gloss Black
FEATURES
Unbalanced Inputs:
Stereo or Mono (two RCA jacks)
Balanced Inputs:
Stereo or Mono (two female XLR jacks)
Output To Slave:
Balanced (one male XLR jack)
Input Modes:
Master or Slave
Level Modes:
Reference (xed gain) or Variable from
full mute to +15dB over reference gain
Power Modes:
O, On or Automatic Signal-Sensing
Light Modes:
O, On or Dim
Low Pass Filter Mode:
O, 12 dB per octave or 24 dB per octave
Low Pass Filter Cuto Frequency:
Variable from 30 Hz – 130 Hz
Polarity:
0 or 180 degrees
Phase:
Variable from 0 – 270 degrees
E.L.F. Trim:
Variable from –12 dB to +3 dB at 24 Hz
Digital Automatic Room Optimization
(D.A.R.O.)
Automatic, 18-band digital equalizer with
included laboratory-grade calibration
microphone, defeatable.

JL Audio fathom v2 Specifications

General

Brand	JL Audio
Model	fathom v2
Category	Subwoofer
Language	English
