SECTION 2 - USER RESPONSIBILITIES, MACHINE PREPARATION, AND INSPECTION
2-12 3121627
90°
9
0
°

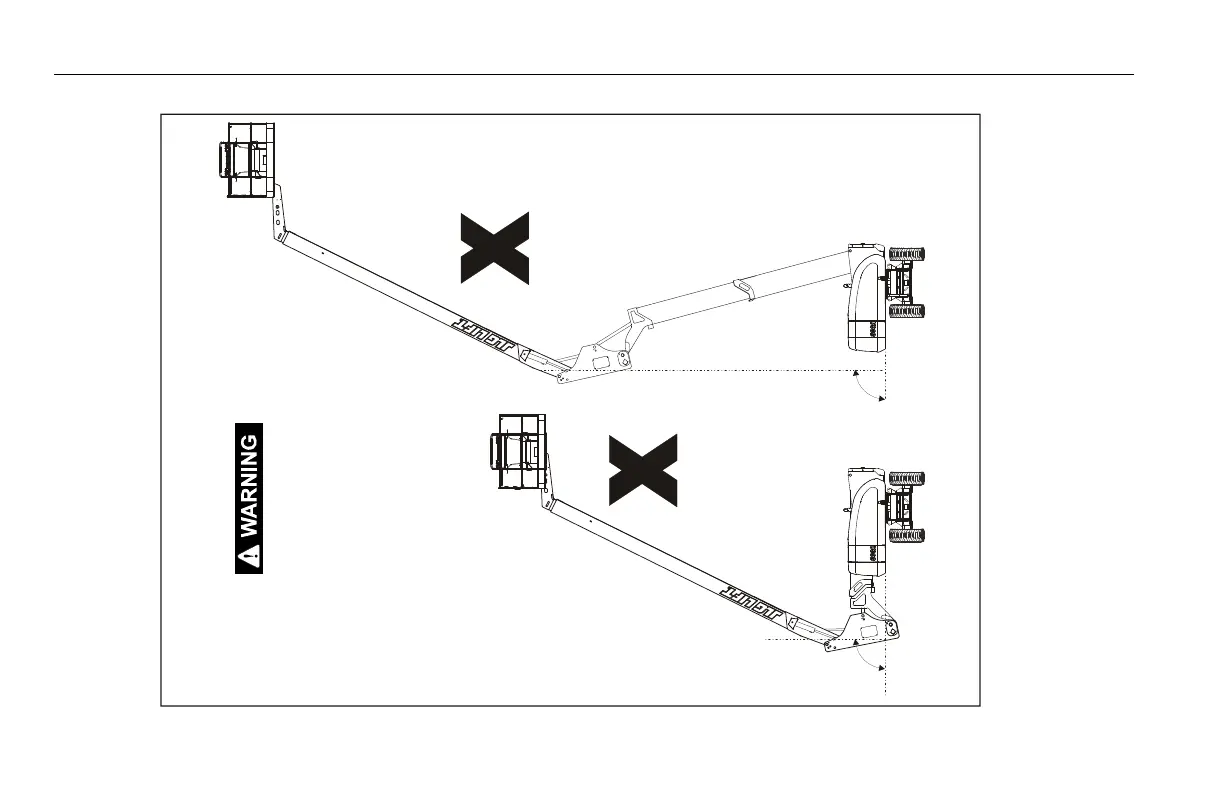

Figure 2-8. Boom Upright Positioning - Incorrect
TO AVOID TIPPING IF THIS OCCURS: -LOWER PLATFORM TO GROUND USING MAIN BOOM LIFT AND TELESCOPE FUNCTIONS. HAVE CONDITION COR- RECTED BY A TRAINED JLG SERVICE TECHNICIAN BEFORE CONTINUING USE OF MACHINE.
INCORRECT
INCORRECT
