SECTION 3 - MACHINE CONTROLS AND INDICATORS
3121627 3-17

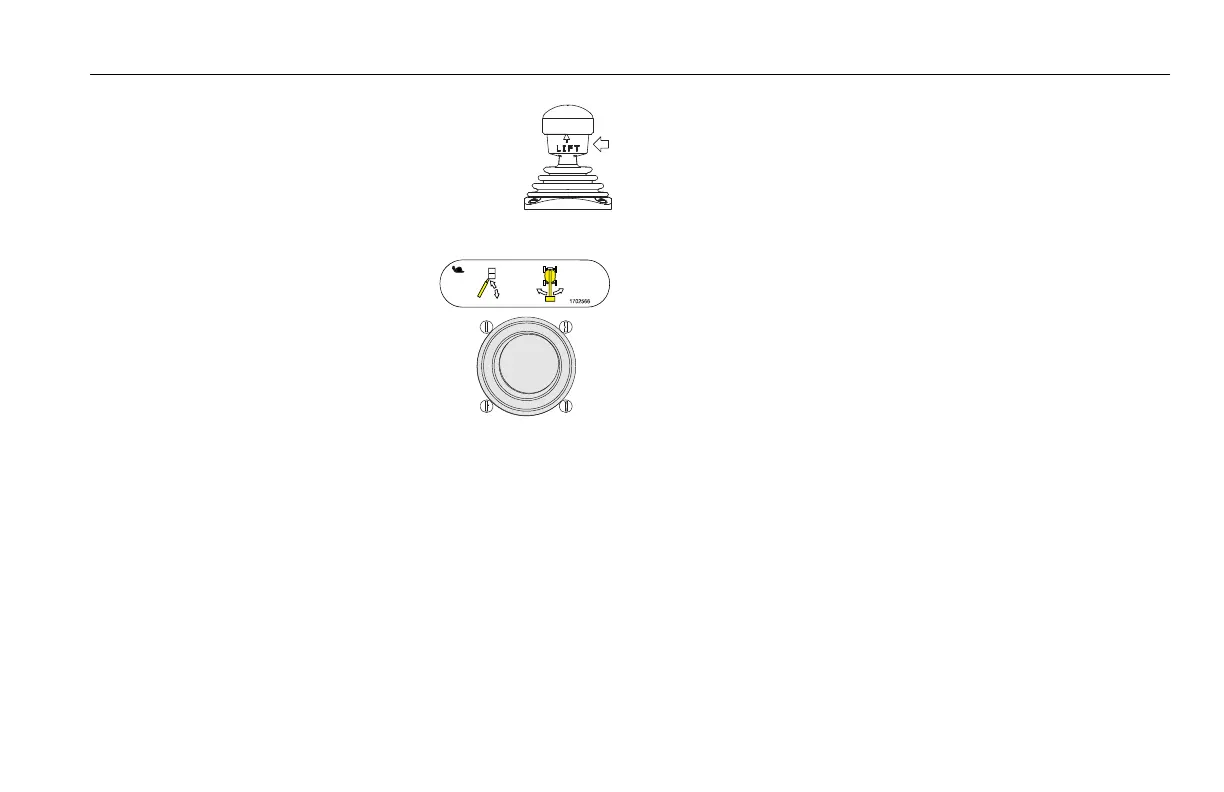

NOTE: To operate the Main Boom Lift/Swing joystick,
pull up on the locking ring below the handle.
NOTE: The Main Boom Lift/Swing joystick is spring
loaded and will automatically return to neutral
(off) position when released.
19. Main Lift/Swing Controller
Provides main lift and swing. Push
forward to lift up, pull backward
to boom down. Move right to
swing right, move left to swing
left. Moving the joystick activates
switches to provide the functions
selected.
NOTE: Main boom lift and swing functions may be selected in combi-
nation. Maximum speed is reduced when multiple functions are
selected.
