SECTION 4 - MACHINE OPERATION
3121710 4-7
Traveling on a Grade
When traveling a grade, maximum braking and traction are obtained
with the boom stowed, in position over the rear (drive) axle, and in
line with the direction of travel. Drive the machine forward when
climbing a grade, and in reverse when descending a grade. Do not
exceed the machine's maximum rated gradability.
IF THE BOOM IS OVER THE FRONT (STEER) AXLE, DIRECTION OF STEER AND DRIVE
MOVEMENT WILL BE OPPOSITE FROM THE MOVEMENT OF THE CONTROLS.
4.5 STEERING
Position thumb switch on Drive/Steer controller to RIGHT for
steering right, or to LEFT for steering left.
4.6 PLATFORM
Platform Level Adjustment
To Level Up or Down - Position the Platform/Level control switch
Up or Down and hold until the platform is level.
ONLY USE THE PLATFORM LEVELING OVERRIDE FUNCTION FOR SLIGHT LEVELING
OF THE PLATFORM. INCORRECT USE COULD CAUSE THE LOAD/OCCUPANT TO SHIFT OR
FALL. FAILURE TO DO SO COULD RESULT IN DEATH OR SERIOUS INJURY.
Platform Rotation
To rotate the platform to the left or right, use the Platform Rotate
control switch to select the direction and hold until desired posi-
tion is reached.

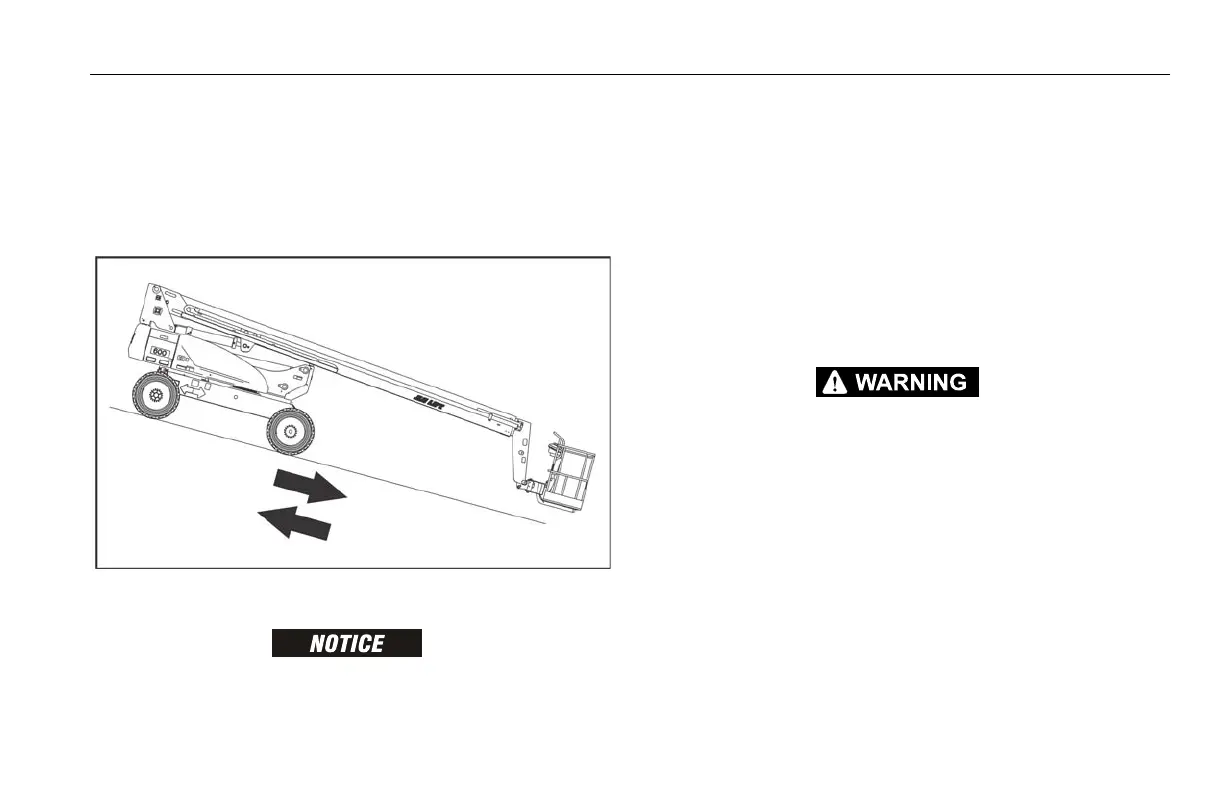

Figure 4-4. Traveling on a Grade
