JLL R200 Owner's Manual

- 5 -

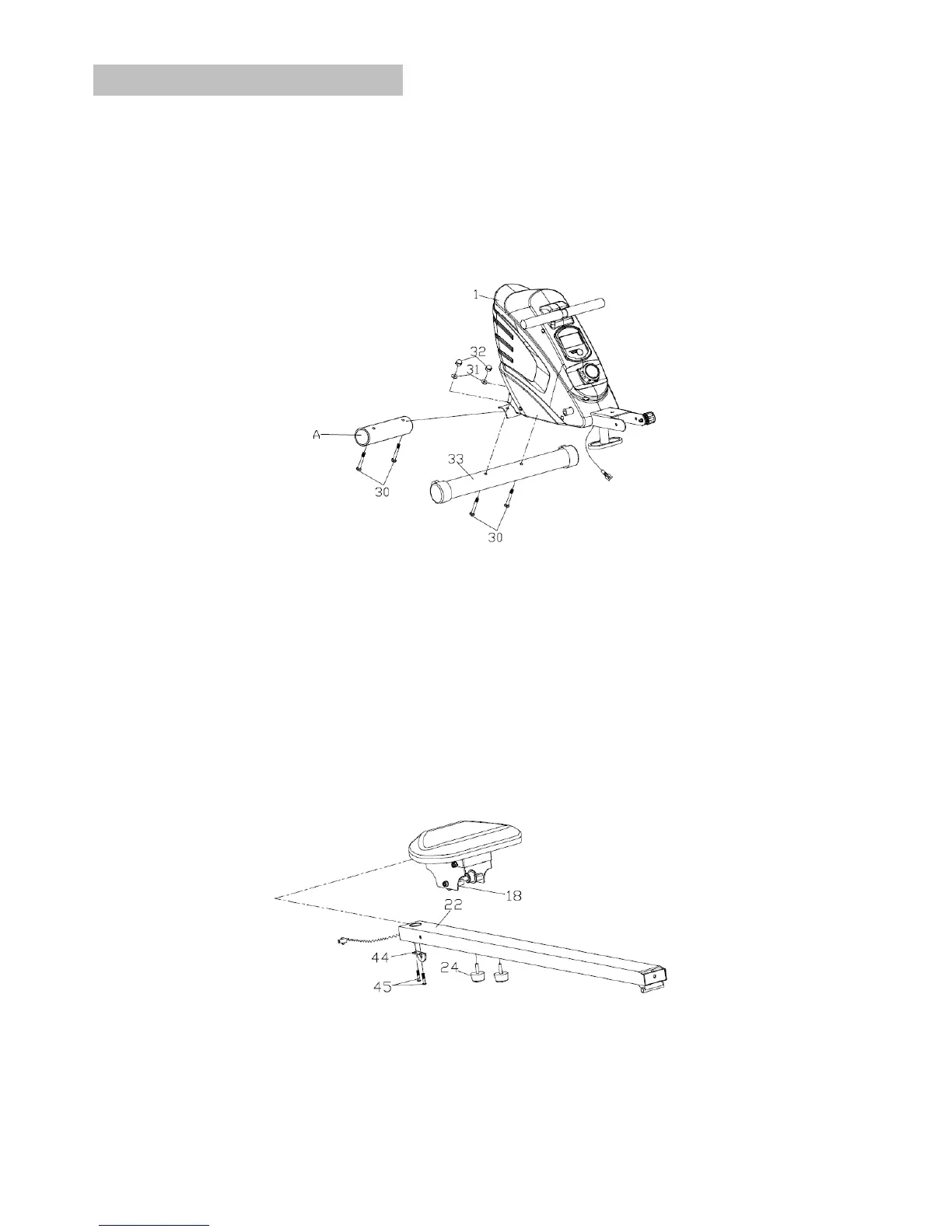

ASSEMBLY INSTRUCTIONS
STEP 1:
1. Remove the Carriage bolt (30), paper tubes (A), arc washer (31), and cap nut (32) from the front
bottom tube (33).
2. Tighten the front bottom tube (33) to the main frame (1) with carriage bolt (30), arc washer (31),
and cap nut (32).
STEP 2:
1. Take off the cushion (24), screw (45), plate (44), then insert the slide rest (18) onto the slide
way (22), and tighten the cushion (24) to the slide way (22).
2. Tighten the plate (44) to the slide way (22) with screw (45).
