JM Concept ULCOS 920D2 - Alarm Configuration Settings; Basic Alarm Setup and Display; Alarm Type and Setpoint Configuration; Alarm Hysteresis and Delay Configuration

PROGRAMMATION / PROGRAMMING
29

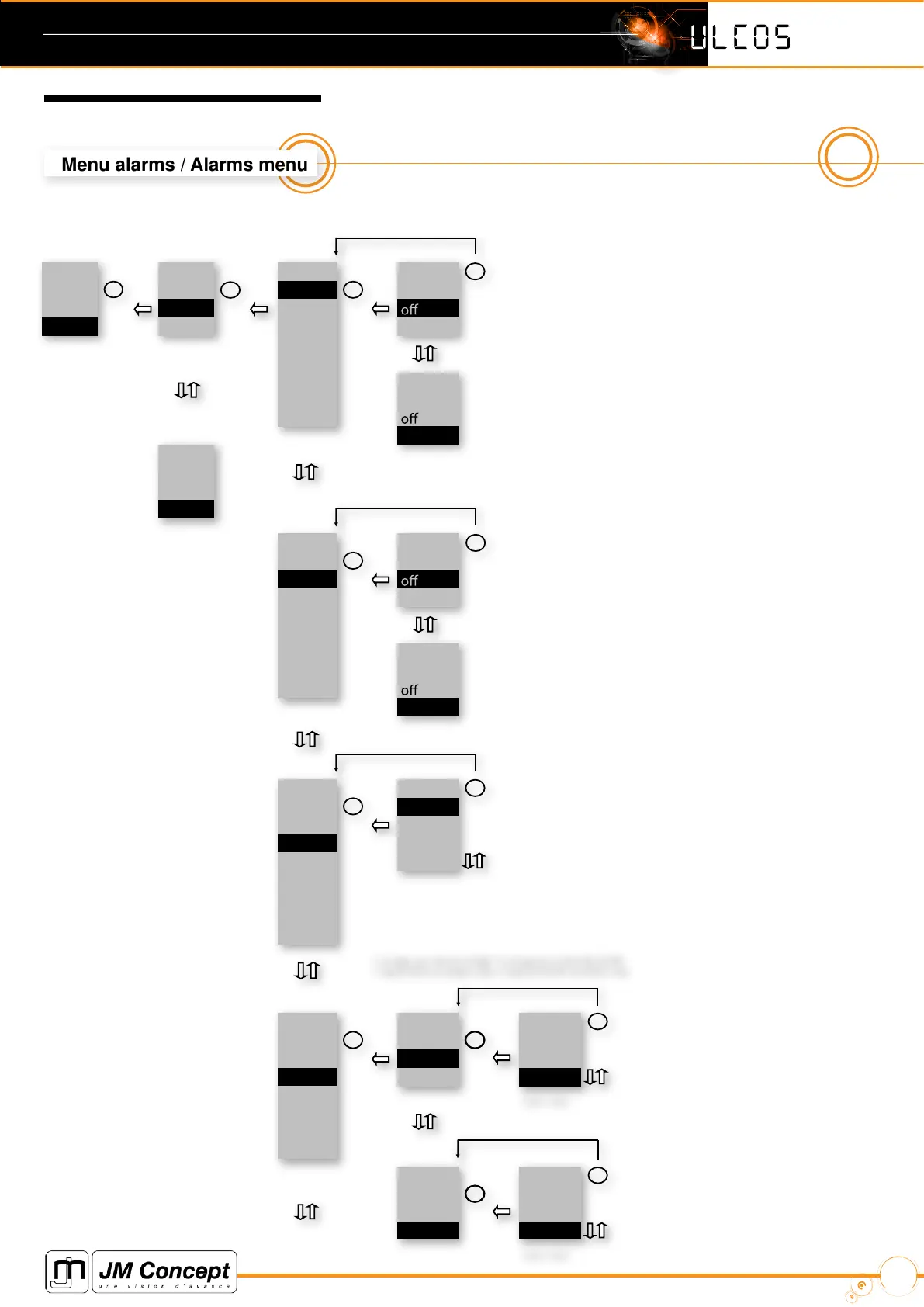

Menu alarms / Alarms menu
1/2
CONF ALRM ALx ALRM
Inpt Disp DISP
Outp AL1 Rlay
Alrm AL2 Type on
SetP
Hyst
Dlay ALRM
Rupt DISP
Memo
on
ALRM
AL1
AL2
ALx RLAY
Disp STAT
Rlay
Type on
SetP
Hyst
Dlay RLAY
Rupt STAT
Memo
on
ALx TYPE
Disp low
Rlay high
Type bdlo
SetP bdhi
Hyst
Dlay
Rupt
Memo
1 consigne si modes low et high / 2 consignes si modes bdlo et bdhi
1 setpoint if low and high modes / 2 setpoints if bdlo and bdhi modes
ALx SETP STP1
Rlay VAL. VAL.
Type StP1
SetP StP2 70.0
Hyst
-1999 / 9999
Dlay
Rupt
Memo
SETP STP2
VAL. VAL.
StP1
StP2 80.0
-1999 / 9999
