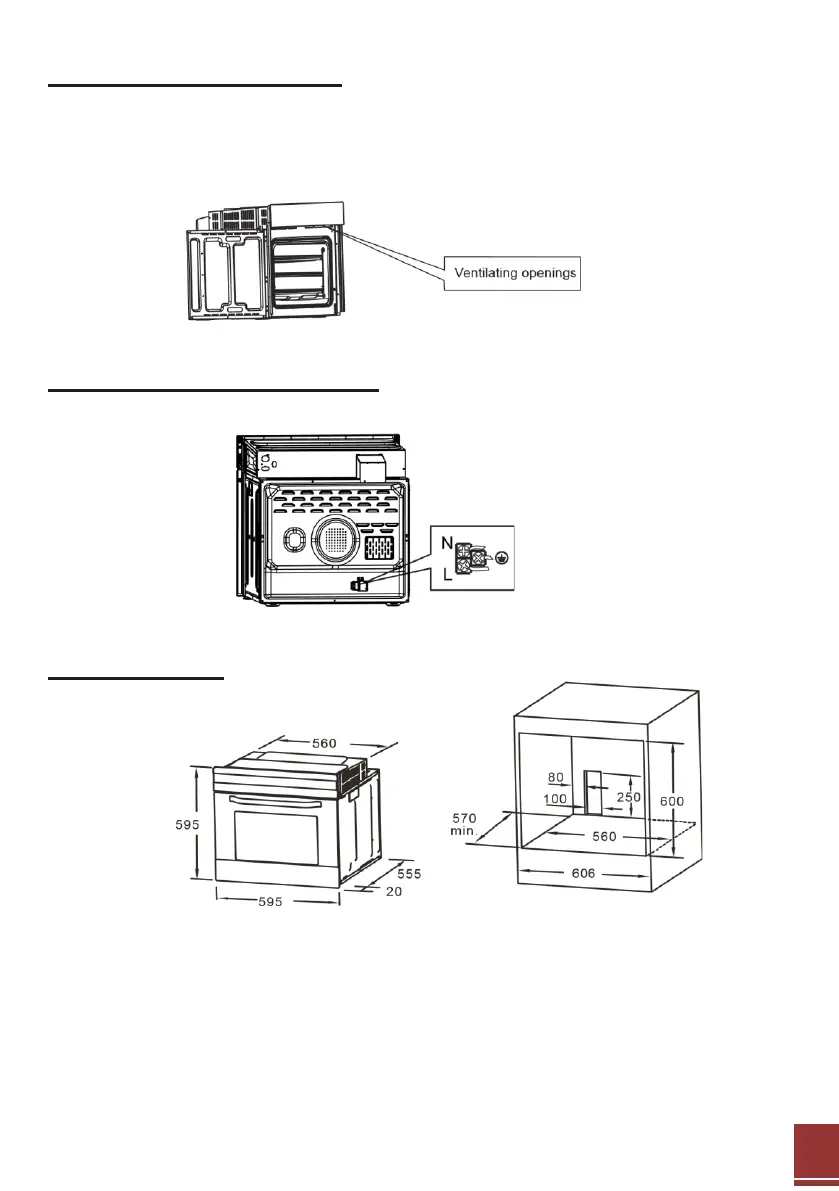

Jocel JFE014610 - Ventilating Openings; Connection of the Oven; Installation

39
VENTILATING OPENINGS
1166
When cooking is finished or in pause state or in waiting state, if the oven's center
1167
temperature is over 75 degree, the cooling fan will continue working for 15 minutes.
1168
Or when the oven's center temperature becomes lower than 75 degree, the cooling
1169
fan will stop in advance.
1170
1171
CONNECTION OF THE OVEN
1172
1173
1174
INSTALLATION
1175
1176
1177
Remark:
1178
1.Only plus deviations are admissible for all dimension.
1179
2.The cabinet don’t include the power switch or socket.
1180
3.The cabinet dimension is in mm.
1181
NOTE: The number of accessories included depends on the particular appliance
1182
purchased.
1183
