1.3 Dimensions of the banknote reader

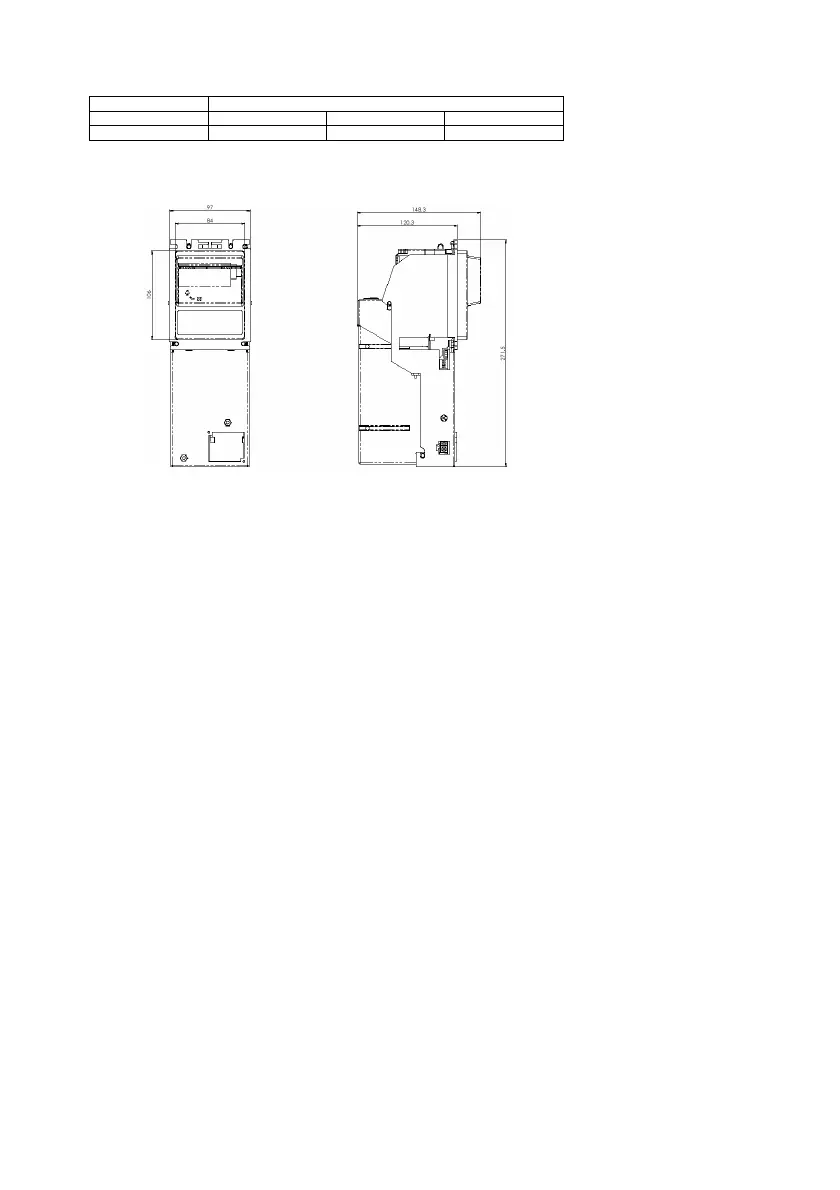

DIMENSIONS (mm)
BT10 Model Width Depth Height
With stacker 97 148.3 271.5
1.4 Electronic characteristics of the banknote reader
• 4 optical sensors explore the complete light spectrum for more reliability.
• Magnetic sensor to check additional security features in euro banknotes.
• Standard MDB banknotes.
• Validates banknotes in any of four possible positions.
• Flash memory for easy program updating.
• Banknote patterns can be re-programmed via a PC
• Operating temperature range: -10 to +60 °C
• Standard MDB input voltage range: 20 ... 42 V.
• Peak current 1 Amp.
• It can store up to 24 different banknote face patterns.
• Security level (high acceptance/high security) can be selected by user.
