Set up
Connecting the powercord
1. Check if the voltage as indicated on the serial number plate matches the main power voltage
the system will be connected to. The serial number plate is located at the back of the
acoustic device.

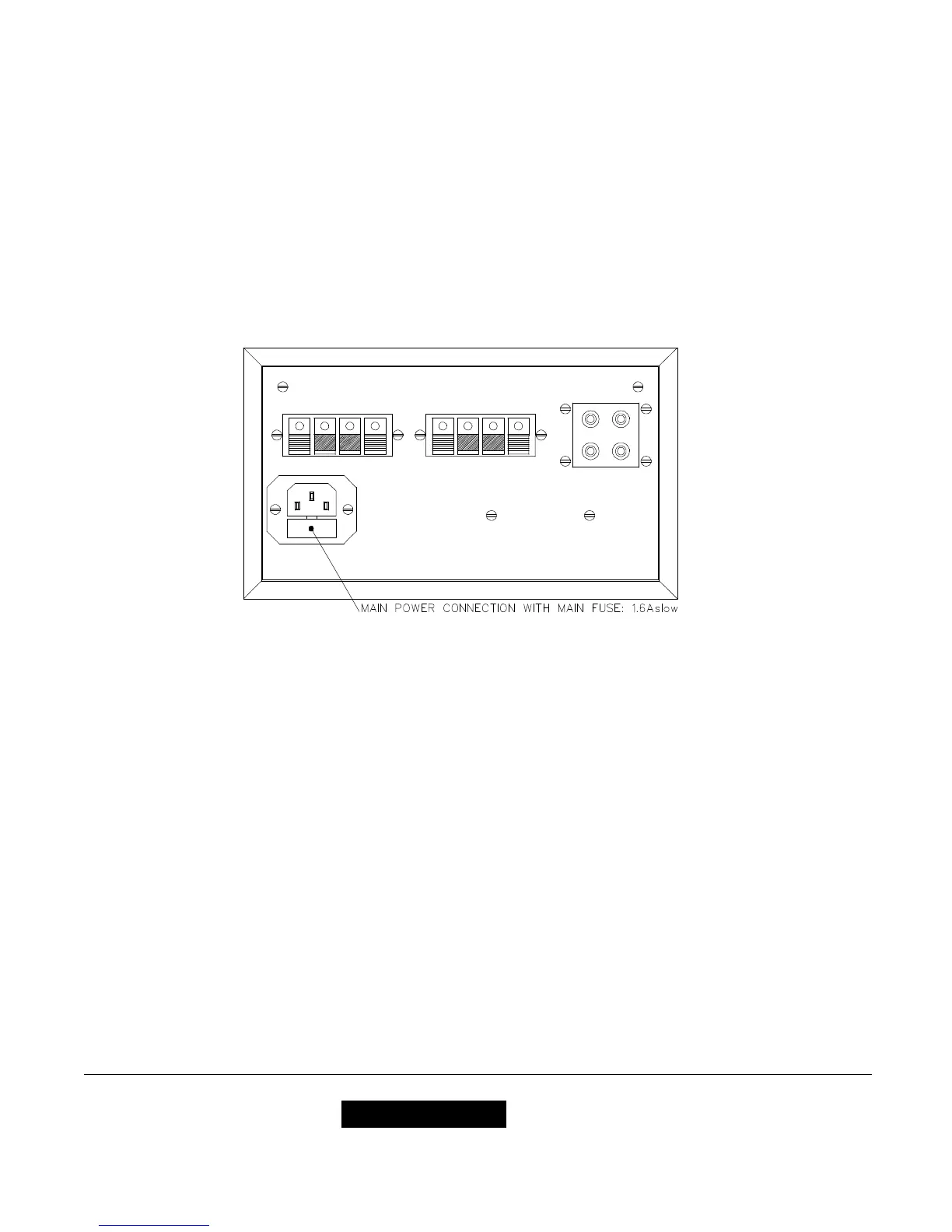

2. Connect the supplied power cord to the main power connection. Integrated in the main power
connection is the main fuse (see drawing).
3. Connect the acoustic system to a grounded outlet. If it is not grounded some functions may
not work apropriate.
Switching on
First switch on the connected devices like the organ and e.g. a Hifi-equipment. Then switch on
the acoustic device by pushing the power switch. The power switch indicator light will light up.

Johannus DSA-4 Specifications

Acoustic System

voltage	230V (110V)
frequency	50 Hz (60 Hz)
max supplied power	120Watt
max power per channel	20Watt
impedance per channel	8Ù
input impedance	1MÙ
input level	-10dBV tot +4dBV
input level max	+10dBV
frequency range	20Hz till 20.000Hz (± 1dB)
dimensions	21, 6 x 13, 2 x 19, 3cm (8.1" x 5.2" x 7.6")
weight	3, 5kg ( 7.7lbs)

Loudspeaker Boxes

system	2-way
impedance	8Ù
power nominal	50Watt
power max	100Watt
frequency range	29Hz till 22.000Hz
dimensions	24, 1 x 39, 1 x 22, 0 cm (9.5"x15.4"x8.7")
weight	4, 6kg ( 10 lbs)
