John Bean EELR537A - Page 14

Model EELR537A
Installation, Operation and Maintenance
Page 14
Rev. 09/16/2021
EELR537A-IOM.
doc

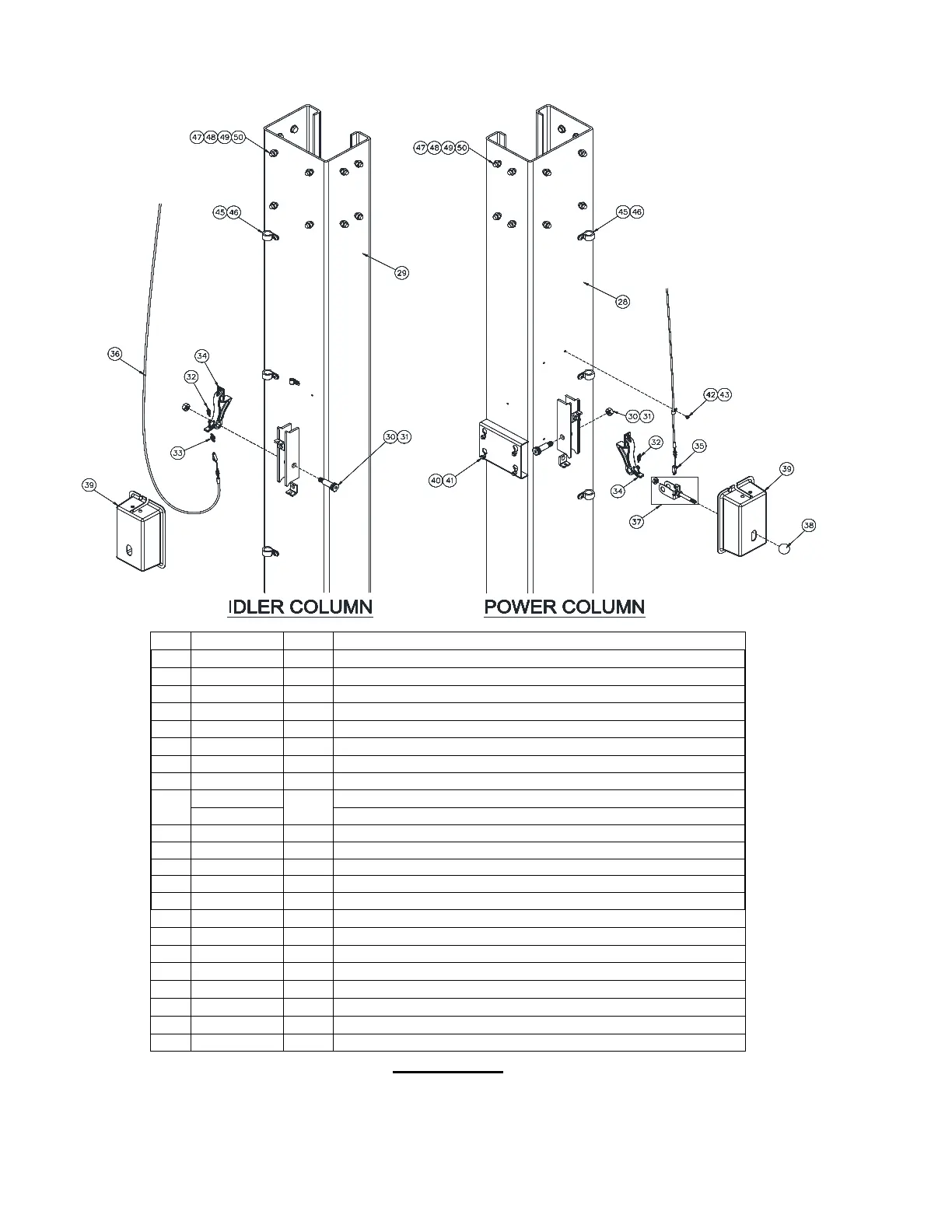

ITEM # PART # QTY/LIFT DESCRIPTION
28 L6-02-01-00 1 POWER COLUMN WELD
29 L6-02-01-00F 1 IDLER COLUMN WELD
30 1-16288a 2 SHOULDER BOLT
31 1-16388A 2 M12 LOCK NUT
32 JSJ5-02-07CH 2 LOCK SPRING, 3/8” O.D.
33 JSJ5-02-08CH 1 LOCK SPRING, ½” O.D.
34 B1140 2 LOCK PAWL
35 37119 1 CLEAVIS PIN KIT
36
L5-06-00CHH
1
LOCK RELEASE CABLE ASSEMBLY (Std. Height)
L6-06-00CHH LOCK RELEASE CABLE ASSEMBLY (2Ft. Ext. Height)
37 JSJ5020400CH 1 LOCK ASSEMBLY
38 JSJ3-01-02-2-9 1 LOCK KNOB
39 JSJ5-02-14CH 2 LOCK COVER
40 X10-060 4 M8 x 25mm BOLT
41 X10-048 4 M8 NUT
42 1-06182A 2 5mm HOSE CLAMP
43 1-15988A 2 M5 x 10mm PAN HEAD SCREW
45 1-03382A 7 16mm HOSE CLAMP
46 VS10-10-25 7 M8 x 12mm PAN HEAD SCREW
47 X10-037 24 M12 x 30mm BOLT
48 X10-038 24 M12 WASHER
49 X10-039 24 M12 LOCK WASHER
50 X10-040 24 M12 NUT
IMPORTANT
Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local
Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at (501)
450-1500 for the distributor in your area.
