Model EELR537A
Installation, Operation and Maintenance
Page 2
Rev. 09/16/2021
EELR537A-IOM.
doc
GENERAL SPECIFICATIONS
* Lift capacity ratings are based on loads equally distributed on all four arms.
** Lifting and lowering speeds may vary depending on the weight of the vehicle.

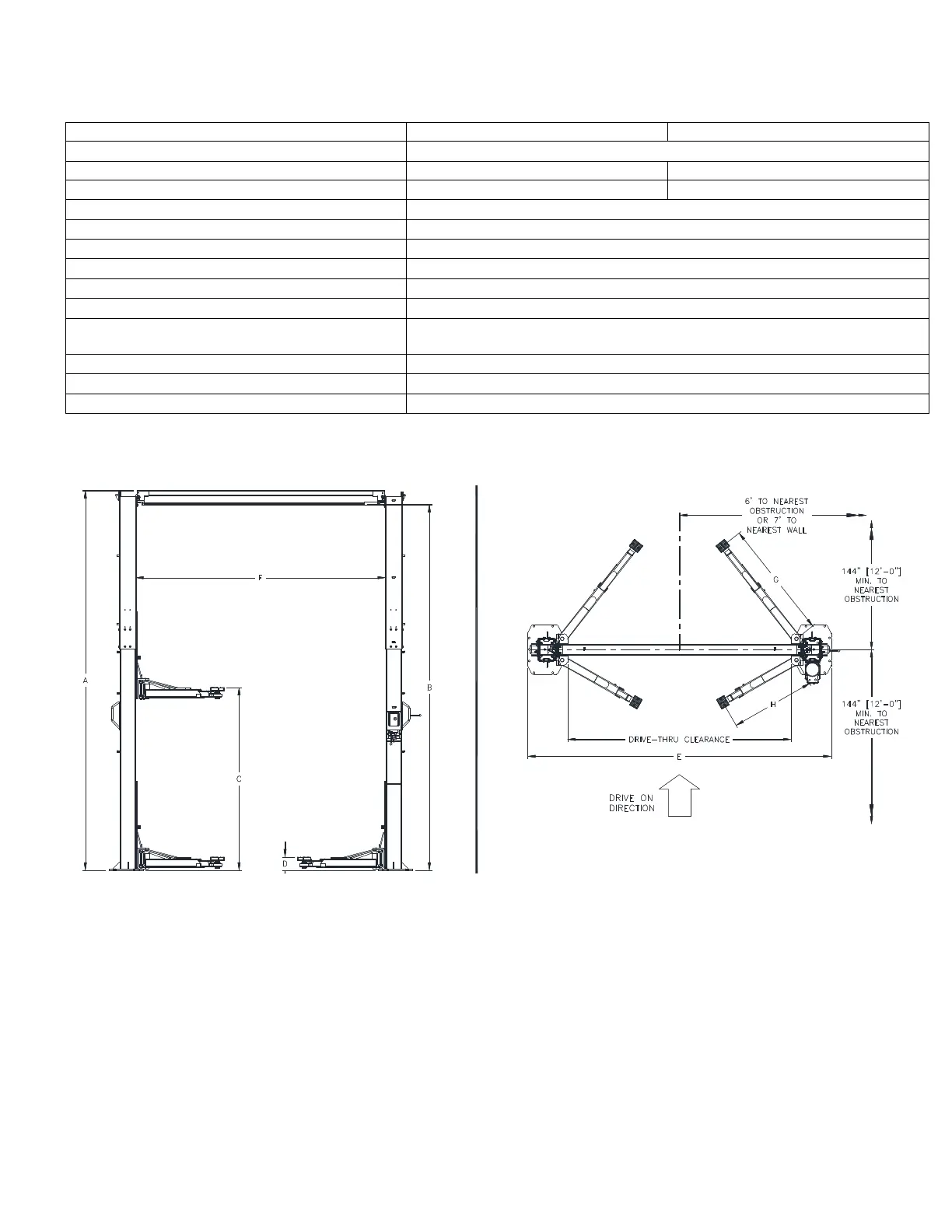

Fig 1a - General Specifications Fig1b - Service Bay Layout
See Figure 1 EELR537A EELR537A w/ 2 Ft. Ext. Kit
A Overall Height
13’-10"/14’-7”
(4216 mm/4445 mm)
Ceiling Height Required
167"/176”
(4242mm/4470mm) 191"/200” (4852mm/ 4890mm)
B Floor to Overhead Switch
13’-3 ½"/14’-½”
(4051mm/4280 mm)
15’-3 ½"/16’-½”
(4661mm /4890mm)
C Max Rise Height (Screw Pads Only)
77 3/4"
(1975 mm)
D Screw Pad Height
5 1/4"/ 6 3/4"
(133mm/171mm)
E Overall Width
139 3/4"
(3550 mm)
F Inside of Columns
115"
(2921 mm)
Drive-Thru Clearance
103"
(2616 mm)
Arm Reach (Min.-Max.)
35 3/4"
(910 mm) - 54 1/2" (1386 mm)
* Lifting Capacity *
(Hydraulic Pressure at Cap.)
12,000 lbs. [3000 lbs Per Arm]
(2600 psi)
Motor
2HP, Single Phase, 60Hz, 208/230V
** Rise Time 84 seconds (approximate)
Lift Approximate Weight
2000 lbs
(907 kg)
