John Bean EELR537A - Parts Breakdown

Model EELR537A
Installation, Operation and Maintenance
Page 13
Rev. 09/16/2021
EELR537A-IOM.
doc

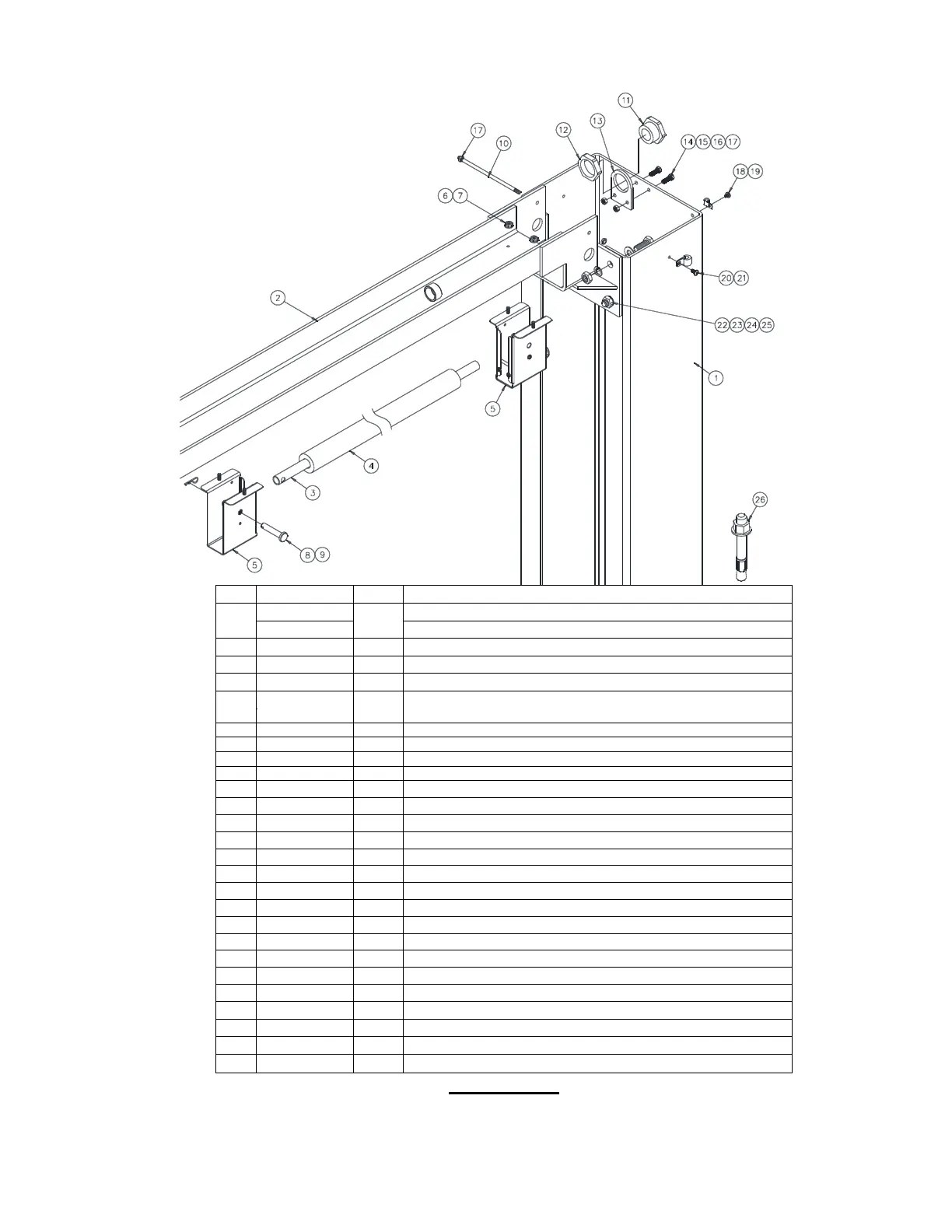

PARTS BREAKDOWN
ITEM # PART # QTY/LIFT DESCRIPTION
1
L6-02-02-01
2
COLUMN EXTENSION (Std. Height)
L6-02-02-01H COLUMN EXTENSION (2Ft. Ext. Height)
2 L6-03-01-00K 1 OVERHEAD WELD, BLACK
3 JSJ6-03-02 1 OVERHEAD SHUT OFF BAR
4 JSJ5-03-03 1 OVERHEAD SHUT OFF BAR CUSHION
5 B2064-01 1
LIMIT SWITCH PACKAGE
(INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 6-9)
6 2065-3 4 M6 x 14mm PHILLIPS PAN HEAD SCREW
7 2065-4 4 M6 SERRATED FLANGE HEX NUT
8 2065-5 1 CLEVIS PIN 10mm x 55 Lg.
9 GJY12-3 1 HAIRPIN COTTER
10 JSJ5-03-07ch 2 CABLE TRAPPING ROD
11 JSJ4-02-17 2 HOSE GUIDE
12 JSJ4-02-18 2 HOSE GUIDE NUT
13 JSJ4-02-02-02 2 HOSE GUIDE BRACKET
14 X10-051 4 M6 x 20mm BOLT
15 X10-033 4 M6 LOCK WASHER
16 X10-032 4 M6 WASHER
17 X10-034 8 M6 NUT
18 1-05082A 2 5mm HOSE CLAMP
19 X10-065 2 M5 x 10mm PAN HEAD SCREW
20 1-03382A 5 16mm HOSE CLAMP
21 VS10-10-25 5 M8 x 12mm PAN HEAD SCREW
22 X10-037 8 M12 x 30mm BOLT
23 X10-038 8 M12 WASHER
24 X10-039 8 M12 LOCK WASHER
25 X10-040 8 M12 HEX NUT
26
31058
14
3/4”x5- 1/2” Concrete Anchor
IMPORTANT
Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local
Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at (501)
450-1500 for the distributor in your area.
