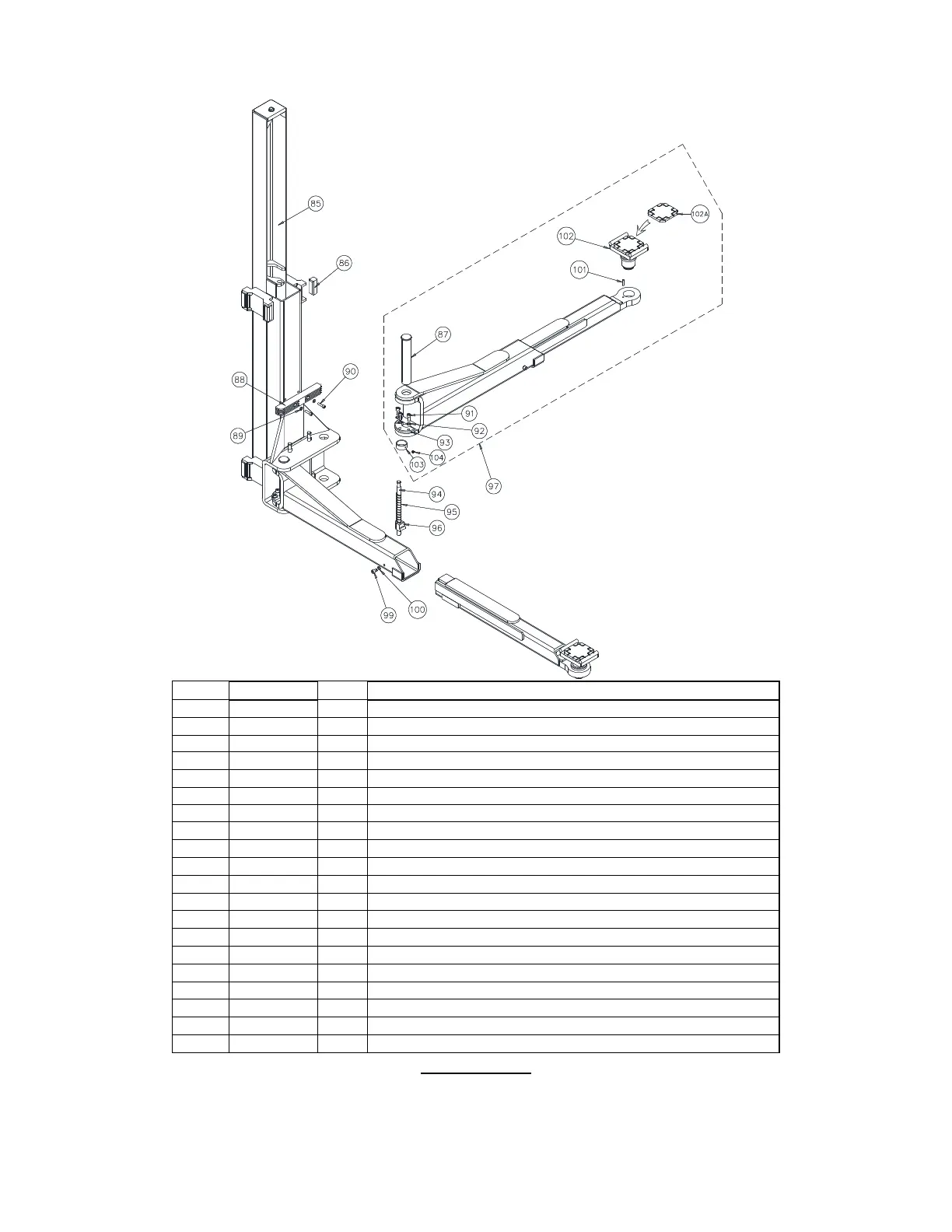

ITEM # PART # QTY/LIFT DESCRIPTION
85 JSJ6-08-00K 2 CARRIAGE
86 JSJ5-08-15 16 SLIDE BLOCKS
87 JSJ6-11 4 ARM PIN
88 JSJ4-05-ch 2 DOOR GUARD
89 X10-087 4 M8 WASHER
90 X10-088 4 M8 x 30mm Lg. SOCKET HEAD BOLT
91 X10-077 12 M10 x 25mm Lg. SOCKET HEAD BOLT
92 X10-074 12 M10 LOCK WASHER
93 JSJ6-09-07 4 INNER GEAR
94 JSJ6-13 4 ARM RESTRAINT SHAFT
95 JSJ6-14 4 ARM RESTRAINT SPRING
96 JSJ6-12 4 OUTER GEAR
97 JSJ6-09-00K 4 ARM ASSEMBLY
99 JSJ4-09-08 4 M10 x 14 STOP BOLT, DOG POINT
100 X10-073 4 M10 WASHER
101 B2211 4 M6 ROLL PIN
102 B12162S-12 4 FOOT PAD ASSEMBLY – 12K
102A A1104-H 4 PAD
103 JSJ5-22CH 4 40.5 x 48 x 20mm Lg. Collar
104 JSJ5-23CH 4 M8 x 8 Set Screw Cup Point
IMPORTANT
Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local
Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at
(501) 450-1500 for the distributor in your area.
