LP19478 LP19479 (10/5/2018) 18 15 & 25 GALLON TOW BEHIND SPRAYER
Service

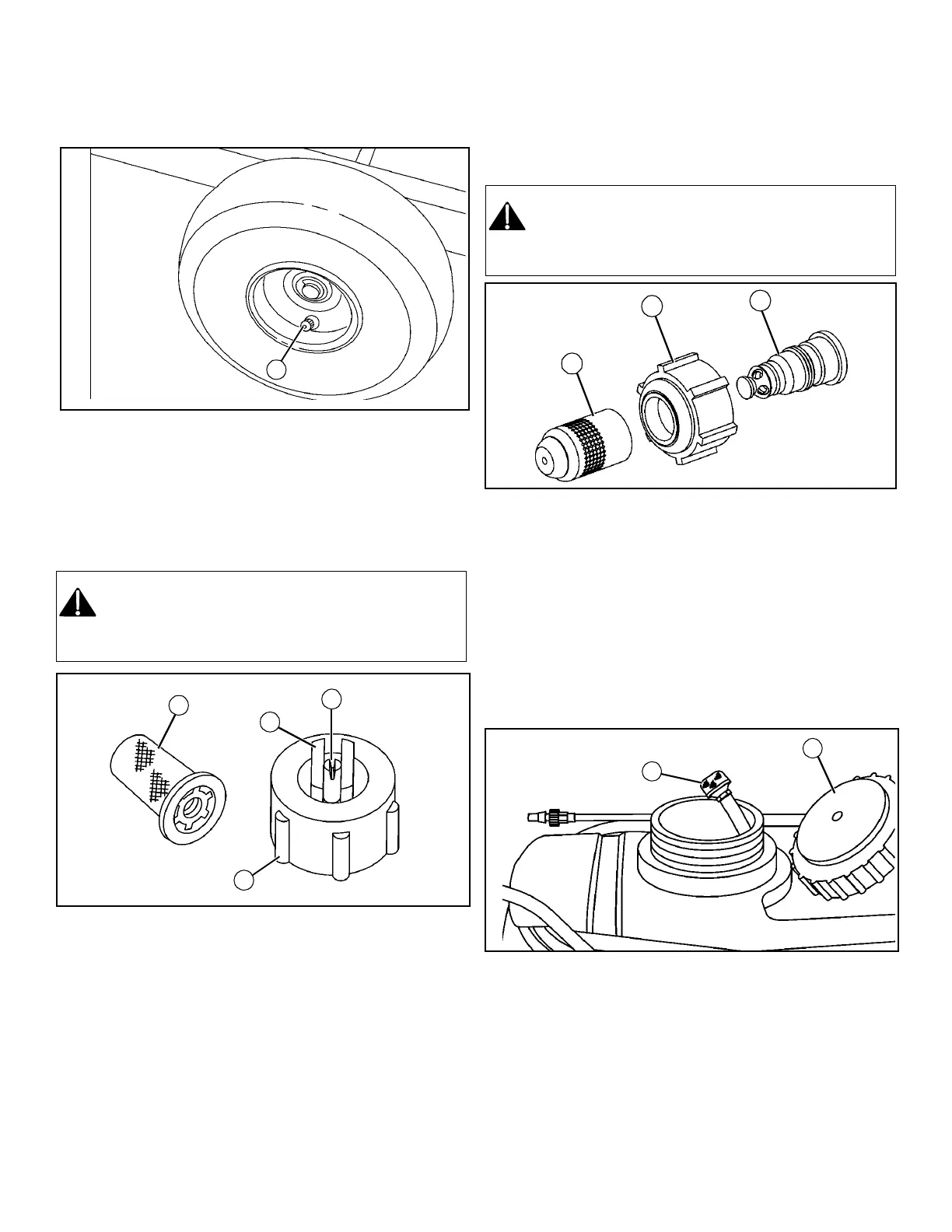

Check tire pressure at point (A).
• Tire pressure should be 207 kPa (30 psi).
Tire Size:
• 15 and 25 Gallon Sprayer, 4.10 x 3.50 - 4
A
Checking Tire Pressure
Clearing Spray Nozzle
Cleaning Spray Wand Nozzle
NOTE: There are two dierent styles of nozzles for
your sprayer. See below for explanation of each style.
CAUTION: Avoid injury! Do not put nozzle tip
or other prayer parts to your lips to blow out
dirt. Use compressed air or clean water.
CAUTION: Avoid injury! Do not put nozzle tip
or other prayer parts to your lips to blow out
dirt. Use compressed air or clean water.
D
A
B
C
1. Remove spray nozzle (A) from sprayer.
2. Disassemble lter (B) and spray tip (C).
NOTE: Do not use a wire to clean opening (D) in spray
tip.
3. Wash lter and spray tip in a non-ammable solvent.
4. Put spray tip in spray nozzle.
5. Put at side of lter in spray nozzle.
6. Install assembly on sprayer and tighten nozzle.
A
C
B
1. Remove nozzle (A) from the spray tip (B).
2. Loosen nut (C), and remove the spray tip (B) from the
angled tting on the wand.
3. Wash nozzle (A), and spray tip (B) with liquid detergent
and warm water.
4. Inspect O-rings and replace as needed.
5. Slide nut (C) over the spray tip (B), and install on
angled tting on wand.
6. Install nozzle (A) on spray tip (B).
Cleaning Pump Suction Screen
B
A
1. Remove tank cover (A).
2. Locate suction screen (B) inside sprayer tank.
3. If necessary, unscrew suction screen and clean with
liquid detergent and warm water.
4. If suction screen was removed, install on suction hose
and position in lowest depression inside tank.
5. Install and tighten tank cover.
