LP19478 LP19479 (10/5/2018) 9 15 & 25 GALLON TOW BEHIND SPRAYER
Assembly
Level Sprayer
1. Level, straighten and center boom with back of sprayer.
2. Tighten hardware:
• (2) Nuts, 3/8 in. (A)
• (2) Locking Knobs (B)
C
D
A
B
E

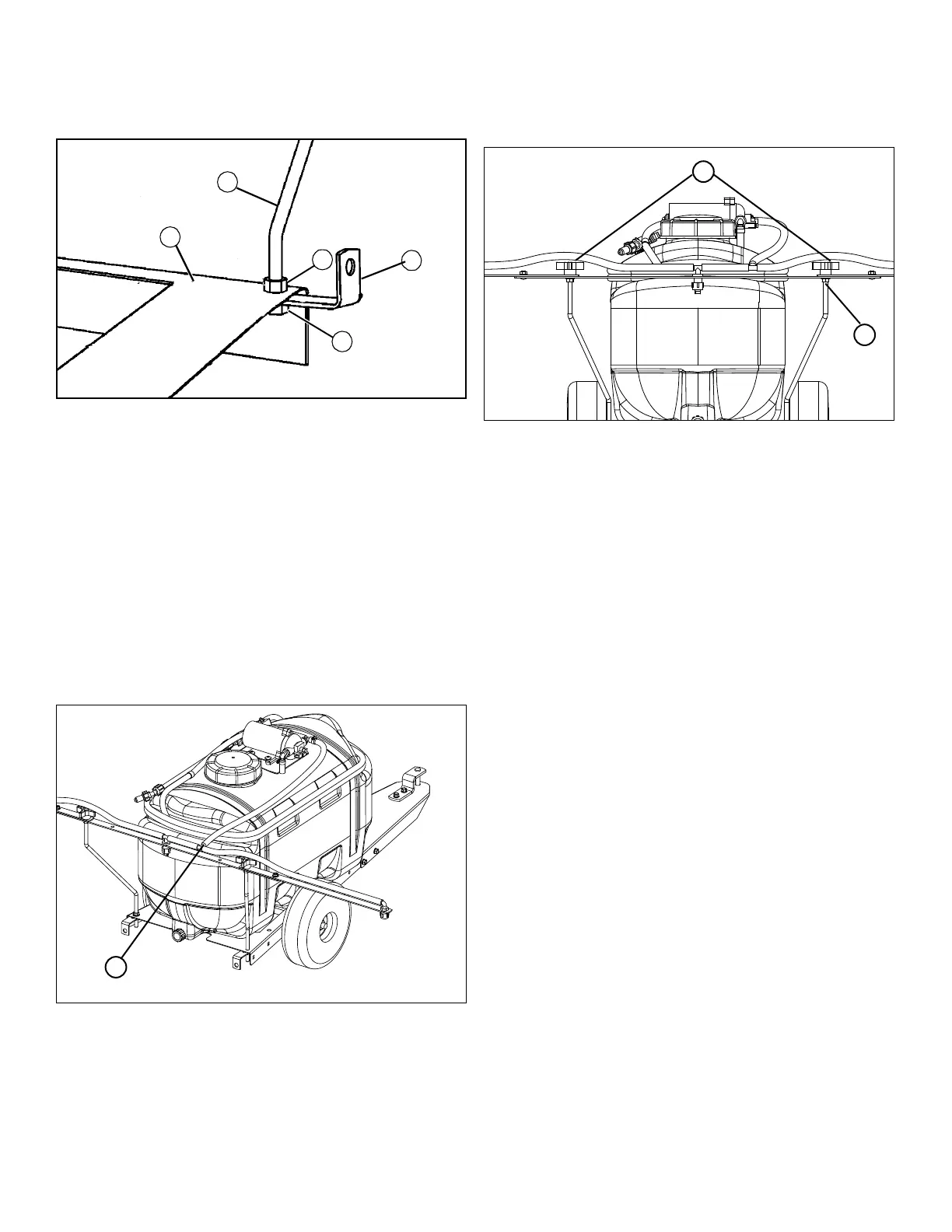

Install Boom Assembly
1. Install 3/8 in. ange nut (A) on boom support rod (B).
Repeat for opposite side boom support rod.
NOTE: Install L-bracket (D) facing toward rear of
assembly and as far rearward as possible, as shown
Boom assembly should be installed with hose
connection tee facing forward.
2. Install entire spray boom and support rods through rear
holes in tank frame (C).
3. Install L-bracket (D), and a second 3/8 in.
ange nut (E). Repeat for opposite side.
Boom support hardware:
• (4) 3/8 in. Flange Nuts
4. Do not tighten boom hardware until entire boom is in
place.
5. Connect tank hose (F) onto tee on boom hose.
F
B
A
