LP19478 LP19479 (10/5/2018) 7 15 & 25 GALLON TOW BEHIND SPRAYER
Assembly
Identify Parts and Assemble
15 & 25 Gallon Standard Tow Behind
Parts in Hardware Bag
Description Qty
Hitch Clevis 1
L-Bracket 2
Locking Collar 2
Hitch Pin, 1/2 x 2-1/2 in. 1
Spring Locking Chip 1
Flat Washer 2
Axle Spacer 2
Bolt, Flange, 5/16th in. 6
Flange Nut, 3/8 in. 4
Wire Clip 2

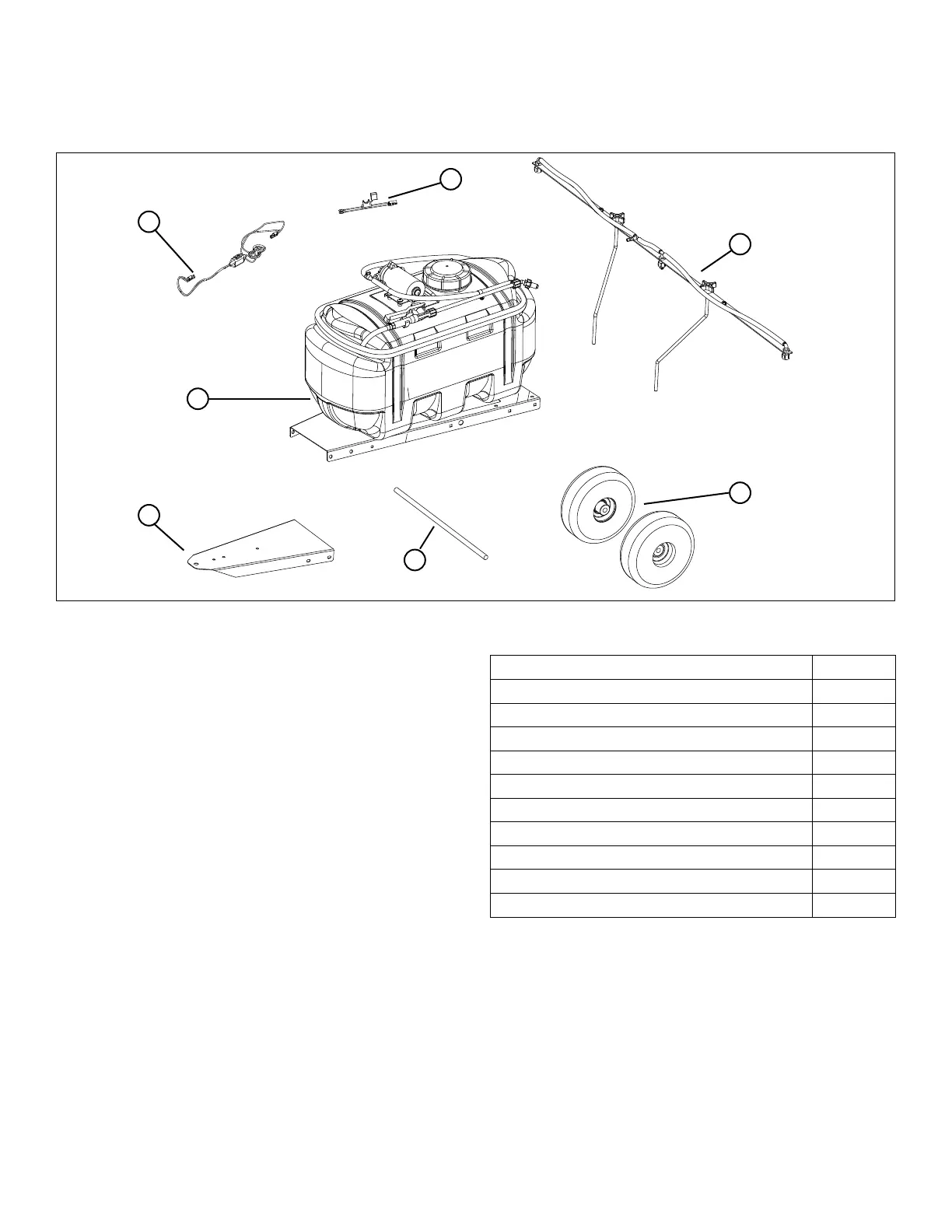

Parts in Kit
A- Sprayer Base Unit (Tank with pump and hoses
attached)
B- Boom Assembly (25 gallon assembly shown)
C- Axle
D- Wiring Harness Switch
E- Hitch Frame
F- (2) Wheels
G- Wire Harness Battery
D
G
B
F
C
E
A
