LP19478 LP19479 (10/5/2018) 8 15 & 25 GALLON TOW BEHIND SPRAYER
Assembly

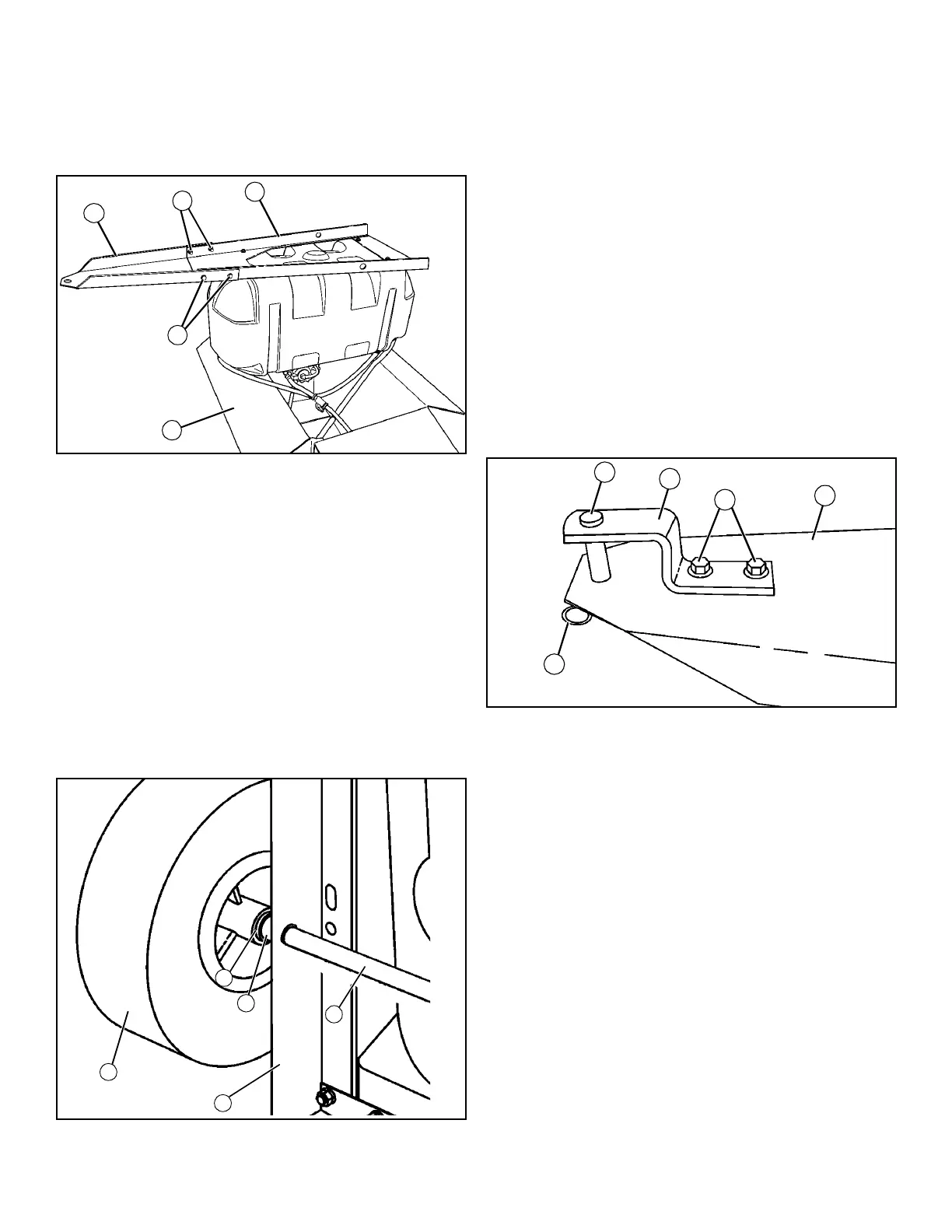

Attach Hitch Frame
1. Remove hardware bags and wiring harness from
inside tank.
2. Place tank and frame assembly, with tank frame (A)
on top, onto top of shipping box (B) for installing hitch
frame.
NOTE: When installing hardware, always install with
nuts to the inside.
3. With tank frame (A) mounted to the inside of the hitch
frame (C), align mounting holes on tank frame to
mounting holes in hitch frame.
4. Install and tighten hardware (D):
• (4) 5/16 x 5/8 in. Flange Bolts
• (4) 5/16 in. Flange Nuts
A
D
C
E
B
C
D
D
A
B
Install Hitch Assembly
1. Install hitch clevis (A) on top of hitch frame (B) with
hitch pin (C) and spring locking clip (D).
2. Install and tighten hardware (E):
• (2) 5/16 x 5/8 in. Flange Bolts
• (2) 5/16 in. Flange Nuts
C
A
D
B
E
Install Wheels
NOTE: Install wheels so tire valve stems face to the
outside of the sprayer frame.
1. Install and center axle (A) into rear holes of tank frame
(B).
2. Install axle spacer (C) and at washer (D).
3. Install wheel (E), and then secure outside with locking
collar.
4. Repeat for opposite wheel. Wheel hardware:
• (2) Axle Spacers (C)
• (2) Flat Washers (D)
• (2) Locking Collar
5. Tighten locking collars with a hex key wrench.
6. Lubricate wheel bearing grease ttings with
recommended grease.
7. Set sprayer on wheels.
