John Lewis Anna cot - Assembly Steps; Step 1: Assemble Fixed Side; Step 2: Attach Crossbeam

3
Step 1
Step 2

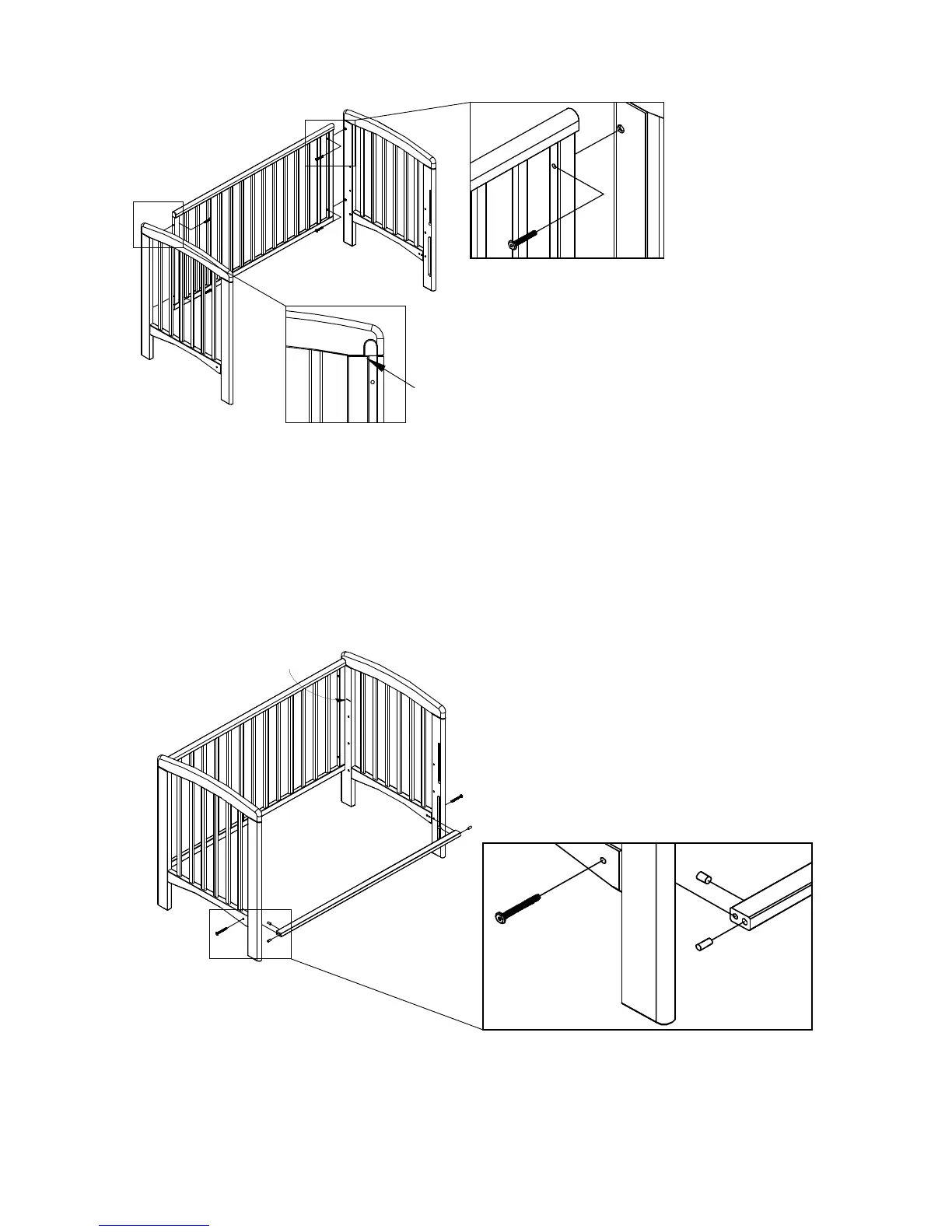

Assemble the fixed side (part B) to the cot ends (part A) using four 50 mm bolts (fixing 1). Note
the fixed side should be assembled to the cot end legs on the side without dropside grooves and
side’s top overhang should be inside cot. Do not tighten bolts at this step.
Part A
Part A
Part B
Fixing 1
Overhang should be
inside cot.
Attach crossbeam (part E) to the cot ends (part A) inserting barrel nuts (fixing 3) and wooden
dowels (fixing 5) into the crossbeam. Then insert bolts (fixing 2) through the holes in the
cot ends into barrel nuts (fixing 3). Do not tighten bolts.
WARNING! op
surface must not be higher
than this mark!
The t of the mattress
Part A
Part A
Part B
Part E
Fixing 2
Fixing 5
Fixing 3
