Johnson Controls E-Link User Manual

E-Link Gateway Installation Instructions16
UI7
TB7
031-01065-xxx
BLUE
WHITE
SHIELD
Jumper
BLUE
WHITE
(Open)
BLUE
WHITE
TB1
NOTE:
If the EPROM used in the board is dated prior
to 11/2000, the chiller ID is fixed at 0.
If the EPROM used is dated after 11/2000, the chiller
ID is software selectable through the micro panel
SHIELD
BLUE
WHITE
(Open)
031-02050-000
TB1
TB6
NOTE: The chiller ID is software-selectable through the
micro panel keypad. Set the Chiller ID to 0 to make network
address to 1.
BLUE
WHITE
SHIELD
BLUE
WHITE
(Open)
FIG:ELnk _YrkTlk Equipment Connections

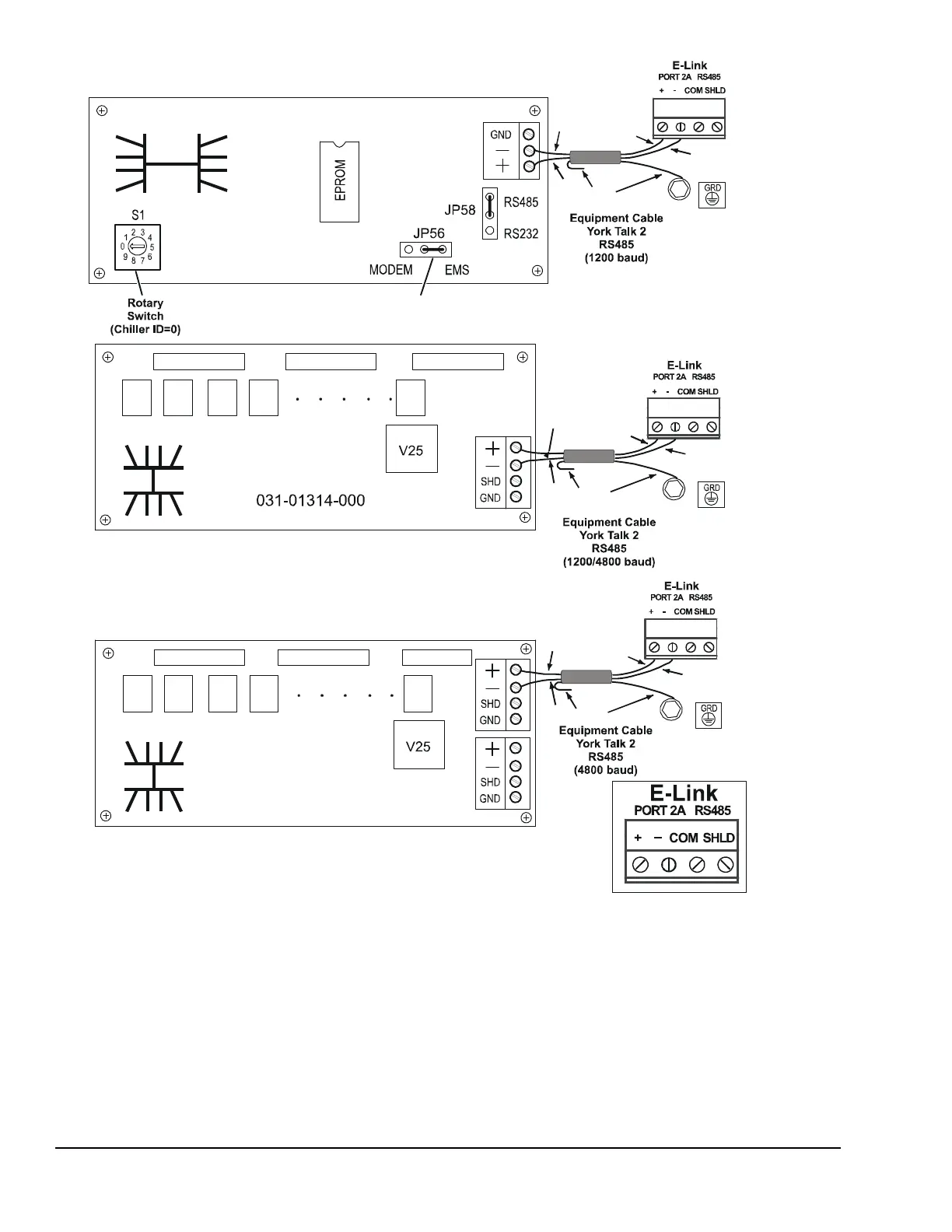

Figure 17: E-Link Gateway to YORK Talk II Equipment Connections
(See Table 1 for board cross-reference.)

Johnson Controls E-Link Specifications

General

Brand	Johnson Controls
Model	E-Link
Category	Gateway
Language	English
