OUTDOOR UNITS
TC-16001-rev.5
2-5
Model: (H,Y,C)VAHP036B21S to (H,Y,C)VAHP060B21S
inch [mm]

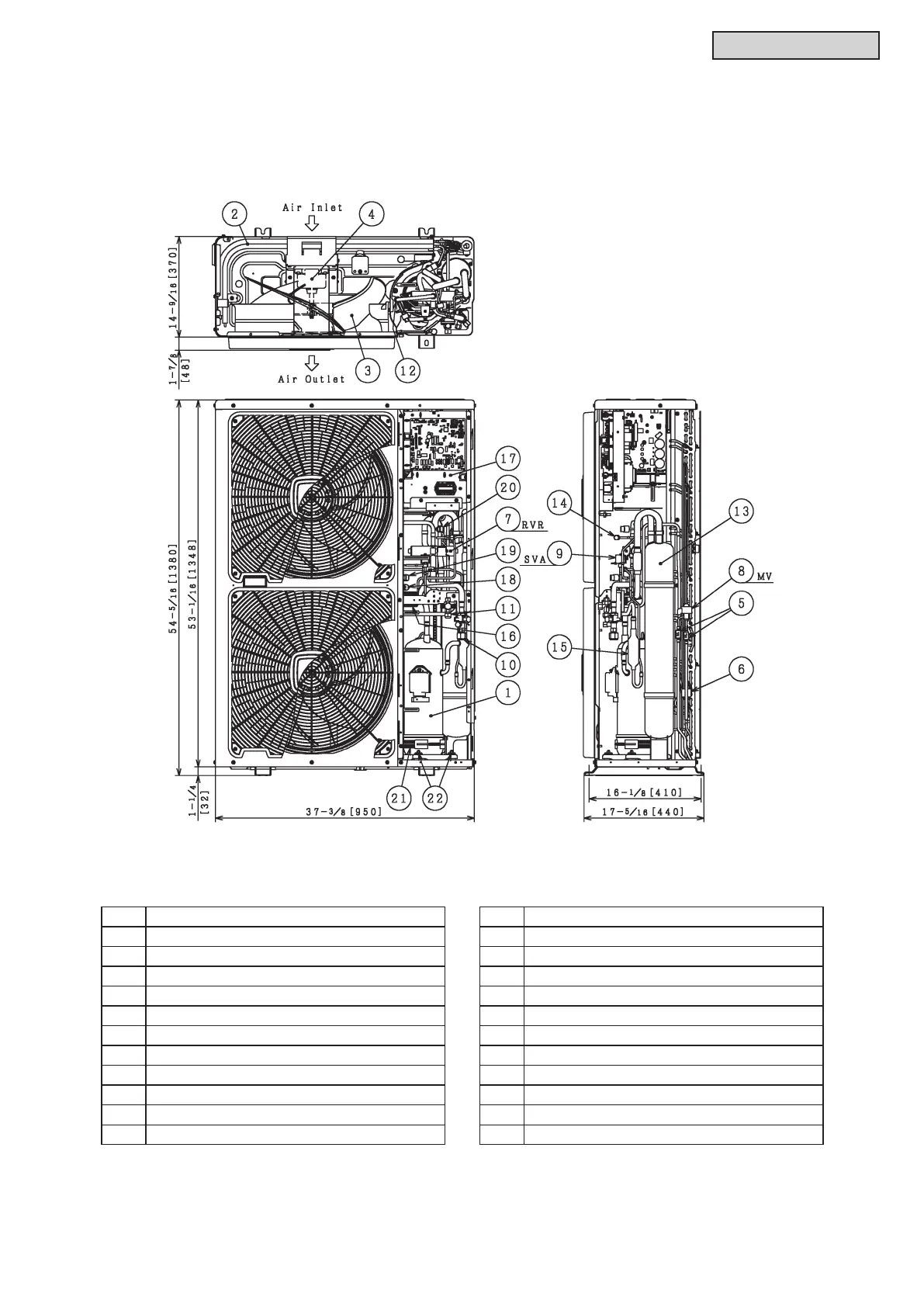

2.5 Structure
No. Part Name
1 Compressor (Inverter)
2 Heat Exchanger
3 Propeller Fan (2 pcs.)
4 Fan Motor (2 pcs.)
5 Strainer (2 pcs.)
6 Distributor
7 Reversing Valve
8 Electronic Expansion Valve
9 Solenoid Valve
10 Stop Valve (Gas)
11 Stop Valve (Liquid)
No. Part Name
12 Check Valve
13 Accumulator
14 Access Port
15 Oil Separator
16 Capillary Tube
17 Electrical Control Box
18 High Pressure Switch for Protection
19 High Pressure Sensor
20 Low Pressure Sensor
21 Crankcase Heater
22 Vibration Absorber (4 pce.)
To Next Page
