Johnson Controls IFC-200 - Monitor Module Types; Dual Monitor Module (M300 DJ); Miniature Monitor Module (M301 MJ); 4-20 mA Monitor Module (M300 MJ-4-20)

34 Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009
Monitor Modules Description
6.1.3 Dual Monitor Module
M300DJ is similar to the M300MJ, except intended for use in intelligent two-wire systems
providing two independent Style B (Class B) IDCs at two separate, consecutive addresses.

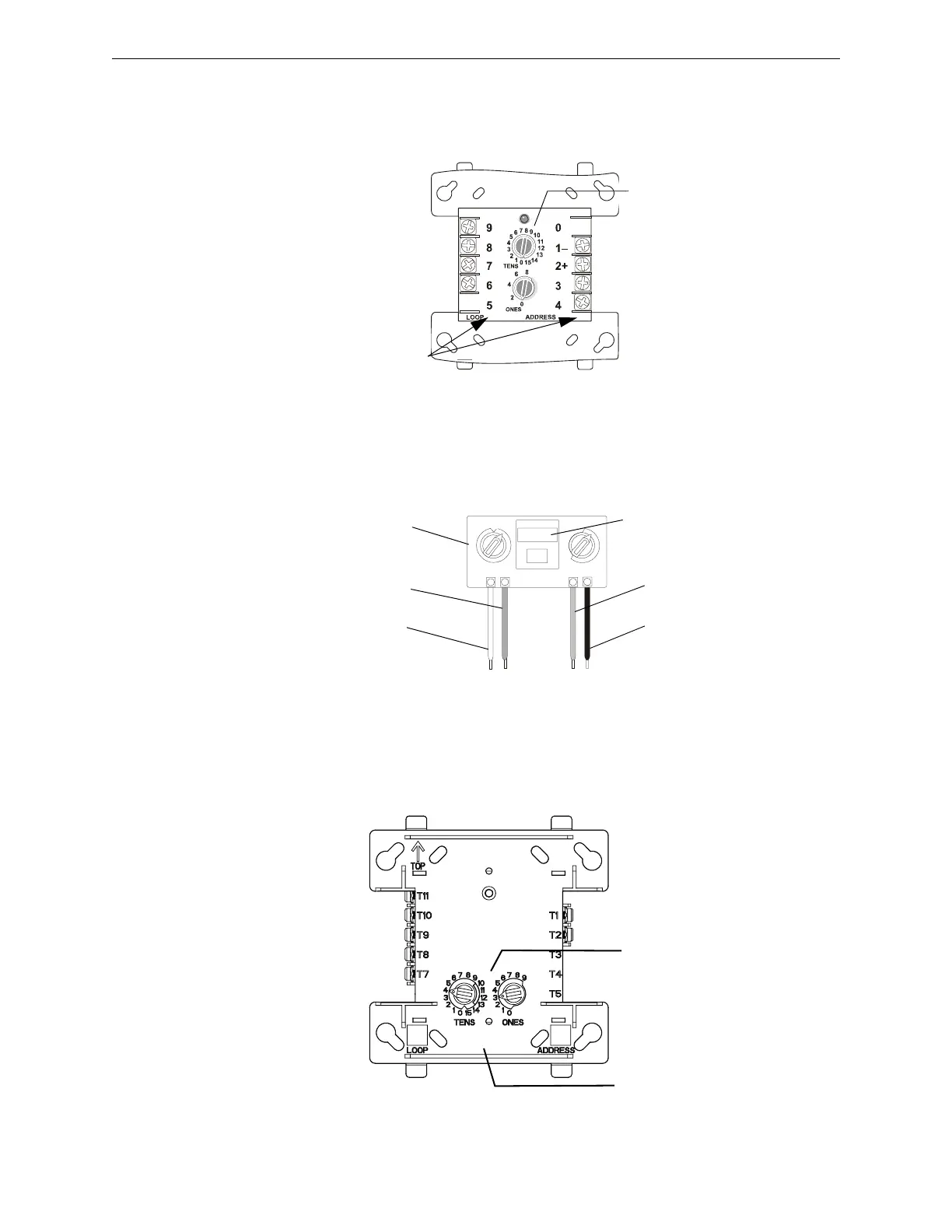

Figure 6.3 Dual Monitor Module
6.1.4 Miniature Monitor Module
M301MJ is intended to monitor a Style B (Class B) IDC; it is offered in a smaller package for
mounting directly in the electrical box of the device being monitored.
Figure 6.4 Miniature Monitor Module
6.1.5 M300MJ-4-20 4-20mA Monitor Module
M300MJ-4-20 is intended for use in intelligent, two-wire systems, allowing Control Panels to
interface and monitor two-wire or three-wire sensors with a 4-20mA signal output.
Figure 6.5 M300MJ-4-20 4-20mA Monitor Module
SLCDualMod-simplified.wmf
Rotary
Switches
SLC–
SLC+
9 H–
8 H+
7L+
6L–
Address +1
{
Base Address {
Areas used to record the device
address and SLC number.
0
10
11
12
13
14
15
ADDRESS
LOOP
1
2
3
4
TENS
ONES
6
7
8
9
5
0
1
2
3
4
6
7
8
9
5
FMM-101.cdr
Label – Use to record the
device address and SLC
number.
Rotary
Switches
IDC (+) Violet
SLC (+) Red
IDC (-) Yellow
SLC (-) Black
SLC (-)
SLC (+)
24 VDC (-)
24 VDC (+)
To 4-20mA
Sensing Device
{
(-)
Sense
(+)
Rotary Switches
Area used to record the device
address and SLC number.
T9 is only used in three-wire
sensor applications. For two-
wire applications, T8 is used
for negative (-) wiring.
{
Non-Resettable
