Page 2 of 4 — JCI-6724 • 05/24/04
RELAY CONTACT RATINGS
for both M300CJ and M300RJ
PRODUCT LINE INFORMATION
M300CJ Intelligent Addressable Control Module.
M300RJ Intelligent Addressable Relay Module.
A2143-20 Capacitor, required for Class A (Style Z) opera-
tion of speakers.
SMB500 Optional Surface-Mount Backbox.
CB500 Control Module Barrier — required by UL for
separating power-limited and non-power limited
wiring in the same junction box as M300CJ.
noitpircseDdaoLnoitacilppA
mumixaM
egatloV
tnerruC
gnitaR
evitsiseRdedoC-noNCDV03A0.3
evitsiseRdedoCCDV03A0.2
evitsiseRdedoC-noNCDV011A9.0
evitsiseRdedoC-noNCAV521A9.0
)sm5=R/L(evitcudnIdedoCCDV03A5.0
)sm2=R/L(evitcudnIdedoCCDV03A0.1
)53.0=FP(evitcudnIdedoC-noNCAV521A5.0
Circuit (NAC). The LED blinks with each poll received. On
command, it activates its internal relay. The M300CJ super-
vises Class B (Style Y) or Class A (Style Z) notification or
control circuits.
Upon code command from the panel, the M300CJ will dis-
connect the supervision and connect the external power sup-
ply in the proper polarity across the load device. The discon-
nection of the supervision provides a positive indication to
the panel that the control relay actually turned ON. The ex-
ternal power supply is always relay isolated from the com-
munication loop so that a trouble condition on the external
power supply will never interfere with the rest of the system.
Rotary switches set a unique address for each module. The
address may be set before or after mounting. The built-in
TYPE CODE (not settable) will identify the module to the
control panel, so as to differentiate between a module and a
sensor address.
SPECIFICATIONS for M300CJ
Normal operating voltage: 15 to 32 VDC.
Maximum current draw: 6.5 mA (LED on).
Average operating current: 350 µA direct poll (CLIP mode),
375 µA group poll (FlashScan® mode) with LED flashing.
External supply voltage (between Terminals T3 and T4):
maximum 80 volts (RMS or DC).
Drain on external supply: 2 mA maximum (using internal
EOL relay).
EOL resistance: 47K ohms.
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% non-condensing.
Dimensions: 4.5" (11.43 cm) high x 4" (10.16 cm) wide x
1.25" (3.175 cm) deep. Mounts to a 4" (10.16 cm) square x
2.125" (5.398 cm) deep box.
SPECIFICATIONS for M300RJ
Normal operating voltage: 15 to 32 VDC.
Maximum current draw: 6.5 mA (LED on).
Average operating current: 230 µA direct poll (CLIP mode),
255 µA group poll (FlashScan® mode) with LED flashing.
EOL resistance: not used.
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% non-condensing.
Dimensions: 4.5" (11.43 cm) high x 4" (10.16 cm) wide x
1.25" (3.175 cm) deep. Mounts to a 4" (10.16 cm) square x
2.125" (5.398 cm) deep box.
6724mt1.wmf
6724mt2.wmf

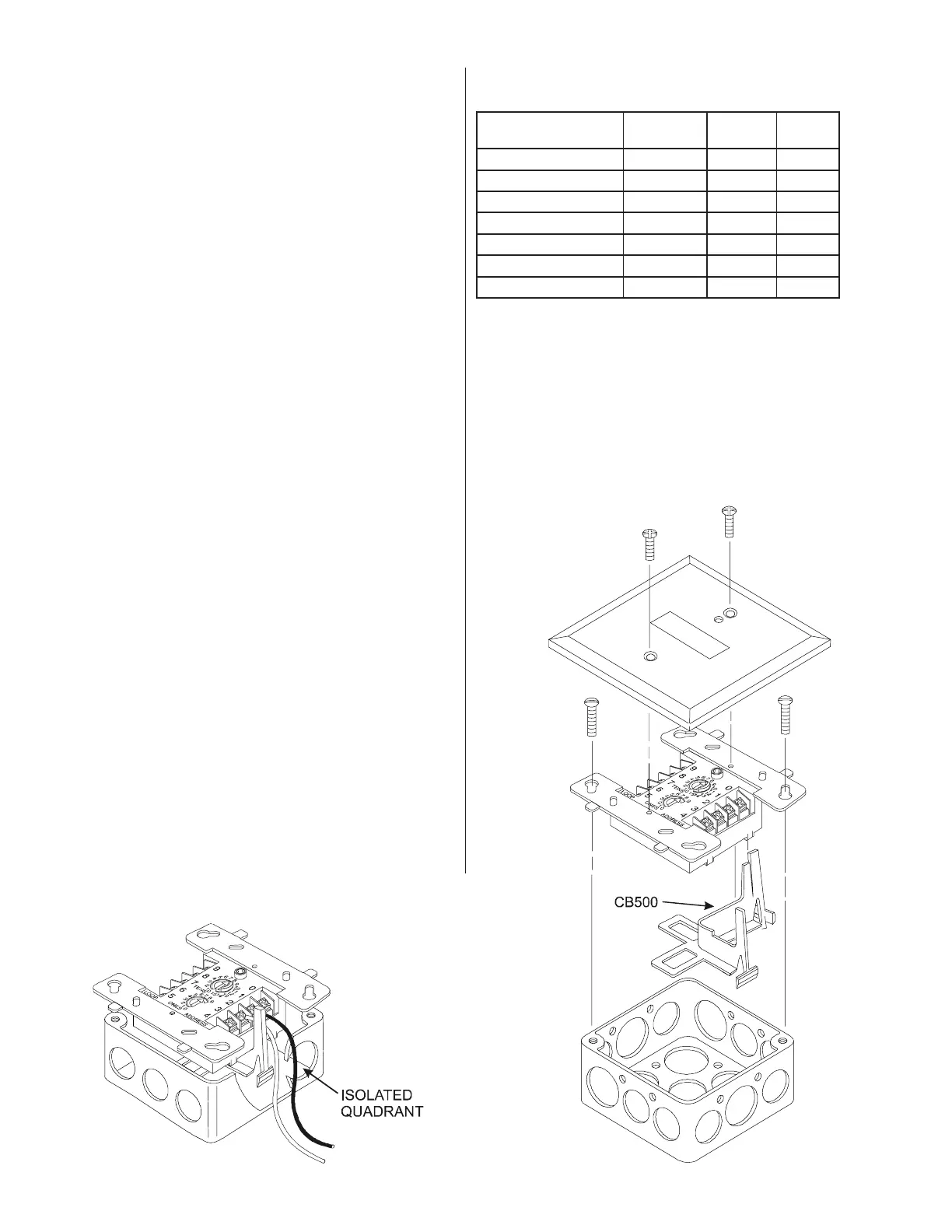

MOUNTING
DIAGRAMS
Note CB500 Module Barrier,
which creates isolated quadrant.
6724rate.tbl
