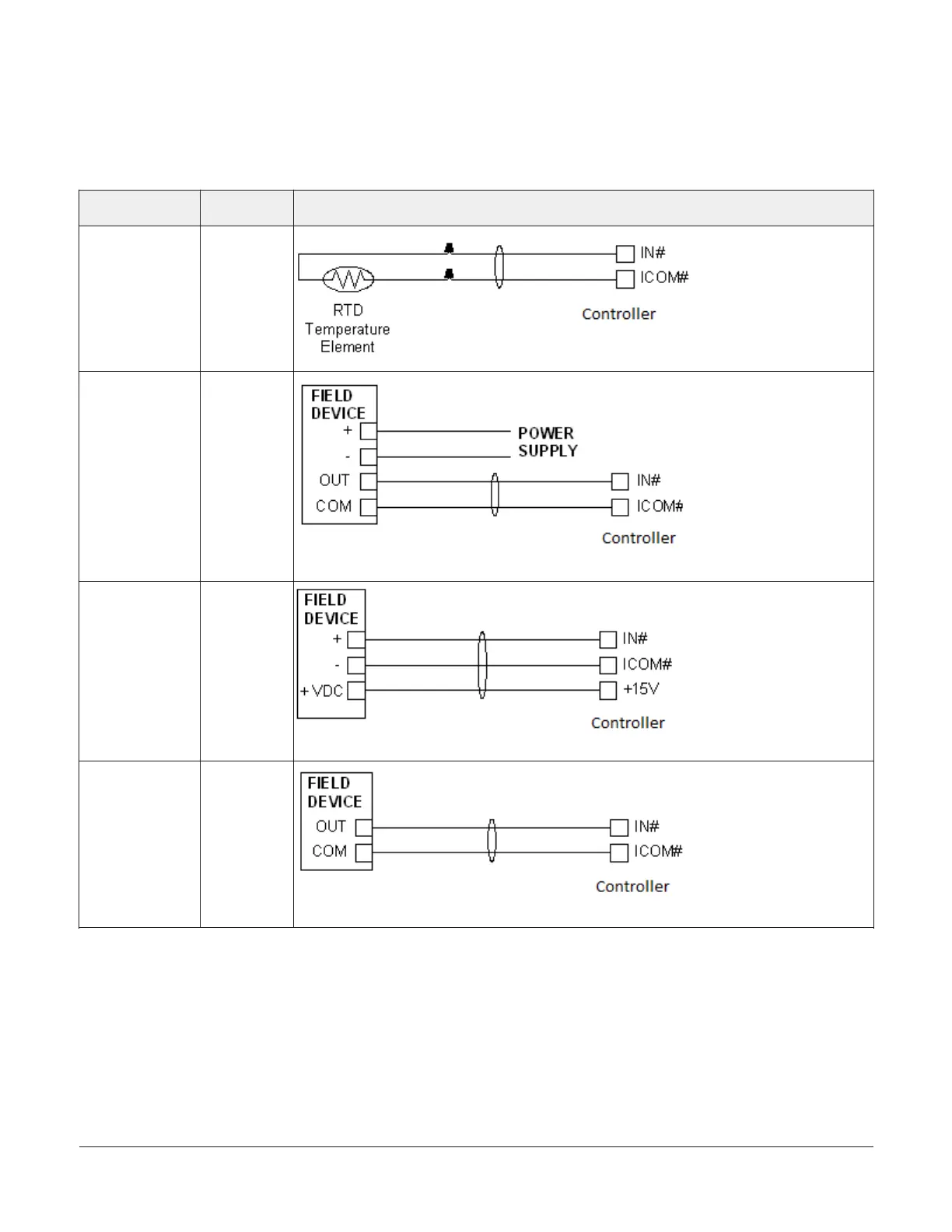

Termination diagrams
A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to the
controllers. See the figures in this section for the applicable termination diagrams.
Table 8: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
Temperature
Sensor
UI
Voltage Input -
External Source
UI
Voltage Input -
Internal Source
UI
Voltage Input
(Self-Powered)
UI
M4-CGM General Purpose Application Controllers Installation Guide12
