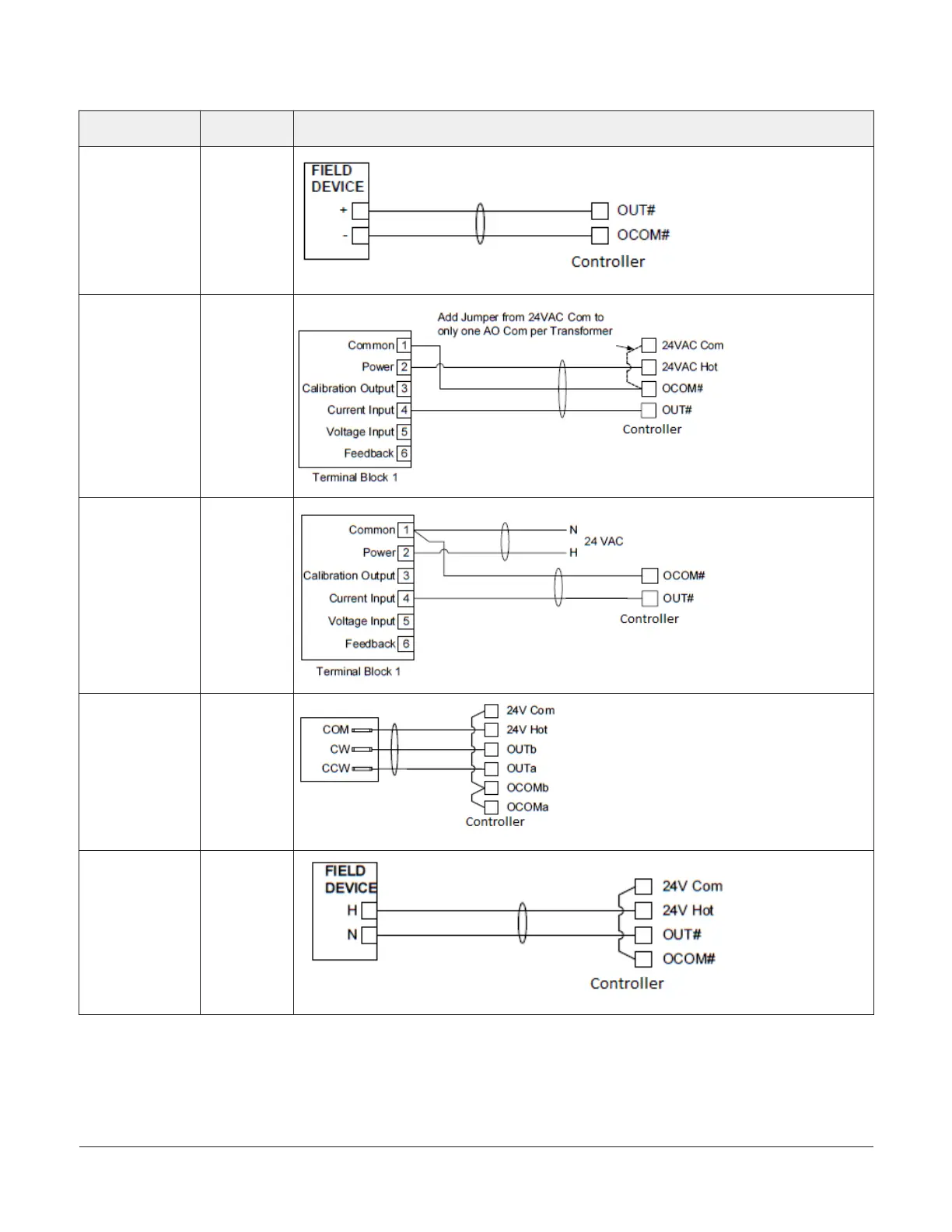

Table 6: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
Analog Output
(Current)
AO
4–20 mA Output to
Actuator
AO
4–20 mA Output to
Actuator
AO
Incremental
Control to
Actuator (Switch
Low, Externally
Sourced)
BO
24 VAC Binary
Output (Switch
Low, Externally
Sourced)
BO
FAC4911 Advanced Application Field Equipment Controller Installation Guide 15
