Johnson Controls Metasys FAC4911 User Manual

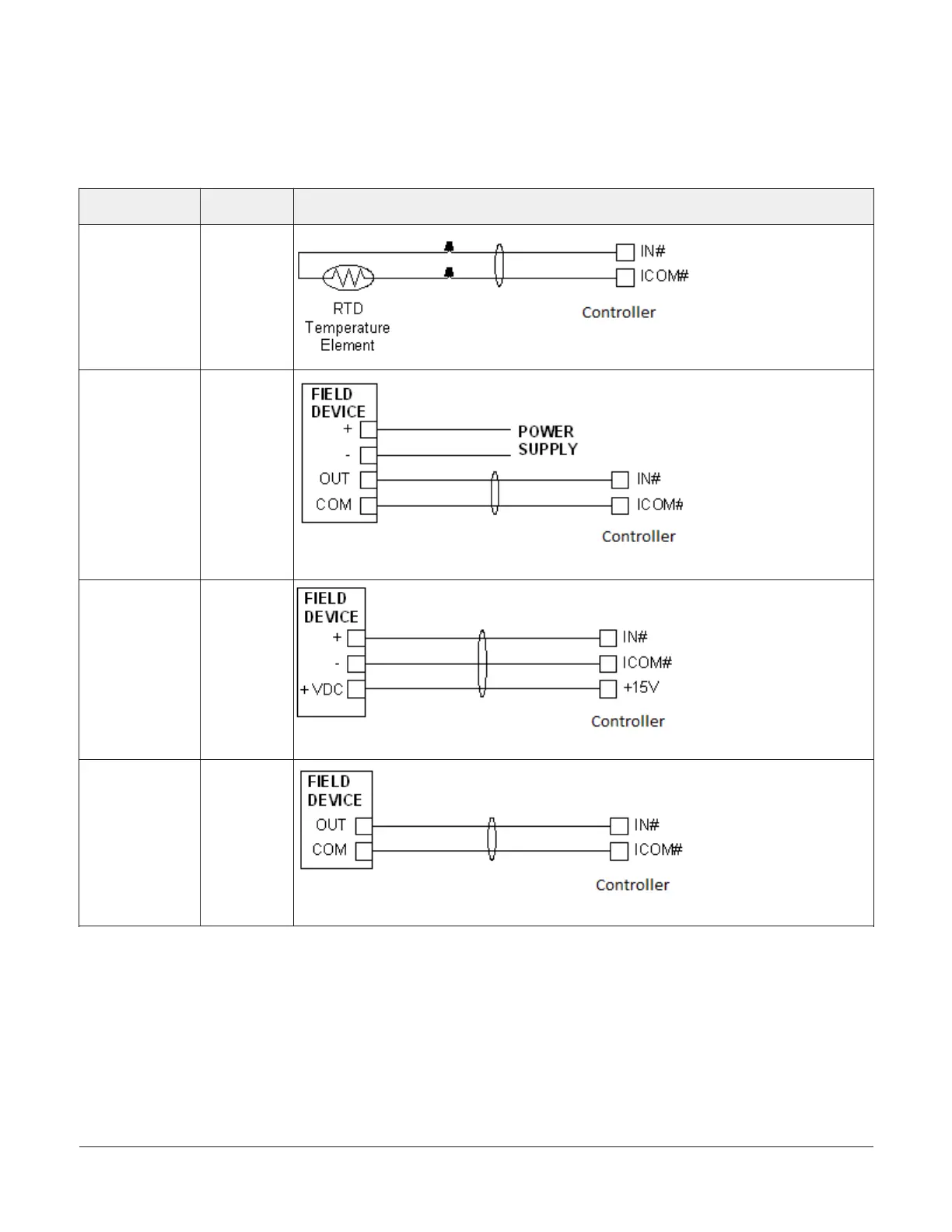

Termination diagrams
A set of Johnson Controls termination diagrams
provides details for wiring inputs and outputs to the
controllers. See the figures in this section for the
applicable termination diagrams.
Table 6: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
Temperature
Sensor
UI
Voltage Input -
External Source
UI
Voltage Input -
Internal Source
UI
Voltage Input
(Self-Powered)
UI
FAC4911 Advanced Application Field Equipment Controller Installation Guide12
